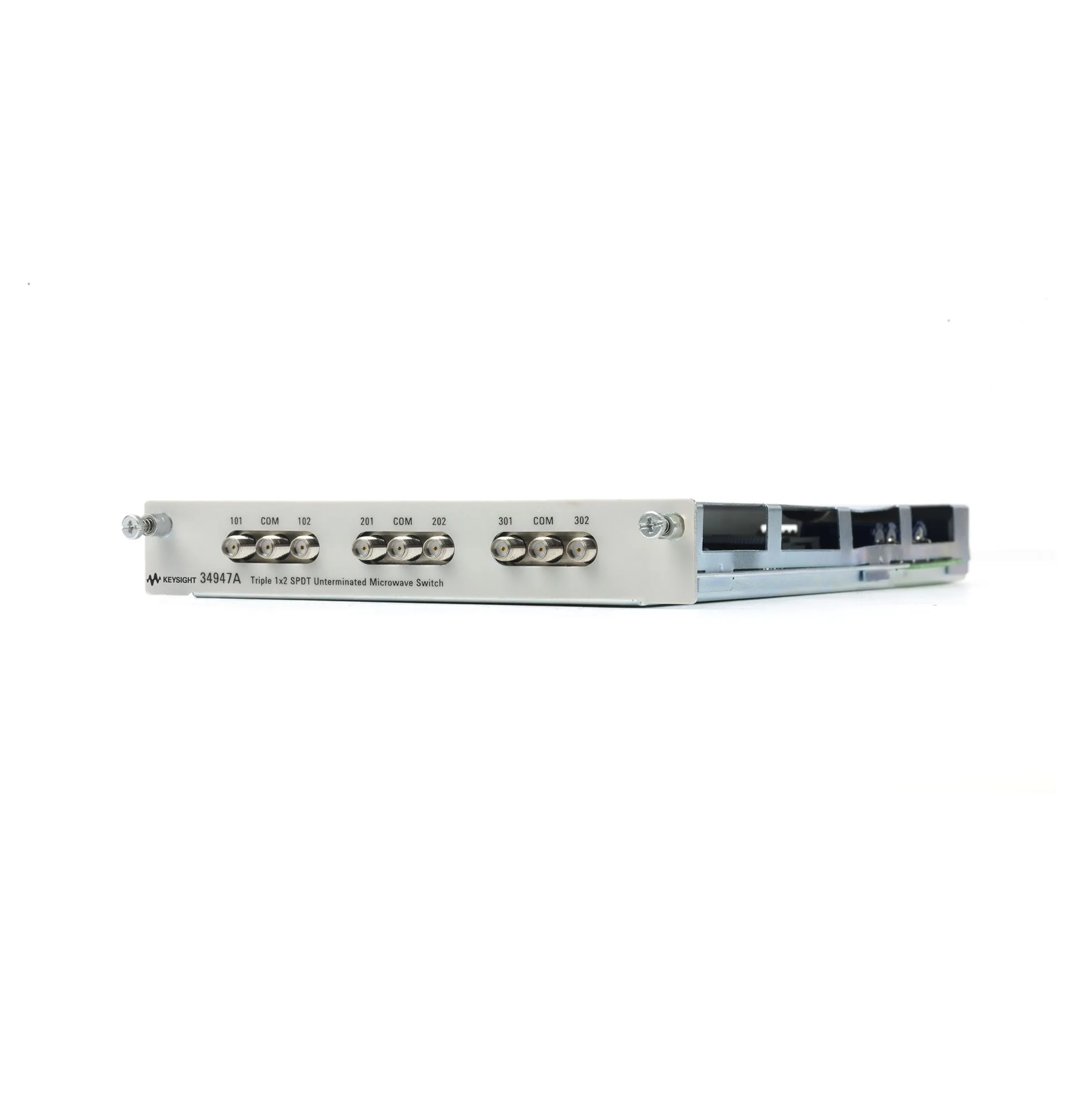

Keysight 34947A Microwave Switch Module
Request a quote
Keysight 34947A microwave switch module with three SPDT unterminated switches for the 34980A unit, supporting frequencies up to 26.5 GHz with excellent insertion loss and VSWR performance.
Product details
| Model | 34947A |
| Manufacturer | Keysight |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The Keysight 34947A is a microwave switch module designed for the 34980A Multifunction Switch/Measure Unit. It provides bi-directional switching capabilities for test signals ranging from DC to 26.5 GHz, featuring three independent 1x2 SPDT unterminated switches. The module is ideal for RF and microwave measurement applications requiring flexible signal routing.
Key Features
- Three SPDT unterminated switches
- Frequency options: 4 GHz, 20 GHz, or 26.5 GHz
- Low insertion loss and excellent VSWR specifications
- Maximum switching power: 50W
- SMA connectors for standard 50Ω impedance
- External switch mounting option
Applications
- Microwave signal switching and routing
- Multi-band receiver and transmitter testing
- RF component characterization and measurement
- Automated test system integration
Specifications
| 34947A | Triple 1x2 SPDT Unterminated< 0.42dB to < 0.69dB4 GHz or 20 GHz< 1.15 to < 1.30 |
