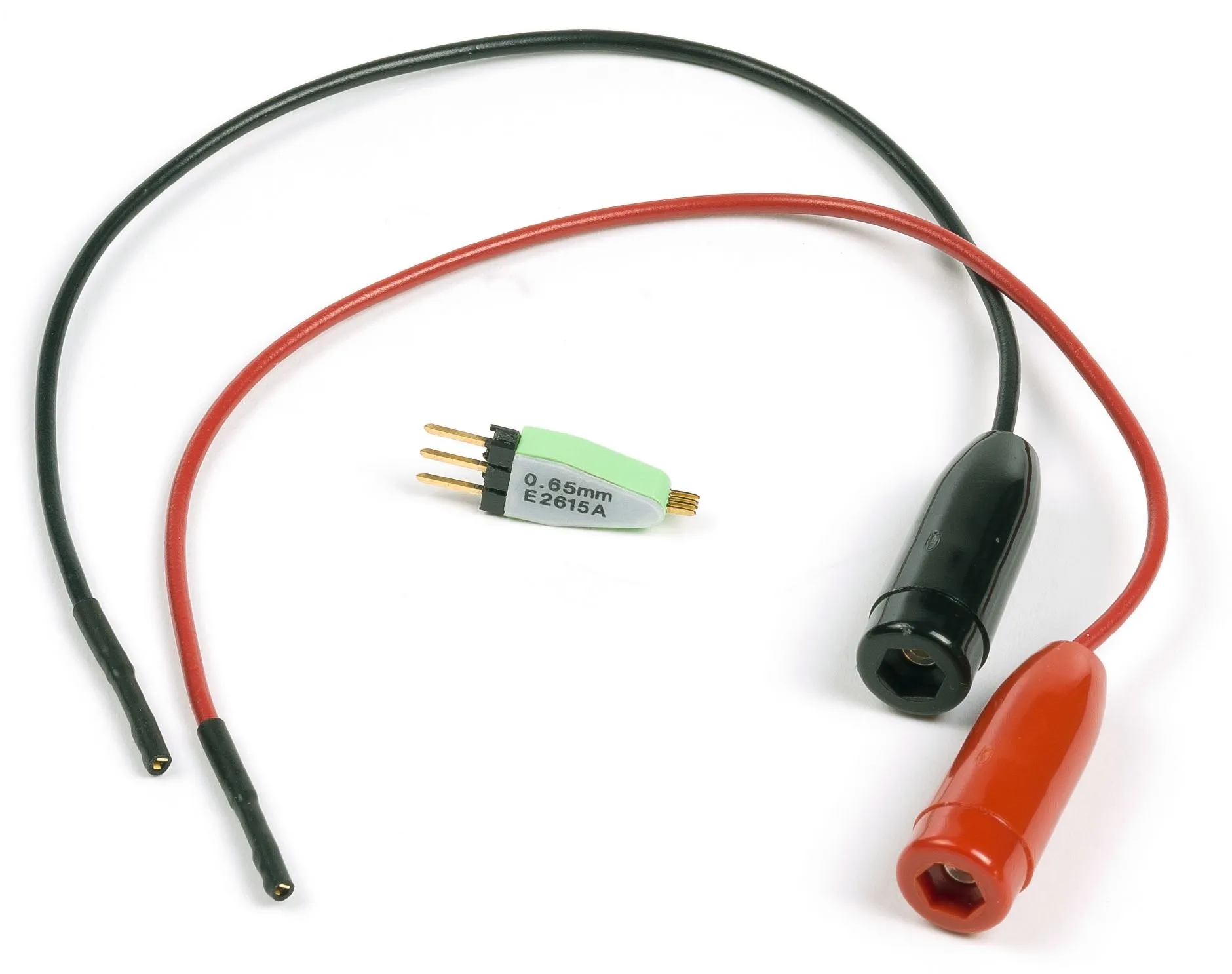

Keysight 34151A 3-signal wedge probe for 0.65mm QFP and PQFP components with included DMM test lead adapters.
Product details
| Model | 34151A |
| Manufacturer | Keysight |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The Keysight 34151A is a 3-signal wedge probe designed for probing fine pitch thin quad flat package (TQFP) and plastic quad flat package (PQFP) components at 0.65mm pitch. It enables precise electrical testing of advanced integrated circuits with minimal contact pressure and superior signal integrity.
Key Features
- 0.65mm pitch QFP 3-signal wedge probe for TQFP and PQFP components
- Includes red and black 0.025" pin to 2mm DMM test lead adapters (6" length)
- Rated for voltages up to 30 Vrms, 42.4 Vpk, and 60 VDC
Applications
- Testing fine-pitch surface-mount components in PCB assembly and validation
- Probing TQFP and PQFP packages in development and manufacturing
- Electrical characterization and debugging of semiconductor devices
Included Accessories
- 0.65mm QFP 3-signal wedge probe
- 0.025" pin to 2mm DMM test lead adapter (black, 6")
- 0.025" pin to 2mm DMM test lead adapter (red, 6")
Specifications
| Probe Type | 3-Signal Wedge Probe |
| QFP Pitch | 0.65mm |
| Compatible Components | TQFP and PQFP packages |
| Test Lead Adapters | 0.025" pin to 2mm DMM (red and black, 6" each) |
| Max Voltage | 30 Vrms, 42.4 Vpk, 60 VDC |
