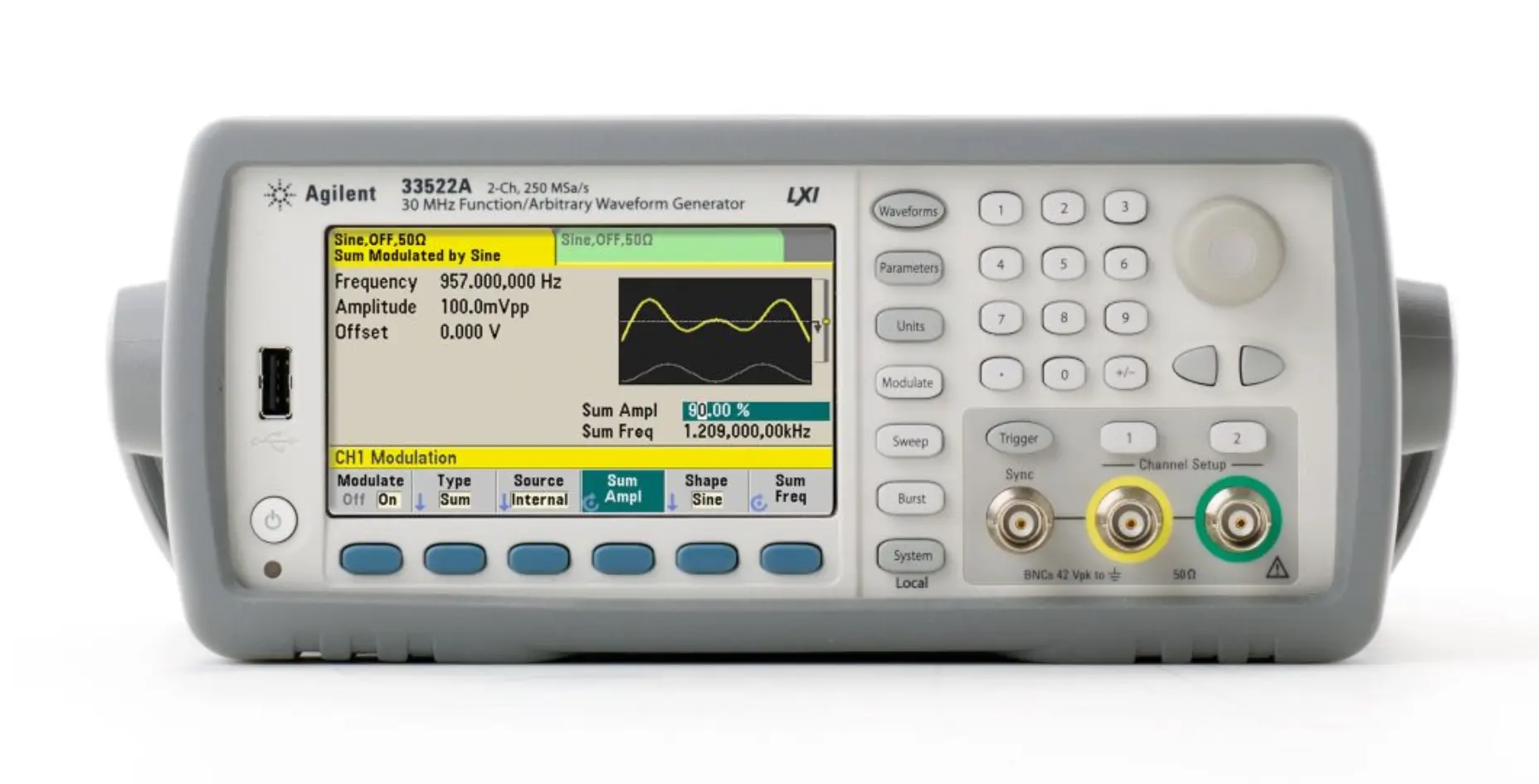

Keysight 33522A Dual-Channel Waveform Generator
Request a quote
Keysight 33522A dual-channel 30 MHz waveform generator with Trueform technology, flexible channel coupling, and differential output options for complex signal testing.
Product details
| Model | 33522A |
| Manufacturer | Keysight |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
Keysight 33522A is a dual-channel 30 MHz function and arbitrary waveform generator featuring exclusive Trueform signal generation technology. This model offers unparalleled flexibility with frequency and amplitude coupling, differential channel operation, and combined output capabilities. The 33522A is particularly suited for applications where testing devices relies on the precise timing and interaction of two distinct signals.
Key Features
- Dual-channel 30 MHz bandwidth with flexible coupling options
- Exclusive Trueform technology for superior signal integrity and low harmonic distortion
- Less than 40 ps jitter with less than 0.04% total harmonic distortion
- 250 MSa/s sampling rate with 16-bit resolution
- True point-by-point arbitrary waveforms for accurate user-defined signals
- Standard and optional 16 MSa/channel arbitrary waveform memory
- Frequency and amplitude coupling between channels
- Differential and combined output modes
- Large color graphical display for intuitive operation
- TCXO timebase standard with optional OCXO for ultra-high stability
- USB and LAN (LXI-C) connectivity standard with optional GPIB
- BenchVue software enabled for PC-based control
Applications
- Medical device testing and characterization
- RF and microwave signal generation
- Power electronics and converter testing
- Communication system validation
- Advanced research and development laboratories
Specifications
| Channel/Port Count | 2 |
| High Frequency (range) | 10MHz <= 100MHz |
