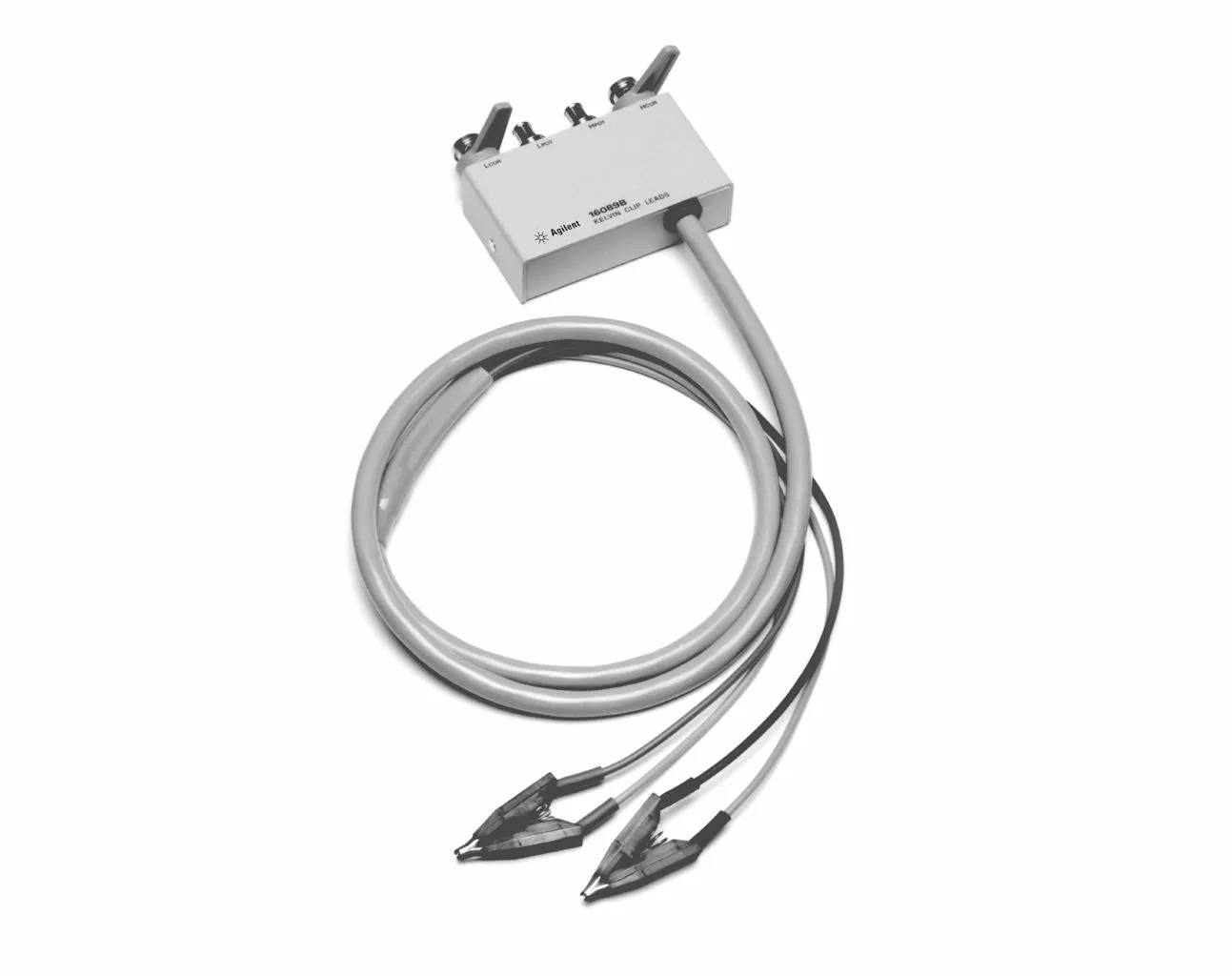

Keysight 16089B Test Fixture
Request a quote
Keysight 16089B test fixture with insulated Kelvin clips enables measurement of odd-shaped components with impedance analyzers from 5Hz to 100kHz.
Product details
| Model | 16089B |
| Manufacturer | Keysight |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The Keysight 16089B is a test fixture designed for measuring components with unconventional shapes that cannot be accommodated by standard measurement fixtures. It features two insulated Kelvin clip terminals for accurate four-wire measurements with Keysight impedance analyzers.
Key Features
- Two insulated Kelvin clips for precision measurement
- Compatible with Keysight impedance analyzers (4192A, 4194A, 4263B, 4278A, 4284A, 4285A, E4980A)
- Frequency range: 5Hz to 100kHz
- DC bias capability: -42V to +42V
- BNC 4 terminal-pair connector
Applications
- Component impedance measurement
- Testing odd-shaped or specialized components
- Laboratory and production testing
Specifications
| Frequency Range | 5Hz to 100kHz |
| DC Bias | -42V to +42V |
| Operating Temperature | 0 to 55°C |
| Terminal Diameter | 7.9mm or less |
| Cable Length | Approx. 0.94m |
| Terminal Connection | BNC, 4 terminal-pair |
