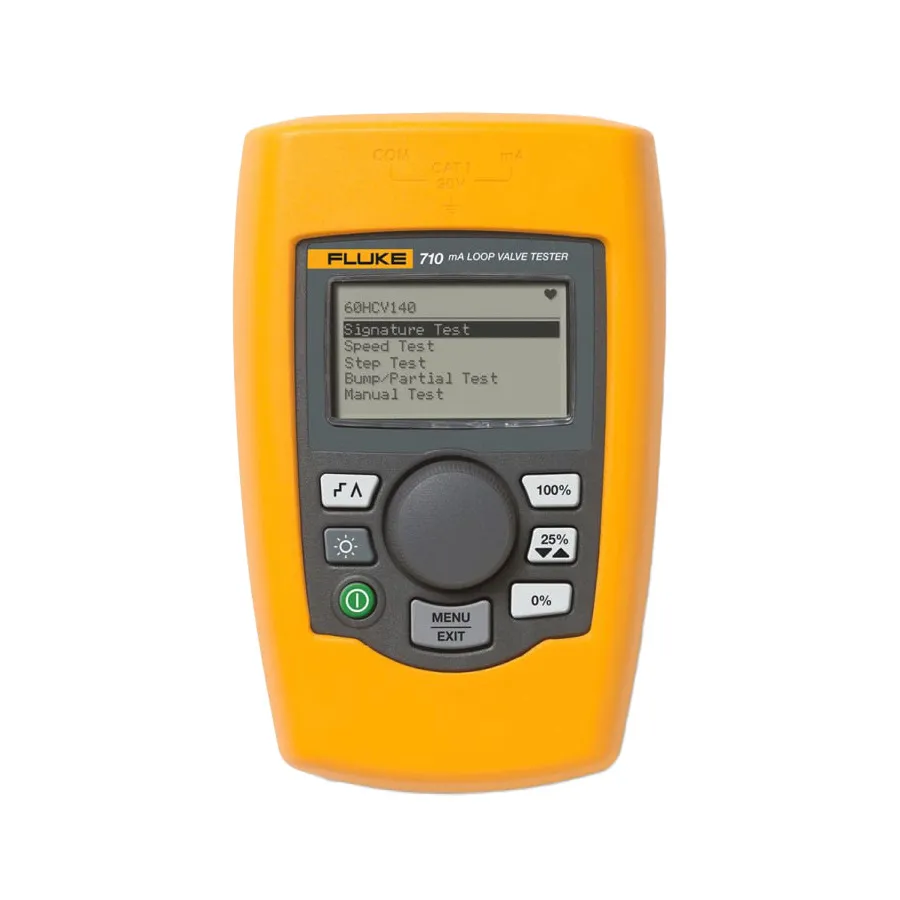

Fluke FLUKE-710 Loop Valve Tester
Request a quote
Fluke FLUKE-710 valve tester delivers Good, Marginal, or Bad assessment of control valve performance with 0.01% accuracy, built-in HART modem, and portable battery operation.
Product details
| Model | FLUKE-710 |
| Manufacturer | Fluke |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The Fluke 710 is a portable loop valve tester designed specifically for rapid assessment and troubleshooting of control valve performance. Using pre-programmed test procedures, it quickly diagnoses valve health and provides immediate diagnostic results, helping technicians make fast maintenance decisions in the field.
Key Features
- Valve test procedure delivers Good, Marginal, or Bad condition assessment
- 0.01% measurement or source value accuracy for reliable diagnostics
- Built-in HART modem for HART-enabled device communication
- Pre-installed test procedures with quick-check functionality
- 24 V DC loop power with mA measurement range of -25% to 125%
- 1 µA resolution on mA ranges and 1 mV on voltage ranges
- Quick-Set rotary encoder for intuitive operation
- Variable step and ramp time in seconds
- Simple two-wire connection for all measurements
- Compact, rugged design for field use
- Battery-powered with six AAA batteries and auto-shutdown feature
Applications
- Field assessment and troubleshooting of control valve performance
- Rapid valve health diagnostics to determine maintenance needs
- HART transmitter setup and diagnostics on valve positioners
- Process plant maintenance and condition monitoring
Included Accessories
- Stackable test lead set
- Extended tooth alligator clip set
- TP220 test probes
- AC280 SureGrip hook clips
- Lemo to USB upload/download cable
- ValveTrack software (free download)
- Soft carrying case
- Six AAA batteries (installed)
Specifications
