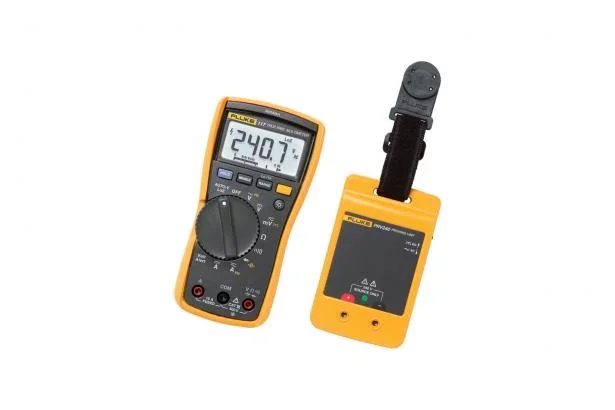

Fluke FLUKE-117/PRV240 Digital Multimeter with Proving Unit Kit
Request a quote
Fluke FLUKE-117/PRV240 bundle pairs the true-RMS multimeter with VoltAlert voltage detection and backlit display with the PRV240 proving unit for meter verification.
Product details
| Model | FLUKE-117/PRV240 |
| Manufacturer | Fluke |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
Fluke FLUKE-117/PRV240 kit combines the Fluke 117 Electrician's Digital Multimeter with the PRV240 Proving Unit. This bundle provides a complete solution for electrical testing and meter verification in commercial buildings, hospitals, schools, and other professional settings.
Key Features
- Fluke 117 Digital Multimeter with true-RMS measurement
- VoltAlert non-contact voltage detection technology
- AutoVolt automatic AC/DC voltage selection
- Low input impedance to prevent ghost voltage errors
- Large backlit white LED display for poor lighting conditions
- True-RMS for accurate non-linear load measurement
- 10A continuous measurement with 20A overload for 30 seconds
- Resistance, continuity, frequency, and capacitance functions
- Min/Max/Average with elapsed time recording
- Compact ergonomic design for one-handed operation
- Optional magnetic hanger (ToolPak) compatible for hands-free use
- CAT III 600V safety rating
- PRV240 Proving Unit for meter testing and verification
Applications
- Commercial building electrical testing and troubleshooting
- Hospital and medical facility maintenance
- School and educational facility electrical work
- Professional electrical service and repair
- Meter calibration and verification
Specifications
| Meter Type | True-RMS Digital Multimeter |
| Safety Rating | CAT III 600V |
| DC Voltage | 6V to 600V |
| AC Voltage | 6V to 600V |
| Resistance | 600 Ω to 40 MΩ |
| DC Current | 10A continuous, 20A overload (30 sec max) |
| AC Current | 10A continuous, 20A overload (30 sec max) |
| Frequency | 99.99 Hz to 50 kHz |
| Capacitance | 1 nF to 9999 μF |
| Display | Digital LCD with white LED backlight, 6000 counts |
| Operating Temperature | -10°C to +50°C |
| Battery Type | 9V Alkaline (IEC 6LR61) |
| Battery Life | 400 hours (without backlight) |
| Included Items | Fluke 117 Multimeter, PRV240 Proving Unit, test leads, carrying case |
