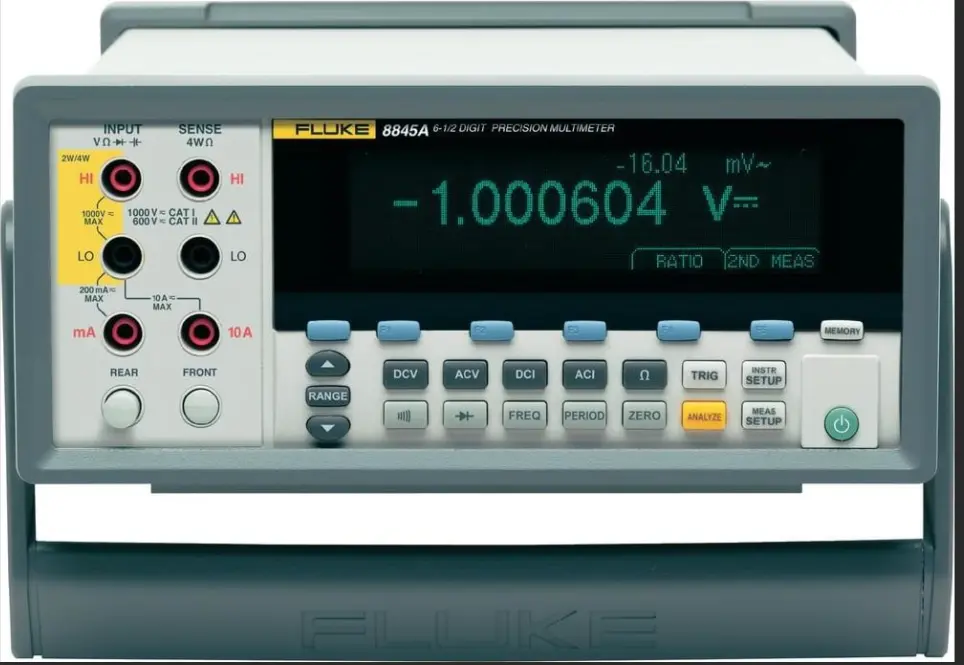

Fluke 8845A/SU 120V Digital Multimeter
Request a quote
Fluke 8845A/SU 120V is a 6.5-digit precision digital multimeter with 0.0035% V DC accuracy, dual display, and graphical analysis capabilities.
Product details
| Model | 8845A/SU 120V |
| Manufacturer | Fluke |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The Fluke 8845A/SU 120V is a 6.5-digit precision digital multimeter designed for demanding benchtop and system-level measurements. It measures voltage (DC/AC), current, resistance, frequency, and period with superior accuracy. The dual-display system enables simultaneous measurement of two parameters from a single test connection, while advanced graphical modes provide real-time trend analysis and statistical evaluation.
Key Features
- 6.5-digit resolution with 0.0035% V DC accuracy
- Dual independent display for simultaneous measurements
- Current measurement from 100 μA to 10 A with 100 pA resolution
- Resistance measurement from 100 Ω to 100 MΩ with 100 μΩ resolution
- 2 x 4-wire ohms measurement using only two test leads
- Frequency and period measurement from 3 Hz to 300 kHz
- Graphical display with Trendplot, statistics, and histogram modes
- Multiple interfaces: RS-232, IEEE-488, Ethernet
- CAT I 1000 V / CAT II 600 V safety rating
Applications
- Manufacturing test and production verification
- Research and development
- Field service and troubleshooting
Specifications
| Dual Display and Graphical Capabilities | A dual display lets you measure two parameters of the same signal from one test connection. Use the unique analyze mode to view data as a real time trend plot or histogram. |
| Perform 4-Wre Measurement with only Two Leads | Patented split terminal jacks for the 2 x 4 ohms function let you perform 4-wire measurements using only two leads instead of four. |
| Multiple Connectors give you Maximum Flexibility | Serial, IEEE-488, and Ethernet interfaces come standard. |
| FlukeView Software and Drivers add PC Power and Application Compatibility | FlukeView Forms lets you document, store and analyze individual readings or series of measurements, then convert them into professional-looking documents. Instrument programming drivers, DLL files and support information are included to get your test system up and running as quickly as possible |
| FlukeView Forms Basic | The Fluke 8845A ships with a free copy of FlukeView Basic. For a larger array of forms or to use FlukeView Forms Designer to customize your forms, upgrade to FlukeView Forms with FVF-UGg> |
| Display | VFD Dot MatrixVFD Dot Matrix |
| Resolution | 6.5 Digits 6.5 Digits |
| V AC | |
| Resistance | |
| A DC | |
| A AC | |
| Freq/Period | |
| Continuity/ Diode Test | YesYes |
| Capacitance | |
| Temperature | |
| Math Functions | Zero, Min/Max/Average, Std Dev; mx+bZero, Min/Max/Average, Std Dev; mx+b |
| dB/dBm | YesYes |
| Advanced Functions | |
| Weight | 3.6 kg (8.0 lbs) 3.6 kg (8.0 lbs) |
| Safety | Designed to comply with IEC: 61010-1 2000-1 ANSI/ISA-S82.01-1994 CAN/CSA-C22.2 No. 1010.1-92 CAT I 1000 V CAT II 600 V Designed to comply with IEC: 61010-1 2000-1 ANSI/ISA-S82.01-1994 CAN/CSA-C22.2 No. 1010.1-92 CAT I 1000 V CAT II 600 V |
| Warranty | One yearOne year |
| 8845A | 6.5 digit precision multimeter, 35 ppm |
