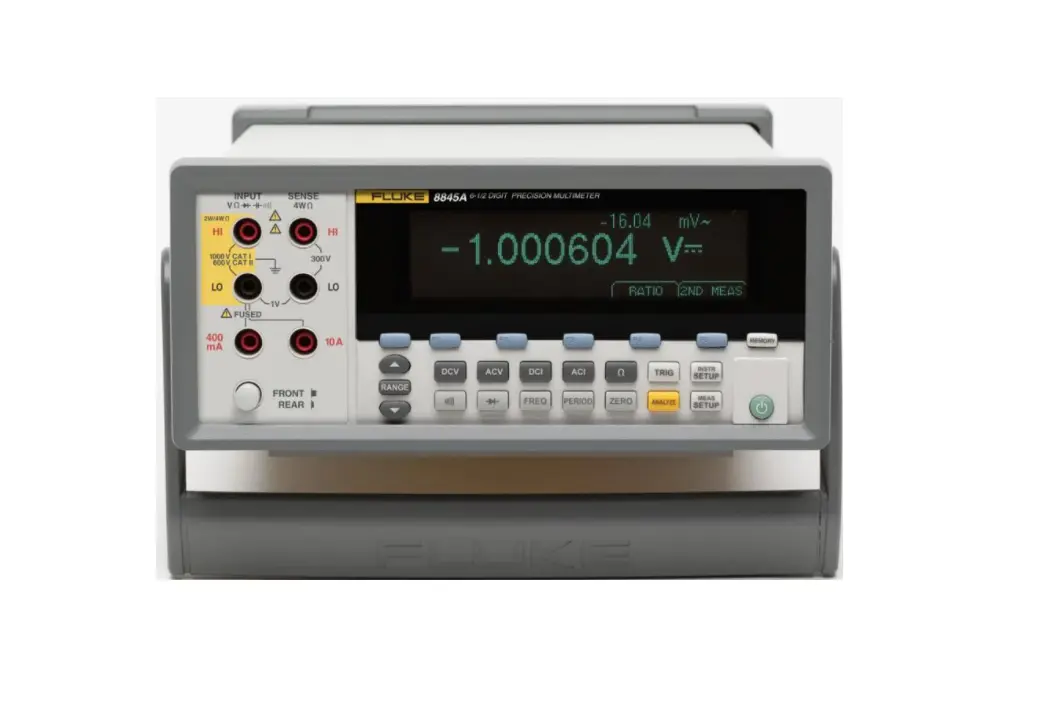

Fluke 8845A Digital Multimeter
Request a quote
Fluke 8845A is a 6½-digit benchtop multimeter with 0.0035% VDC accuracy, dual display, and advanced Trendplot graphical recording with histogram and limit test features.
Product details
| Model | 8845A |
| Manufacturer | Fluke |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The Fluke 8845A is a 6½-digit precision benchtop digital multimeter designed for demanding laboratory measurements. It measures DC and AC voltage, current, resistance, frequency, period, and capacitance. The meter features a graphical VFD display that can show two measurements simultaneously, and includes advanced functions like Trendplot paperless recording, statistics, and histogram analysis for signal quality assessment.
Key Features
- 6½-digit resolution for precision measurements
- Basic VDC accuracy of 0.0035% + 0.0005%
- Dual display for simultaneous viewing of two measurements
- Current range: 100 μA to 10 A with 100 pA resolution
- Resistance range: 100 Ω to 100 MΩ with 100 μΩ resolution
- 2x4-wire measurement technique for accurate 4-wire ohms tests
- Frequency measurement: 3 Hz to 300 kHz with 1 μHz resolution
- Graphical display modes: Trendplot, statistics, histogram, and limit test
- Multiple interfaces: RS-232, IEEE-488.2, Ethernet, USB
- Emulation modes: Fluke 45 and Agilent 34401A compatible
- Safety rating: CAT I 1000 V, CAT II 600 V
Applications
- Laboratory and benchtop testing
- Research and development
- Signal quality monitoring and analysis
- Precision electrical measurements
Specifications
| Display | VFD Dot MatrixVFD Dot Matrix |
| Resolution | 6.5 Digits6.5 Digits |
| Continuity / Diode Test | YesYes |
| USB Memory | --USB Memory Drive Port |
| Real Time Clock | --Yes |
| Interfaces | RS-232 IEE-488.2 Ethernet USB (with optional adapter) RS-232 IEE-488.2 Ethernet USB (with optional adapter) |
| Programming Languages/Modes | SCPI (IEEE-488.2) Agilent 34401A Fluke 45 SCPI (IEEE-488.2) Agilent 34401A Fluke 45 |
| Weight | 3.6 kg (8.0 lb) 3.6 kg (8.0 lb) |
| Size (HxWxD) | 88 mm x 217 mm x 297 mm (3.46 in x 8.56 in x 11.7 in) 88 mm x 217 mm x 297 mm (3.46 in x 8.56 in x 11.7 in) |
| Safety | Designed to comply with; IEC 61010-1 2000-1 ANSI/ISA-S82.01-1994 CAN/CSA-C22.2 No. 1010.1-92 CAT I 1000 V CAT II 600 V Designed to comply with; IEC 61010-1 2000-1 ANSI/ISA-S82.01-1994 CAN/CSA-C22.2 No. 1010.1-92 CAT I 1000 V CAT II 600 V |
| Models | Description |
| 8845A | 6.5 digit precision multimeter, 35 ppm |
