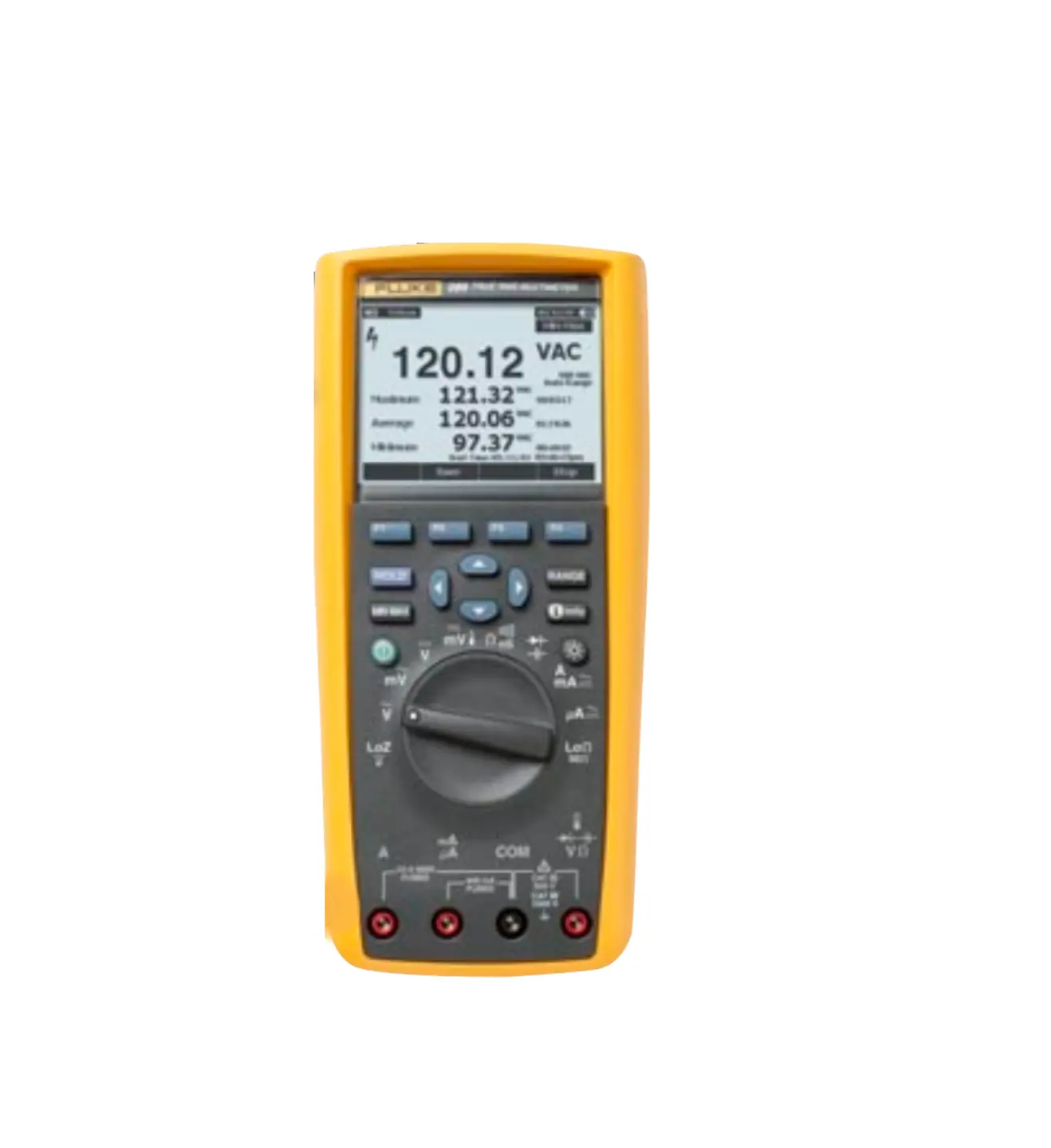

Fluke 289 True-RMS Industrial Logging Digital Multimeter
Request a quote
Fluke 289 industrial true-RMS multimeter with Fluke Connect wireless capability, TrendCapture graphing, and logging for up to 15,000 recorded events.
Product details
| Model | 289 |
| Manufacturer | Fluke |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The Fluke 289 is a high-performance industrial logging multimeter designed for solving complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. With Fluke Connect compatibility, it enables wireless data sharing and remote monitoring through the Fluke Connect mobile app and ShareLive video call capabilities.
Key Features
- Fluke Connect-compatible for wireless data sharing and remote monitoring
- TrendCapture with on-board graphing displays up to 15,000 recorded events
- Zoom on trend provides 14x magnification for detailed data analysis
- Selectable AC filter for steady readings on noisy signals
- Low pass filter for accurate measurements on variable speed motor drives
- LoZ volts function for detecting live power without ghost voltages
- 50,000 count display with 1/4 VGA dot matrix and white backlight
- True-RMS AC voltage and current for nonlinear signal measurements
- Peak capture records transients as fast as 250 microseconds
- Capacitance measurement up to 100 millifarads
- Frequency measurement to 200 kHz
- Real-time clock for automatic time stamping
- FlukeView Forms software for data documentation and analysis
- Optional magnetic hanger for hands-free operation
Applications
- Electronics design and troubleshooting
- Plant automation and power distribution diagnostics
- Electro-mechanical equipment testing
- Unattended system and process monitoring
- Intermittent fault detection and resolution
Specifications
| Display | 50,000 count, 1/4 VGA dot matrix |
| Logging Capacity | Up to 15,000 recorded events |
| Voltage Measurement | True-RMS AC/DC |
| Current Measurement | Up to 10 A continuous (20 A for 30 seconds) |
| Frequency Range | 0 to 200 kHz |
| Capacitance Range | 0 to 100 mF |
| Resistance Measurement | Two terminal 50 ohm range with 1 milliohm resolution |
| Peak Capture | Records transients as fast as 250 microseconds |
| TrendCapture Zoom | Up to 14x magnification |
| Data Logging Sessions | Multiple sessions storable before PC download |
| Real-time Clock | Automatic time stamping of saved readings |
| Warranty | Limited lifetime |
