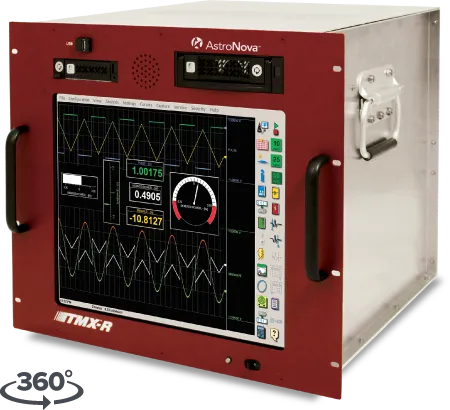

AstroNova TMX-R Data Acquisition System
Request a quote
AstroNova TMX-R is a rackmount data acquisition system with 17-inch touchscreen display, 800 kHz sampling, and expandable to 96 channels.
Product details
| Model | TMX-R |
| Manufacturer | AstroNova |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The AstroNova TMX-R is a rackmount variant of the TMX high-speed data acquisition system, designed for permanent installation in standard 19-inch equipment racks. It features a 17-inch touch-screen LCD display and accommodates up to 6 input modules directly, or up to 9 modules when paired with the optional TMX-E expansion chassis. The system supports up to 96 channels and provides 800 kHz sampling rates with 100 kHz bandwidth.
Key Features
- 17-inch high-resolution touch-screen LCD display (1280x1024)
- Up to 96-channel capacity (6 module slots, expandable to 9 with TMX-E)
- 800 kHz sample rate with 100 kHz bandwidth
- 1 TByte removable data capture hard drive (solid-state options available)
- Advanced triggering with AND/OR operators
- Circular data buffer for pre-trigger recording
- Multiple independent sampling rates per channel
- Gigabit Ethernet, USB 3.0, and VGA connections
- Built-in signal conditioning on input modules
Applications
- Long-term environmental and structural monitoring
- Industrial test and measurement automation
- Multi-sensor data logging in harsh environments
- Time-synchronized data acquisition from diverse sensors
Specifications
| Channel/Port Count | 32 |
