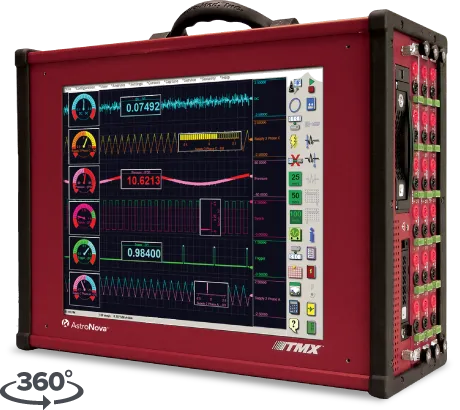

AstroNova TMX High-Speed Data Acquisition Recorder
Request a quote
AstroNova TMX is a rugged all-in-one data acquisition system with up to 96 channels, 800 kS/s sample rate, and 17-inch multi-touch display.
Product details
| Model | TMX |
| Manufacturer | AstroNova |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The AstroNova TMX is a rugged, all-in-one data acquisition system designed for field testing, production environments, and laboratory work. Tested to MIL-STD-810F standards, it provides a complete solution for acquiring, visualizing, and analyzing data with user-friendly software and intuitive operation through a 17-inch multi-touch display.
Key Features
- 800 kS/s per channel maximum sample rate (50 MS/s with optional 2-channel scope card)
- Up to 96 channels with modular and scalable architecture
- 17-inch multi-touch display for intuitive control and visualization
- Audio and video inputs synchronized with analog and digital data
- GPS, IRIG, and NTP synchronization options
- Python and LabVIEW automation support
- Rack-mount version (TMX-R) and expansion chassis (TMX-E) available
- MIL-STD-810F certified for shock and vibration
Applications
- Maintenance and troubleshooting in field environments
- Research and development projects
- Verification and validation testing
- Long-term data trending with high-speed event capture
- Production environment monitoring
Specifications
| Feature | Parameter |
| Max. Number of Modules | TMX: 3 Slots TMX with TMX-E: 6 Slots TMX-R: 6 Slots TMX-R with TMX-E: 9 Slots |
| Event Inputs (TTL) | 16 |
| Type | Active matrix color LCD (TFT) |
| Viewing Area | 13.3” H x 10.6” W Diagonal 17" (43.2 cm) |
| Resolution | 1280px x 1024px |
| Touch | Full screen, resistive |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non condensing |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Shock | MIL-STD-810F Method 516.5, Procedure I |
| Vibration | MIL-STD-810F Method 514.5, Procedure I |
| Safety | IEC 61010-1:2010 (3rd edition) IEC 61010-2-030:2010 EMC: IEC 61326-1 Ed. 2.0 (2012) |
| Enclosure | Aluminum with armored end caps |
| Dimensions | 14.5” H x 19” W x 7.5” D (36.8 cm x 48.3 cm x 19.1 cm) without handle |
| Weight | 37 lbs. (16.78 kg) for TMX including 3 modules |
| Ethernet | Gigabit Ethernet (10/100/1000 Base-T) RJ-45 connector |
| VGA | For displaying data on an external monitor |
| USB 3.0 | For external peripherals and file export 4 ports per unit |
| Expansion Port | For connection of optional TMX-E |
| Input Voltage Range | 102 to 264 VAC or 24 VDC at 11A |
| Frequency Range | 47 Hz to 63 Hz |
| Power Consumption | 300W |
| TMX | TMX Data Acquisition System (Includes 3 module slots) 42880030 |
