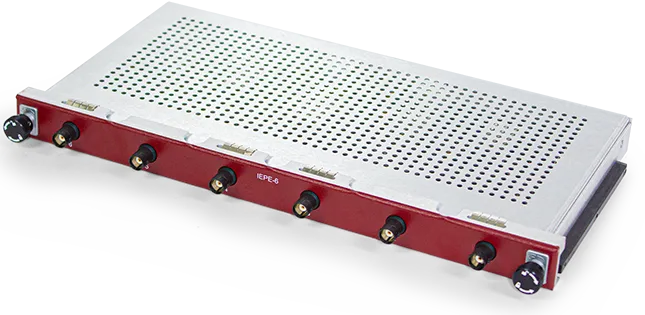

AstroNova IEPE-6 Piezoelectric Sensor Input Module
Request a quote
AstroNova IEPE-6 provides 6 isolated voltage or IEPE sensor inputs with excitation, 800kS/s sampling, 16-bit resolution, and TEDS support.
Product details
| Model | IEPE-6 |
| Manufacturer | AstroNova |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The AstroNova IEPE-6 is a 6-channel input module for high-speed data acquisition systems. It provides isolated voltage or Integrated Electronics Piezo-Electric (IEPE/ICP) sensor inputs with built-in excitation, making it ideal for vibration analysis, acoustic measurements, and other sensor-based applications requiring simultaneous multi-channel acquisition.
Key Features
- 6 isolated voltage or IEPE sensor input channels
- Per-channel selectable input mode (voltage or IEPE)
- Built-in excitation for IEPE/ICP sensors
- Simultaneous sampling up to 800kS/s per channel (400kS/s with TMX-E)
- 16-bit analog-to-digital resolution
- Maximum bandwidth up to 65 kHz
- Three user-selectable measurement ranges to maximize resolution
- Built-in frequency counter
- Insulated BNC connections
- Transducer Electronic Data Sheets (TEDS) support
- 250Vrms or DC isolation, Category II
Applications
- Vibration monitoring and analysis
- Acoustic and noise measurements
- Structural health monitoring
- Modal analysis and testing
- Machine condition monitoring
- Environmental data acquisition
Compatibility
- Compatible with TMX chassis
- Compatible with TMX-18 complete system
- Compatible with TMX-R rack-mount system
Specifications
| Compatibility | TMX TMX-18 TMX-R |
| Feature | Parameter |
| Channels (per module) | 6 |
| Maximum Sample Rate (per channel) | 800 KS/s (400 KS/s with TMX-E) |
| Maximum Bandwidth | Up to 65 kHz |
| Input Type | Isolated Differential |
| Isolation | 250 Vrms or DC, Cat II |
| TEDS Capability | Yes |
| IEPE-6 | 6-Channel Isolated Piezoelectric Sensor Module (for ICP© type sensors) 32850050 |
