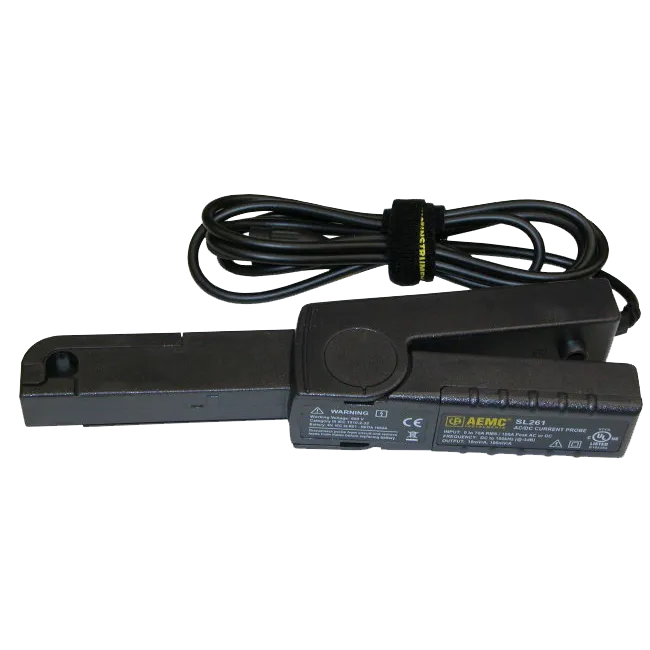

AEMC SL261 AC/DC Current Probe
Request a quote
AEMC SL261 is a portable 100A AC/DC current probe with Hall effect sensor technology for measuring current waveforms with ±3-4% accuracy.
Product details
| Model | SL261 |
| Manufacturer | AEMC |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The AEMC SL261 is a portable AC/DC current probe designed for measuring current waveforms in crowded electrical environments. Equipped with advanced Hall effect sensor technology, the probe provides proportional millivolt output for direct reading on oscilloscopes and digital multimeters. Its compact jaw design allows probing in tight spaces where traditional clamps cannot fit.
Key Features
- Measures 10mA to 100A AC/DC current
- Dual range selection (10A and 100A ranges)
- Hall effect sensor technology for accuracy
- Proportional mV output for oscilloscope display
- Compact clamping diameter of 0.46" (11.8mm)
- Unique design for crowded wiring applications
- BNC connector output (adapter available)
- 6.5 ft (1.9m) insulated lead cable
- 9V alkaline battery powered with 55-hour battery life
- UL approved for US and Canada
- Flame retardant housing (UL94 V2 rated)
Applications
- Power quality analysis
- Motor and transformer testing
- HVAC system diagnostics
- General electrical troubleshooting
- Oscilloscope current measurement
Specifications
| Features | Parameters |
| Clamping Diameter | 0.46” (11.8mm) |
| Current Range | 10AAC/DC & 100AAC/DC |
| Measurement Range | 50mA to 10AAC/DC & 5A to 100AAC/DC |
| Lead Length | 6.5 ft (1.9m) |
| Output Termination | BNC connector (adapter to proprietary connector available Cat. #2140.40 - sold separately) |
| Accuracy (Typical) | 10A range: ±3%; 100A range: ±4% |
| Power Source | 9V alkaline |
| Battery Life | 55 hours (typical) |
| Compatibility | AEMC Power Pads and PELs (adapter to proprietary connector required, Cat. #2140.40) |
| Dimensions | 9.09 x 1.42 x 2.64” (231 x 36 x 67mm) |
| Weight | 11.6 oz (330g) |
| Operating Temperature | 14° to +131°F (-10° to +55°C); 10 to 85% RH |
| Storage Temperature | -40° to +158°F (-40° to +70°C); 10 to 90% RH |
| Pollution Degree | 2 |
| Protection | IK 04, IP40 (jaws closed) IP30 (jaws open) |
| Safety Compliance | IEC 61010-1 IEC 61010-2-032 600V CAT 111 CE UL listed |
| Part Number | Description |
| 1201.51 | AC/DC Current Probe Model SL261 (BNC) |
