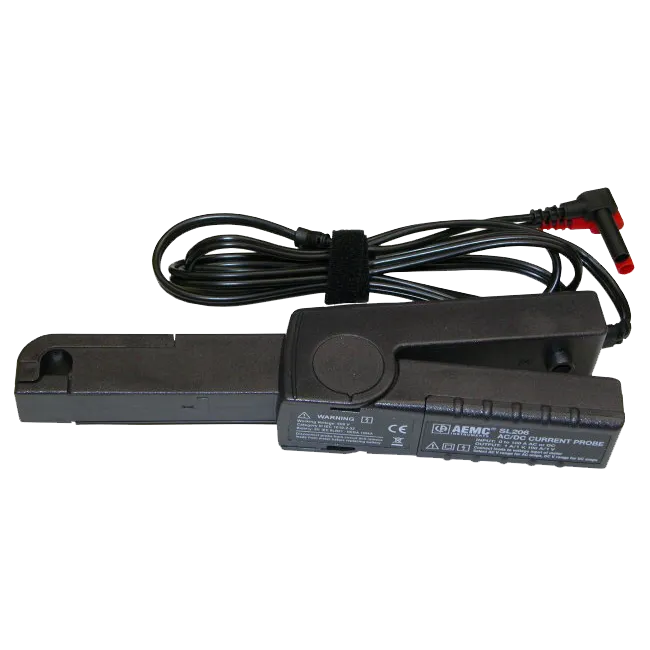

AEMC SL206 AC/DC Current Probe
Request a quote
AEMC SL206 AC/DC current probe with Hall sensor technology measures 10mA to 80A with dual range selection, ideal for crowded industrial wiring.
Product details
| Model | SL206 |
| Manufacturer | AEMC |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The AEMC SL206 is an AC/DC current probe designed to measure low DC or AC currents from 10mA to 80A. This battery-powered clamp-on probe connects to digital multimeters, voltmeters, or other voltage-measuring instruments, allowing current measurements without breaking the circuit. The narrow jaw design is optimized for use in crowded wiring typical of industrial and automotive environments.
Key Features
- Dual range selection for accurate measurements across different current levels
- Measures from 10mA to 1.5A AC or 10mA to 2A DC in low range; 50mA to 60A AC or 50mA to 80A DC in high range
- Hall effect sensor technology for reliable current sensing
- Narrow jaw design for access to crowded wiring areas
- UL approved for US and Canada
- Flame retardant UL94 V2 rated housing
- Compatible with DMMs, voltmeters and voltage measuring instruments
- 9V alkaline battery powered with 68 hour typical battery life
Applications
- Industrial electrical diagnostics and troubleshooting
- Automotive electrical system testing and diagnostics
- Maintenance and service of electronic equipment
- Field testing in environments with complex wiring
Specifications
| Features | Parameters |
| Maximum Conductor Size | 0.46” (11.8mm) |
| Current Range | 1.5AAC / 2ADC & 60A AC / 80ADC |
| Measurement Range | 10mA to 1.5AAC / 10mA to 2A DC & 50mA to 60AAC / 50mA to 80ADC |
| Output Signal | 1mV/mA AC/DC & 10mV/A AC/DC |
| Accuracy 50/60Hz | 2% @ 1mV/mA; 4% @ 10mV/A (50mA AC/DC to 40AAC / 40ADC); 12% @ 10mV/A (50 to 80A DC / 40 to 60AAC) |
| Phase Shift | 1° |
| Frequency Range | DC to 2kHz @ 1mV/mA; DC to 8kHz @ 10mV/A |
| Output | Double insulated 5ft (1.5m) lead with 4mm safety banana plugs |
| Load Impedance | >10kΩ @ 10mV/A ; >100kΩ @ 1V/A |
| Overload | 120A continuous |
| Power Source | 9V alkaline |
| Battery Life | 68 hours typical |
| Operating Temperature | +32° to +122°F (0° to +50°C) |
| Storage Temperature | -22° to +176°F (-30° to +80°C) |
| Dimensions | 9.09 x 1.42 x 2.64” (231 x 36 x 67mm) |
| Weight | 11.6 oz (330g) with battery |
| Pollution Degree | 2 |
| Rating | UL 94 V2 (handle) |
| Ingress Protection (IP) | IP20 |
| Safety Compliance | IEC 1010-2-32, 600V CAT III |
| Part Number | Description |
| 1201.45 | AC/DC Current Probe Model SL206 |
