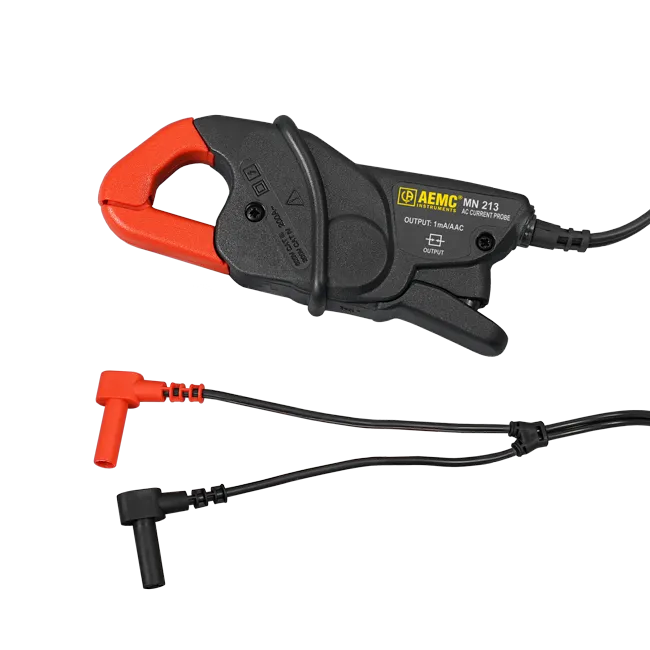

AEMC MN213 AC Current Probe
Request a quote
AEMC MN213 is a compact AC current probe with 1000:1 ratio, 0.5-240 A measurement range, 5 ft leads, and UL/EN61010 safety certification.
Product details
| Model | MN213 |
| Manufacturer | AEMC |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The AEMC MN213 is a general purpose AC current probe designed for use with DMMs and other measuring instruments that accept current input. It provides a 1000:1 turns ratio with an output of 1 mA per ampere in the primary circuit.
The probe features integral 5 ft (1.5 m) leads terminated with shrouded banana plugs. Protective diodes across the output limit voltage in open secondary situations, providing safe operation.
Key Features
- Small, compact size for convenient handling
- Measurement range from 100 mA to 240 A AC
- Frequency response to 10 kHz
- UL approved for both US and Canada
- Designed to EN61010, 600V CAT III safety standard
- Jaw opening accommodates up to 250 kcmil cables
- UL94VO flame retardant construction
- Double insulated for enhanced safety
Applications
- General purpose AC current measurement
- Electrical troubleshooting and diagnostics
- Power quality monitoring
- HVAC and industrial equipment testing
Specifications
| Features | Parameters |
| Maximum Conductor Size | 0.78" (20mm), bus bar 20x5mm |
| Current Range | 200Arms AC |
| Measurement Range | 0.5 to 240A |
| Output | 5ft (1.5m) lead with 4mm safety banana plug |
| Transformation Ratio | 1000:01:00 |
| Output Signal | 1mA/A AC (200mA @ 200A) |
| Accuracy 50/60Hz | 1% ± 0.5A @ 200A |
| Frequency Range | 40Hz to 10KHz |
| Phase Shift at 50Hz | 2.5° @ 200A |
| Open Secondary Voltage | Limited to <6V with diodes |
| Load Impedance | 1Ω, 10Ω max with derating |
| Overload | 240A for 10 min ON, 30 min OFF |
| Weight With 24” (610mm) Sensor | 6.3 oz (180g) |
| Operating Temperature | 14° to +131°F (-10° to +55°C) |
| Storage Temperature | -40° to +158°F (-40° to +70°C) |
| Operating Humidity | 90% RH |
| Pollution Degree | 2 |
| Ingress Protection (Ip) | IP40 |
| EMC | EN 61326-1 |
| Safety Compliance | EN/IEC 61010-1 600V CAT III EN/IEC 61010-032 UL Listed |
| Part Number | Description |
| 2115.75 | AC Current Probe Model MN213 |
