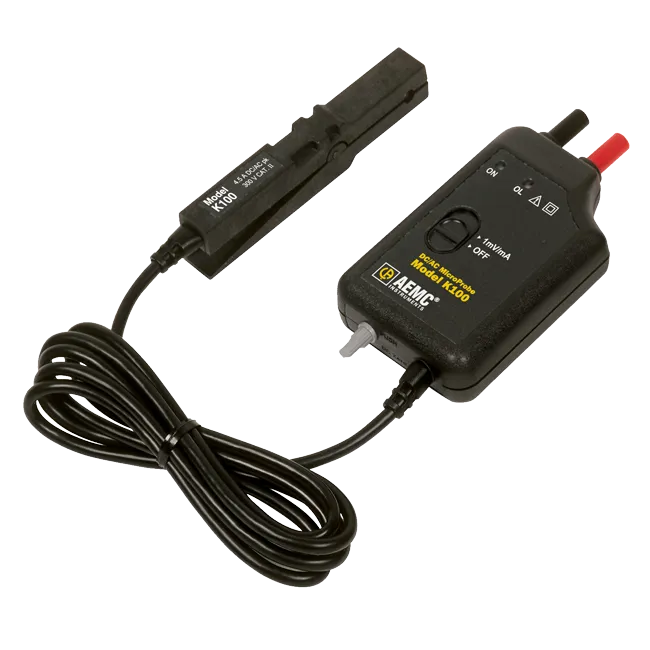

AEMC K100 DC/AC MicroProbe
Request a quote
AEMC K100 measures DC/AC currents from 100µA with proportional mV output for direct readings on multimeters and oscilloscopes.
Product details
| Model | K100 |
| Manufacturer | AEMC |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The AEMC K100 is a compact DC/AC MicroProbe designed for measuring extremely low current levels on digital multimeters and oscilloscopes. With a non-contact clamp-on design and proportional mV output, it enables direct measurements without requiring range or mode switching.
Key Features
- Measures extremely low-level DC current from 100µA
- Proportional output signal for total current (DC + AC)
- Ultra-compact size with non-contact clamp-on convenience
- No range or mode switching required
- Simple plug-in operation with standard banana connectors
- Low noise output (less than 100µV DC to 3kHz)
- Dual LED indicators for overload (red) and power status (green)
- Output signal: 1mV/mA for direct DMM or oscilloscope readings
Applications
- Low-current DC/AC circuit measurements
- Waveform analysis on oscilloscopes
- Equipment testing and troubleshooting
- Laboratory current monitoring
Specifications
| Features | Parameters |
| Maximum Conductor Size | 3/16”, 0.18" (4.5mm) |
| Current Range | 4.5ADC / 3Arms AC |
| Measurement Range | 100µA to ±4.5ADC / 100µA to 3Arms AC |
| Output | 5 ft (1.5m) lead with two 4mm banana plug |
| Output Signal | 1mV/mA |
| Resolution | DC: 50µA, AC: 100µA typical |
| Accuracy | DC: 1% R ± 200µA; AC: 2% R ± 200µA |
| Output Noise | <100µV, DC to 3kHz |
| Frequency Range | DC to 2kHz |
| Output Impedance | 200Ω |
| Overload | ±4.7A |
| Power Source | One 9V alkaline battery |
| Battery Life | 20H |
| Operating Temperature | 14° to +131°F (-10° to +55°C), 95% RH |
| Storage Temperature | -40° to +176°F (-40° to +80°C) |
| Dimensions | Probe: 4.4 x 0.6 x 1.0” (111 x 15 x 25mm) Module: 4.9 x 2.5 x 1.1” (124 x 64 x 28mm) |
| Weight | 9oz (250g) |
| Ingress Protection | IP 40 |
| EMC | EN50082-1 class A EN 50081-1 |
| Safety Compliance | EN 61010-1 300 V CAT II CE |
| Model / Part Number | Description |
| Model K100 / 1200.67 | DC/AC MicroProbe Model K100 |
