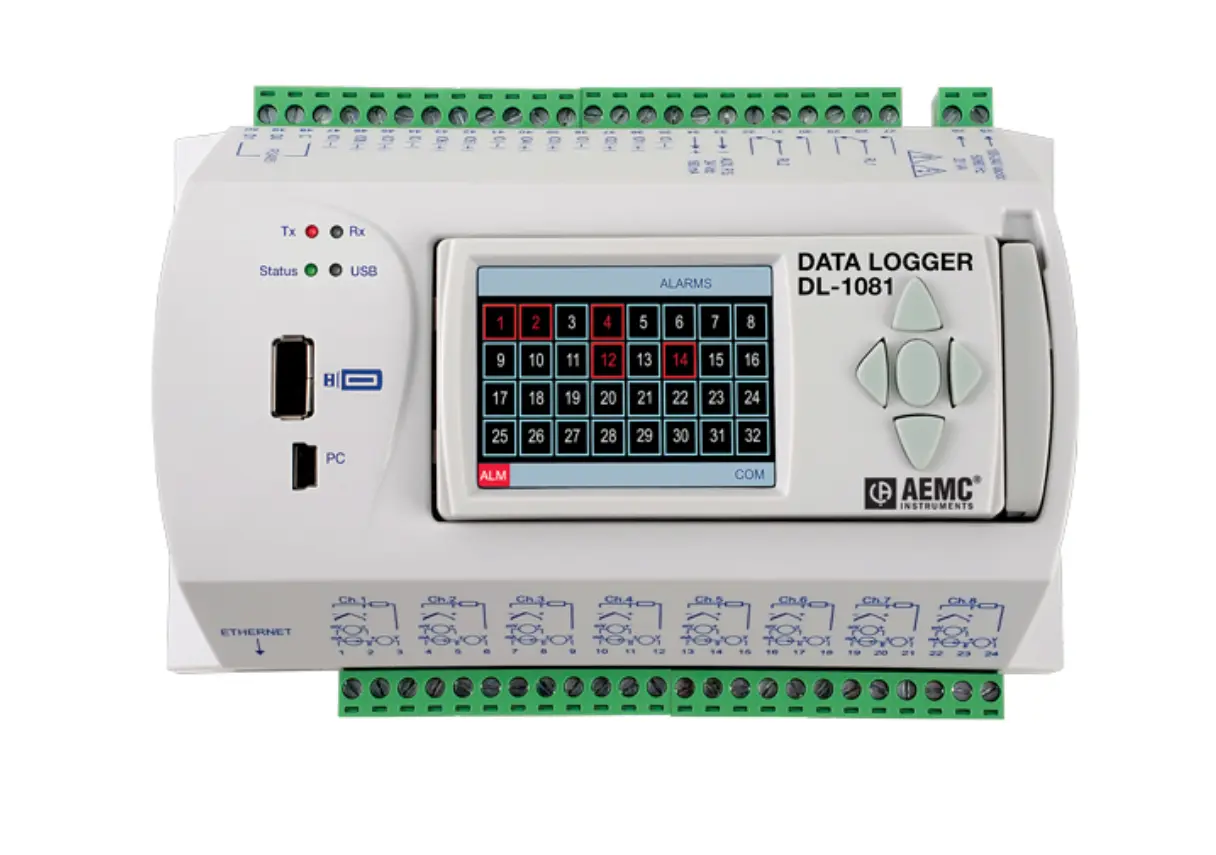

AEMC DL-1081 Data Logger
Request a quote
AEMC DL-1081 is an 8-channel data logger with color LCD display, supporting thermocouples, RTDs, and voltage/current inputs with Ethernet and RS485 connectivity.
Product details
| Model | DL-1081 |
| Manufacturer | AEMC |
| Category | Multimeters & DMMs |
| Availability | Made to order |
Description
Overview
The AEMC DL-1081 is a versatile 8-channel data logger with an integrated color LCD display. It supports a wide range of input types including thermocouples, Pt100/Pt1000 RTDs, DC voltage, and DC current signals. The unit features 8 digital input/output ports, 2 relay outputs, and up to 128 virtual channels for advanced data processing and analysis.
Key Features
- Eight universal analog input channels with color LCD display
- 8 digital I/O ports individually configurable as inputs or outputs
- Sample rates up to 1000 samples per second
- 24Vdc output to power up to 8 external 4-20mA transmitters or transducers
- Two relay outputs with NO, NC, and common connections
- Up to 128 virtual channels for mathematical operations on measured values
- Up to 32 configurable alarm conditions with relay activation and email notification
- RS485 Modbus (master/slave), Ethernet, and USB connectivity
- Detachable color TFT QVGA display
- Internal memory (2 MB, 532,480 measurements) plus SD card support
Applications
- Temperature monitoring in HVAC and environmental systems
- Industrial process data acquisition and logging
- Building automation and energy management
- Laboratory research and scientific measurement
- Equipment and machinery condition monitoring
Specifications
| Features | Parameters |
| Channels | Eight universal analog input with color LCD display 8 digital I/O (Individually configured as inputs or outputs) Up to 128 virtual channels |
| Input | Screw terminal connectors |
| Ranges | J, K, T, E, N, R, S & B thermocouples RTD100 (PT100) & RTD1000 (PT1000) 0 to 20mA, 4 to 20mA, 20mV, 50mV, 60mV, -20 to +20mV, 0 to 5V, 0 to 10V |
| Accuracy | V and mA and RTD: ± 0.15% of full scale Thermocouples J, K, T, E, N: ± 0.2% of full scale +1°C Thermocouples R, S, B: ± 0.2% of full scale +3°C |
| Resolution | 24 bit analog/Digital converter, selectable by software for each channel |
| Input Impedance | V DC: 1.1MΩ, DC current: 15Ω & 1.5V Thermocouples and RTD: >2MΩ |
| Storage Rate | Programmable from 0.2 seconds min for full specification when using all channels |
| Storage Modes | Start/Stop Wrap around Alarm Date/Time |
| Memory | Internal: 2 MB: 532,480 measurements SD card (not Supply) |
| Alarm | 32 alarms and 2 output relays available |
| Communication | USB Ethernet RS485 |
| Power Source | 100 to 240VAC ± 10%, 20 VA max |
| Dimensions | 6.46 x 4.61 x 17.8” (164 x 117 x 70mm) |
| Weight (with battery) | 14.1 oz (400g) |
| Case | ABS |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Storage Temperature | -4° to 140°F (-20° to 65°C) |
| Relative Humidity | Up to 85% @ 85°F (30°C) |
| Ingress Protection (IP) | IP20 |
| EMC | EN 61326-1 |
| Safety Compliance | IEC 61010-1 EN 61010-2-30 CE |
