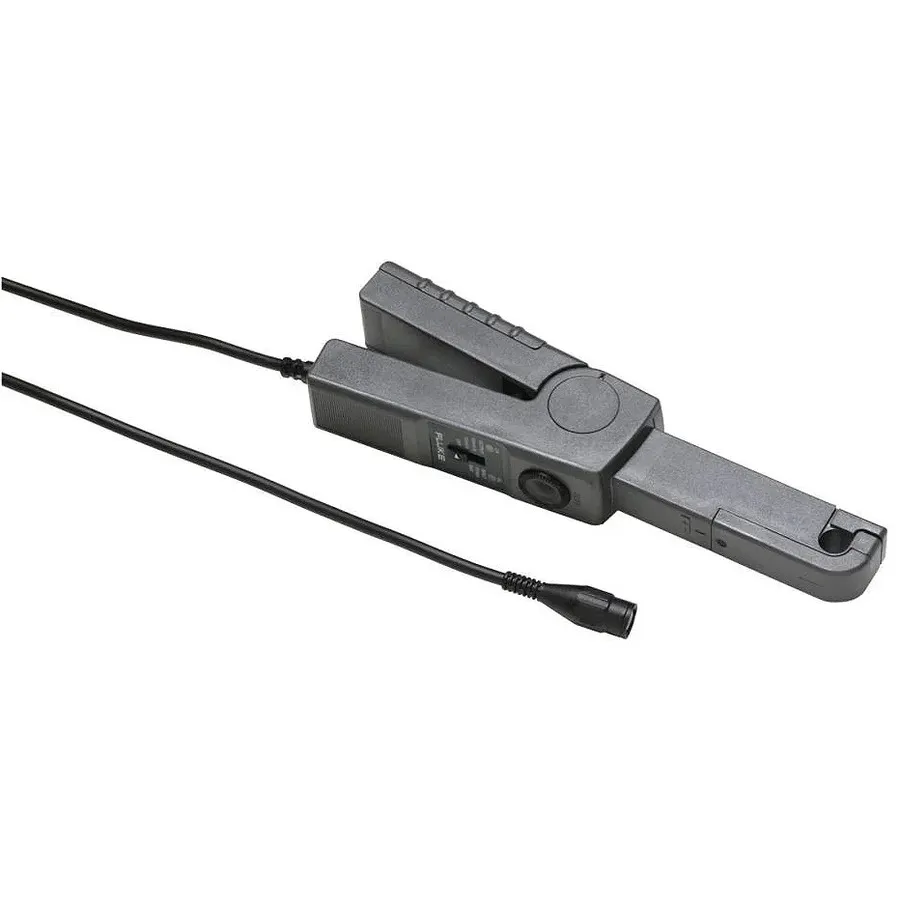

Fluke 80i-110s AC/DC Current Clamp
Request a quote
Fluke 80i-110s is an AC/DC current clamp with 0.1–100A DC and 0.1–70A AC ranges for use with ScopeMeter, oscilloscopes, and multimeters.
Product details
| Model | 80i-110s |
| Manufacturer | Fluke |
| Category | Multimeter Accessories |
| Availability | Made to order |
Description
Overview
The Fluke 80i-110s is an AC/DC current clamp designed for non-invasive current measurement in electrical testing and troubleshooting applications. It provides precise current-to-voltage conversion with selectable measurement ranges and compatibility with a wide range of Fluke instruments, including ScopeMeter test tools, oscilloscopes, multimeters, and power analysis equipment.
Key Features
- AC current range: 0.1 to 70A
- DC current range: 0.1 to 100A
- Output signal: 100 mV/A on 10A range, 10 mV/A on 100A range
- Basic accuracy (DC to 1 kHz): ±3–15% depending on current range
- Bandwidth: 1 Hz to 20 kHz
- Working voltage: 600V AC rms
- Maximum conductor size: 11.8 mm (0.46 inch) diameter
- Safety rating: IEC 1010 and CSA-C22.2 No. 1010-1 Installation Category II
Applications
- Current measurement in electrical troubleshooting and diagnostics
- Power quality and harmonics analysis
- Equipment commissioning and maintenance testing
- Integration with ScopeMeter tools for waveform capture
Specifications
| Series | i-Series |
| Clamp Type | AC/DC Clamp |
