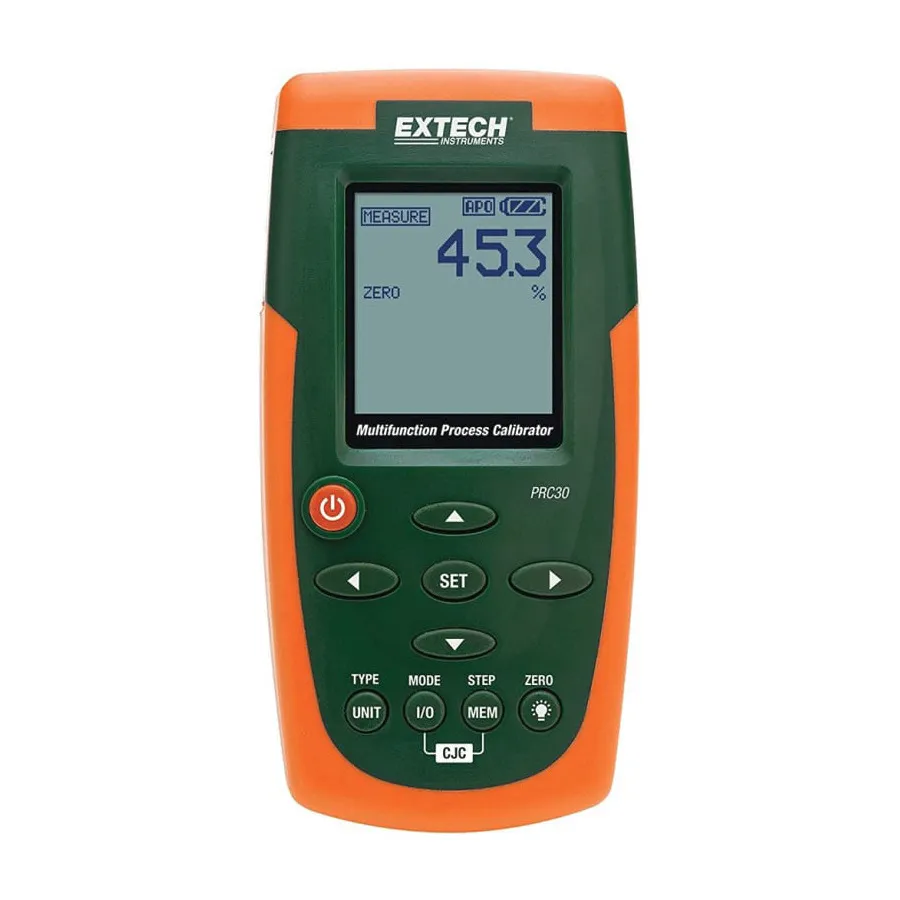

Extech PRC30-NIST Multifunction Process Calibrator
Request a quote
Extech PRC30-NIST is a portable multifunction process calibrator with 24V DC loop power, 0–24mA source/measure, and 8 thermocouple types (J, K, T, E, C, R, S, N).
Product details
| Model | PRC30-NIST |
| Manufacturer | Extech |
| Category | Multifunction Calibrators |
| Availability | Made to order |
Description
Overview
Extech PRC30-NIST is a portable, palm-sized multifunction process calibrator designed for field technicians and service professionals. It provides precise calibration and measurement capabilities for temperature sensors, pressure transducers, and industrial control systems. The robust design features a large dot-matrix backlit LCD display and comes with NIST traceability certification for compliance with calibration standards.
Key Features
- 24V DC power source for 2-wire current loop calibration
- 0–24mA current source and measure (-25 to 125%)
- 0–20V DC calibration source for voltage-based sensors
- Source and measure 8 thermocouple types: J, K, T, E, C, R, S, and N
- Cold Junction Compensation (CJC) function for accurate temperature measurement
- Up to five user-adjustable calibration presets
- Auto zero function when power-on and mode changes
- Large dot-matrix backlit LCD for excellent visibility
- Double-molded rugged housing for durability
- Millivolt or temperature display based on thermocouple tables
Included Accessories
- Test leads and alligator clips
- Calibration cables
- 100–240V AC universal power adapter with 4 plugs
- Six AA batteries for portable operation
- Hard carrying case
- NIST Certificate for traceability
