Rohde & Schwarz NGU411 Source Measure Unit
Request a quote

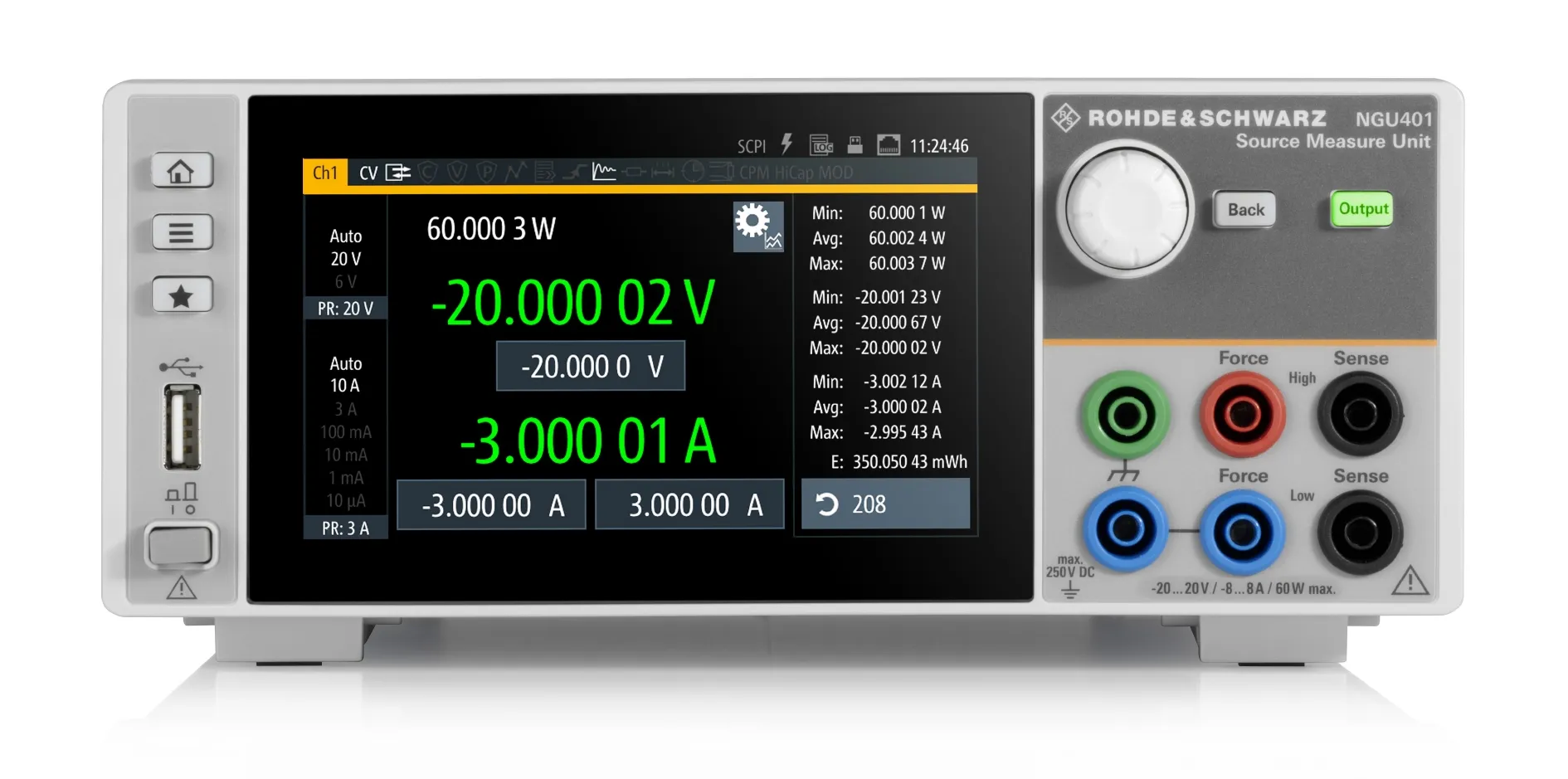

Rohde & Schwarz NGU411 four-quadrant source measure unit with 20W power, ±20V, and up to 500 ksample/s data acquisition for precision semiconductor testing.
Product details
| Model | NGU411 (3639.3763.04) |
| Manufacturer | Rohde & Schwarz |
| Category | LCR & Impedance Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz NGU411 is a four-quadrant source measure unit offering high precision power control in a compact 20W design. Like its higher-power siblings in the NGU series, the NGU411 features galvanically isolated floating channels with advanced measurement capabilities. With voltage output from -20V to +20V and current capability up to ±2A at voltages ≤10V, it is ideal for applications requiring precise voltage and current control, including semiconductor characterization, device testing, and battery simulation.
Key Features
- Four-quadrant operation: acts as both source and sink with positive or negative voltages
- Output voltage: -20V to +20V
- Maximum current: ≤10V / ±2A; >10V / ±1A
- Maximum output and sink power: 20W
- High-speed data acquisition: up to 500 ksample/s with 2 μs resolution (FastLog function)
- Voltage priority and current priority modes for optimized regulation
- High-capacitance mode to compensate for DUT input capacitance
- Fast load regulation with <30 μs recovery time
- Galvanically isolated floating channels
- Measurement resolution up to 6½ digits
- Available options: Digital trigger I/O (K103), IEEE-488 GPIB interface (B105)
Applications
- Semiconductor device characterization and testing
- Low-power IoT and Bluetooth device testing
- Battery simulation and power profiling
- Device under test with variable power requirements
- Precision voltage and current regulation
Included Accessories
- Power Cable
- Quick Start Guide
Specifications
| Easy to Use | The NGU and other instruments for the Essential portfolio can now be configured online, providing the following benefits: ▪ User-friendly and easy to navigate configurator |
| NGU411 | 3639.3763.04120 W-20 V to +20 V≤ 10 V: ±2 A > 10 V: ±1 A |
| NGU411 | 3639.3763.04Four-quadrant source measure unit, 20 W |
| Accessories | Included: Power Cable Quick Start Guide |
