Rohde & Schwarz NGU201 Source Measure Unit
Request a quote
Rohde & Schwarz NGU201 source measure unit provides two-quadrant operation with 0-20V range, 8A maximum current, 60W output, and 500 kS/s acquisition for precision characterization.
Product details
| Model | NGU201 (3639.3763.02) |
| Manufacturer | Rohde & Schwarz |
| Category | LCR & Impedance Analyzers |
| Availability | Made to order |
Description
Overview

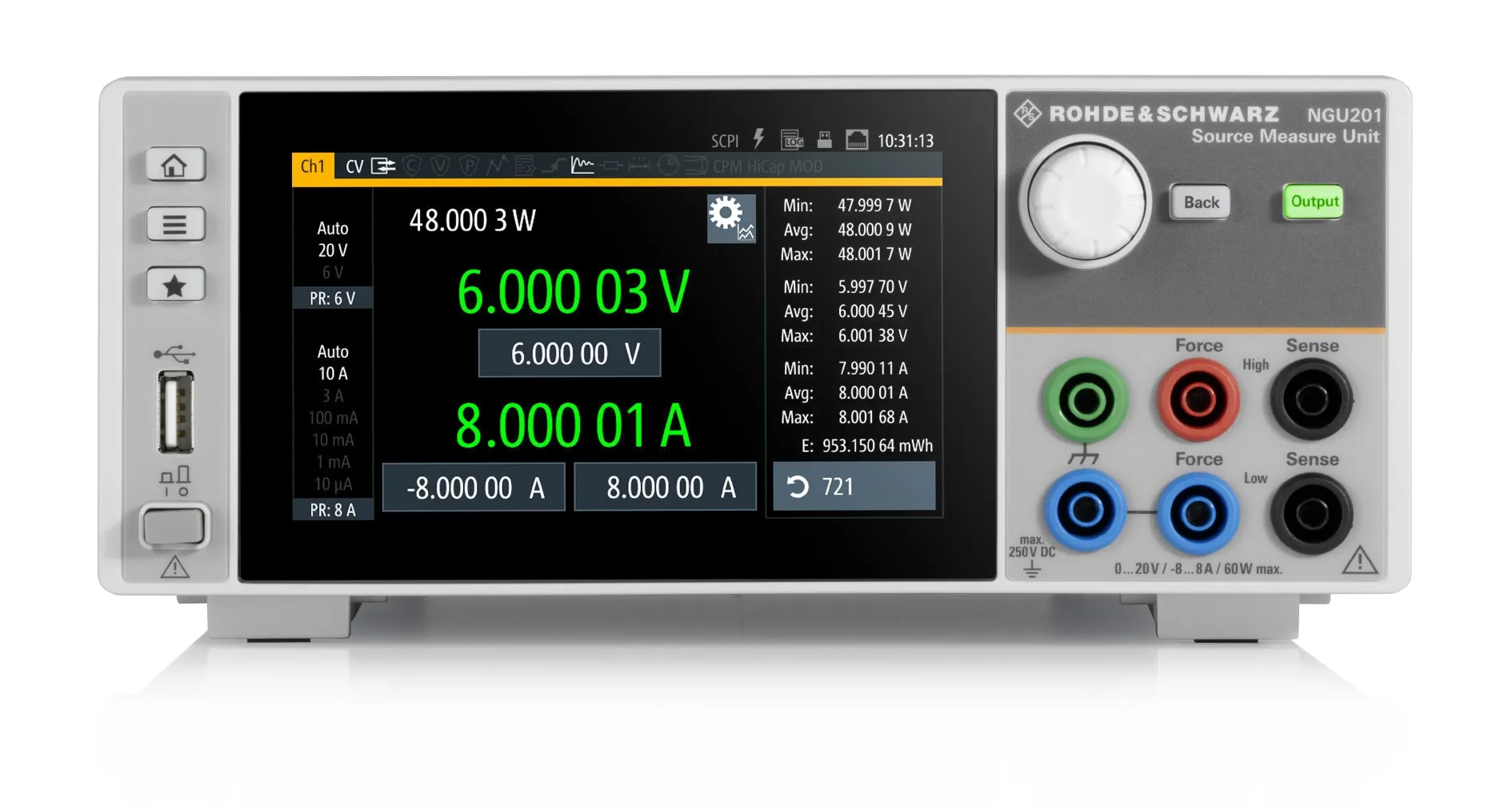

The Rohde & Schwarz NGU201 is a two-quadrant source measure unit designed for advanced characterization and testing of devices with demanding dynamic power requirements. With fast load recovery time of less than 30 microseconds, high-speed data acquisition at 500,000 samples per second, and precision current measurement down to the nanoampere range, it excels at testing low-power wireless devices, IoT equipment, and other battery-powered applications.
Key Features
- Two-quadrant operation: functions as both source and sink
- Voltage range: 0 to 20V
- Current capacity: 8A at ≤6V, 3A at >6V
- Output power: 60W
- Data acquisition: 500,000 samples per second with 2 µs resolution
- Measurement resolution: up to 6½ digits for voltage, current, and power
- Load recovery time: less than 30 µs
- Galvanically isolated floating channels with overload protection
- Voltage priority and current priority operating modes
- High-capacitance mode for input capacitance compensation
- FastLog high-speed data logging to USB or LAN
Applications
- Bluetooth low-energy and wireless device characterization
- Mobile phone and IoT device power supply simulation
- Sleep-mode to active-mode current transition testing
- Battery simulation for portable equipment validation
- Fast load change handling and transient response testing
Included Accessories
- Power cable
- Quick start guide
Specifications
| Easy to Use | The NGU and other instruments for the Essential portfolio can now be configured online, providing the following benefits: ▪ User-friendly and easy to navigate configurator |
| NGU201 | 3639.3763.02160 W0 V to 20 V≤ 6 V: 8 A > 6 V: 3 A |
| NGU201 | 3639.3763.02Two-quadrant source measure unit |
| Accessories | Included: Power Cable Quick Start Guide |
