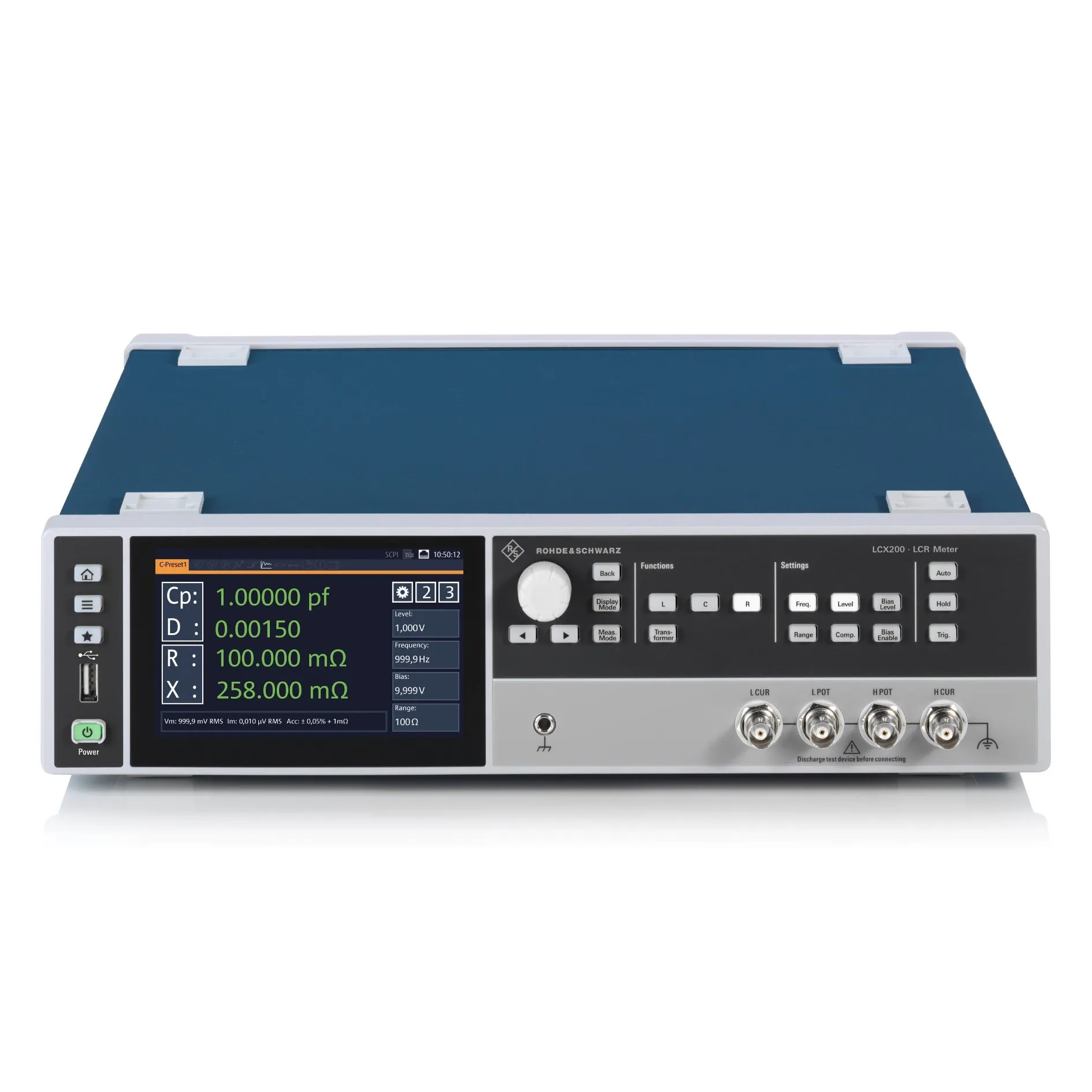

Rohde & Schwarz LCX200COM Digital LCR Meter Bundle
Request a quote
Rohde & Schwarz LCX200COM is a comprehensive LCR meter package featuring 10 MHz frequency range, advanced analysis functions, binning option, and extended DC bias.
Product details
| Model | LCX200COM (3629.8856P99) |
| Manufacturer | Rohde & Schwarz |
| Category | LCR & Impedance Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz LCX200COM is a comprehensive LCR meter package combining the LCX200 base unit with pre-configured options designed for demanding production and research applications. It includes frequency upgrade to 10 MHz, advanced analysis functions, binning capabilities, and extended DC bias, delivering maximum measurement versatility and speed.
Key Features
- Frequency range from DC to 10 MHz (pre-configured upgrade)
- Basic accuracy of ±0.05% for impedance measurements
- Basic accuracy of ±0.03° for phase measurements
- Extended DC bias voltage up to 40 V
- Advanced analysis functions for comprehensive testing
- Binning option for automated sorting and testing
- Data logging function with up to 10 samples per second
- Multiple measurement times: Fast (≤15ms), Medium (≤100ms), Slow (≤500ms)
- Selectable output impedance of 100Ω or 10Ω
Applications
- High-speed production testing with automated binning and sorting
- Advanced material characterization across wide frequency range
- Component validation and quality assurance in manufacturing
- Research applications requiring comprehensive impedance analysis
Specifications
| Selectable Frequency Range | All LCX models measure under DC conditions. The AC range already begins at 4Hz. The upper frequency limit on the LCX100 is 300kHz. In its base configuration, the LCX200 is designed for a maximum frequency of 500kHz; this frequency limit can, however, be extended to 1MHz or 10MHz. This means that the ideal instrument is available for any given application and budget. |
| Fast, Accurate and Versatile | Both LCX models combine high measurement speed, accuracy and versatile measurement capabilities. This makes them ideal for standard measurements in development, for material analysis in research as well as for fast production testing. With their broad measurement ranges, they also cover applications with extremely low and extremely high impedances. Three measurement times are available: Fast: ≤ 15ms Medium: ≤ 100ms Slow: ≤ 500ms The basic accuracy for impedance measurements is ±0.05%. and for phase measurements ±0.03° |
| Test Signals for all Requirements | Test signals can be generated from 100mV to 10V and deliver a current of up to 200mA. The instruments have a selectable output impedance of 100Ω or 10Ω. The actual current flow and the voltage applied and measured using the monitor function. |
| DC Bias | In many applications an adjustable DC bias is needed to measure C and L components at different operation points. The LCX100 and LCX200 generate a DC bias voltage of up to 10V. As an option, it is also possible to set a DC bias current (up to 200mA). DC bias voltages of up to 40V can be applied at an external connection on the rear panel (LCX-K108 option) using a standard DC power supply for example an NGA. |
| Data Logging Function | Th LCX LCR meters provide a fast logging function for recording all measured values. The data can be saved on an external USB flash drive or transferred to an external PC via USB or LAN. With a data rate of up to 10 sample/s, the measured values are available every 100ms. |
| Test Signal Frequency | DC, 4 Hz to 300 kHzDC, 4 Hz to 10 MHz (option) |
| Test Signal Voltage | 100 mV to 10 V< 1 MHz: 100 mV to 10 V > 1 MHz: 100 mV to 2 V |
| DC bias Voltage (internal) | 0 V to +10 V0 V to +10 V |
| DC bias Current (internal) | 0 mA to 200 mA0 mA to 200 mA |
| External DC bias Voltage, Input | 0 V to +40 V0 V to +40 V |
| Source Impedance | 100 Ω, 10 Ω100 Ω, 10 Ω |
| Measurement Range | 100 mΩ to 100 MΩ100 mΩ to 100 MΩ |
| Basic Accuracy for Impedance Measurements | 0.05 %0.05 % |
| LCX200 | 3629.8856.03Cp, Cs, Lp, Ls, D, Q, G, Rp, Rs, Rdc, R, X, Z, Y, Θd, Θr, B, M, N DC, 4 Hz to 500 kHz (1 MHz or 10 MHz optional) ≤ 1 MHz: 100 mV to 10 V ≤ 5 MHz: 100 mV to 2 V > 5 MHz: 100 mV to 1 V ≤ 1 MHz: 1 mA to 100 mA > 1 MHz to ≤ 5 MHz: 1 mA to 20 mA > 5 MHz: 1 mA to 10 mA 0 V - 10 V |
| LCX200 | 3629.8856.03LCR meter, 500 kHz |
