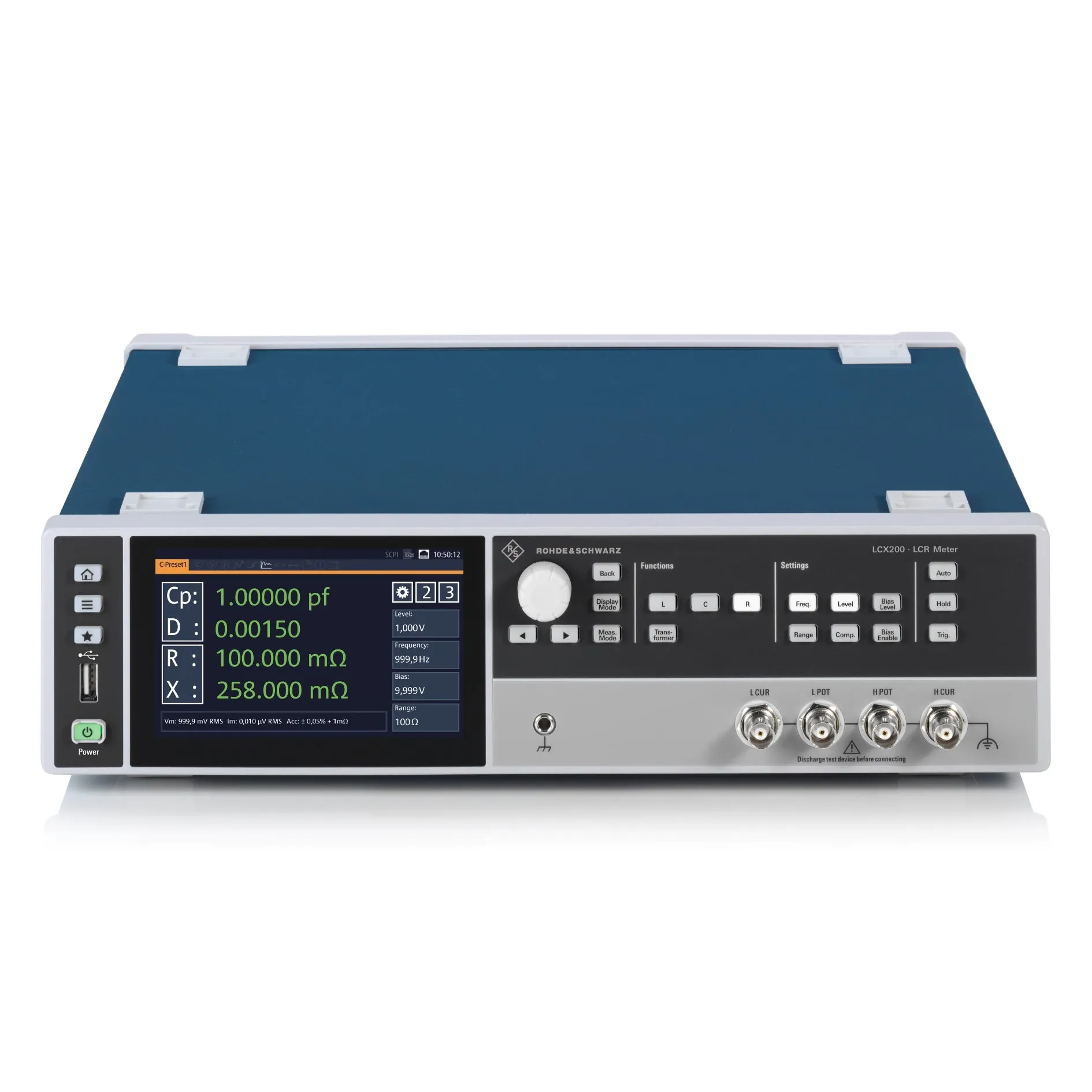

Rohde & Schwarz LCX200 Digital LCR Meter
Request a quote
Rohde & Schwarz LCX200 LCR meter spans DC to 500 kHz with upgradeable frequency to 10 MHz, ±0.05% accuracy, data logging, and adjustable bias for versatile testing.
Product details
| Model | LCX200 (3629.8856.03) |
| Manufacturer | Rohde & Schwarz |
| Category | LCR & Impedance Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz LCX200 is a versatile precision LCR meter engineered for demanding applications in research, development, and production environments. Measuring impedance from DC and 4 Hz to 500 kHz (upgradeable to 1 MHz or 10 MHz), it provides comprehensive analysis capabilities and high measurement accuracy for component characterization and material testing.
Key Features
- Frequency range from DC, 4 Hz to 500 kHz (upgradeable to 1 MHz or 10 MHz)
- Basic accuracy of ±0.05% for impedance measurements
- Basic accuracy of ±0.03° for phase measurements
- DC bias voltage up to 40 V (internal 10 V, external up to 40 V)
- Data logging function with up to 10 samples per second via USB or LAN
- Multiple measurement times: Fast (≤15ms), Medium (≤100ms), Slow (≤500ms)
- Selectable output impedance of 100Ω or 10Ω
- Measurement range from 100 mΩ to 100 MΩ
Applications
- Advanced material characterization and component analysis in research
- Development and optimization testing with variable frequency requirements
- High-speed production testing and quality assurance
- Impedance measurements across wide frequency range with DC bias
Specifications
| High Frequency (range) | 100kHz <= 1MHz |
