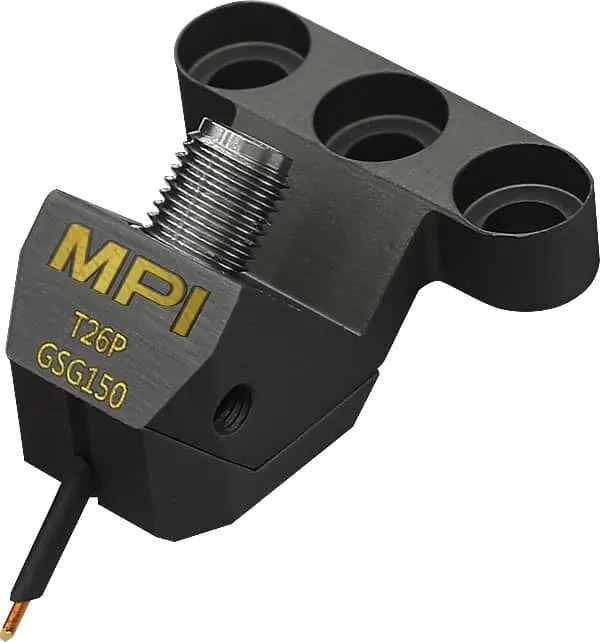

MPI T26VP-GSG150 RF Probe
Request a quote
MPI T26VP-GSG150 is a high-power 26 GHz RF probe with 50 Ω MEMS tips, GSG configuration, 150 µm pitch, supporting up to 10 W RF power.
Product details
| Model | T26VP-GSG150 |
| Manufacturer | MPI |
| Category | LCR & Impedance Analyzers |
| Availability | Made to order |
Description
Overview
The MPI T26VP-GSG150 is the high-power variant of MPI's TITAN 26 GHz RF probe family, engineered for demanding RF testing applications requiring elevated power levels. It features MEMS contact tips with exceptional electrical characteristics, making it ideal for development and testing of power RF devices and frontend MMICs.
Key Features
- Frequency range: DC to 26 GHz
- 50 Ω characteristic impedance
- RF power: up to 10 W at 10 GHz (2× higher than standard variant)
- Insertion loss: less than 0.4 dB (GSG configuration)
- Return loss: greater than 16 dB (GSG configuration)
- Ground-Signal-Ground (GSG) configuration with 150 µm pitch
- DC voltage rating: up to 250 V
- DC current rating: up to 2 A
- Thermal range: -60°C to 200°C
- MEMS contact tips for superior measurement reproducibility
Applications
- High-power RF device testing and characterization
- Power amplifier and MMIC development
- C-band, X-band, and Ku-band component testing
- Commercial wireless application development
- Silicon device and IC validation
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
