MPI MP25R MicroPositioner
Request a quote
MPI MP25R is a compact backlash-free MicroPositioner with sub-4 µm feature resolution, magnetic mounting, and 10 mm travel range for precision probe placement.
Product details
| Model | MP25R |
| Manufacturer | MPI |
| Category | LCR & Impedance Analyzers |
| Availability | Made to order |
Description
Overview

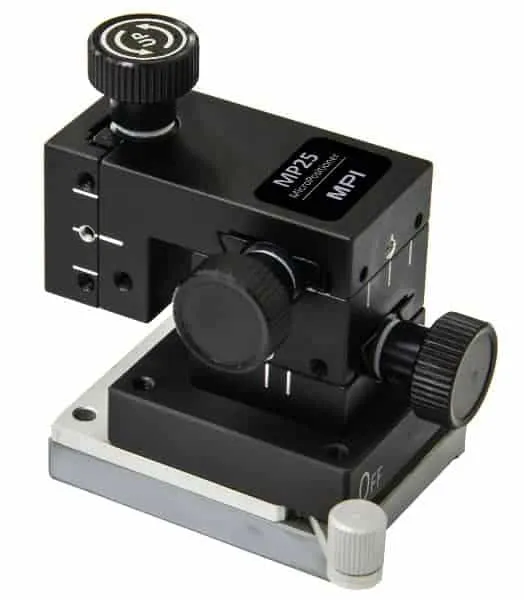

The MPI MP25R is a compact backlash-free MicroPositioner designed for precision probe placement in RF and microwave measurement applications. It features full carbon-steel construction for stable contact and superior positioning accuracy, with universal interface compatibility for adaptability across different probe arms and measurement systems.
Key Features
- Feature Resolution: less than 4 µm for precise positioning
- Travel Range: 10 mm (X/Y/Z directions)
- Screw Resolution: 500 µm (X/Y/Z)
- Magnetic mounting for quick placement and removal
- Base Stage Size: 25 mm with 55 x 40 mm footprint
- Right-hand version with ergonomic operation
- Unified Z-direction design for simplified operation
Applications
- IV/CV coaxial measurements
- Ultra-low current triaxial measurements
- Semiconductor device testing and characterization
Specifications
| Feature Resolution | < 4 µm< 3 µm< 2 µm |
| Mounting | MagneticMagneticMagnetic |
| Base Stage Size | 25 mm40 mm50 mm |
| Footprint | 55 mm x 40 mm65 x 40 mm86 x 60 mm |
| Versions | Right or LeftUnidirectionalRight and Left |
| Application | IV/CV coaxial Ultra-low current triaxial measurements Accurate IV/CV coaxial Ultra-low current triaxial and RF measurements Extreme accurate IV/CV coaxial Ultra-low current triaxial measurements Internal node probing |
| Feature Resolution | < 2 µm< 2 µm< 1 µm< 2 µm |
| Mounting | MagneticMagneticMagneticBolt-down |
| Base Stage Size | 60 mm60 mm60 mm60 mm |
| Footprint | 89 x 60 mm89 x 60 mm89 x 60 mm160 x 149 mm |
| Versions | Right and LeftRight and LeftRight and LeftUp to four E / W / N / S, Depends on system and arm configuration |
| Application | Accurate and stable RF measurementsAccurate and stable RF measurementsAccurate and stable RF measurementsAccurate and stable RF measurements |
| Feature Resolution | < 2 µm< 2 µm< 2 µm |
| Mounting | Bolt-downBolt-downBolt-down |
| Base Stage Size | 80 mm80 mm80 mm |
| Footprint | 100 x 80 mm216 x 193 mm100 x 80 mm |
| Versions | Right and LeftE/W or R/L Depends on system and arm confi- guration Right and Left |
| Application | Accurate and stable RF measurements Broadband and mmW measurements Accurate and stable broadband and mmW measurementsAccurate and stable RF, broadband and mmW measurements. Ideal for multi-line TRL calibration |
| Feature Resolution | < 2 µm< 2 µm |
| Mounting | Bolt-downBolt-down |
| Mounting Platform | 505 x 300 mm, M6 screw holes in 25 mm pitch 480 x 300 mm M6 screw holes in 25 mm pitch |
| Versions | Right and LeftRight and Left |
| Application | Accurate noise figure and load pull measurementsVector load pull with tuners and direct mounted RF probes |
