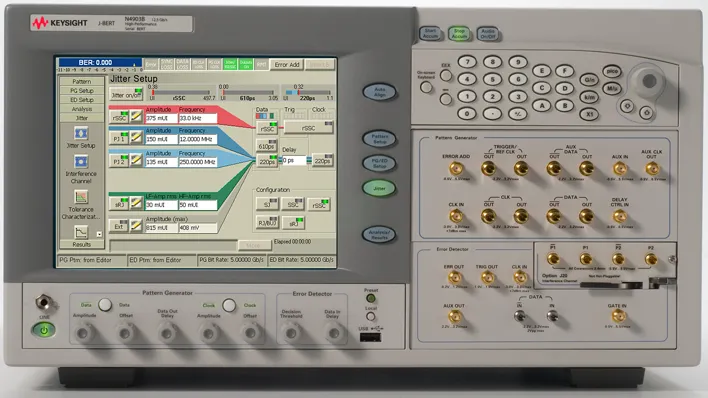

Keysight N4903B J-BERT
Request a quote
Keysight N4903B J-BERT provides high-performance serial bit error rate testing up to 12.5 Gb/s with comprehensive jitter tolerance and compliance testing for serial I/O standards.
Product details
| Model | N4903B |
| Manufacturer | Keysight |
| Category | LCR & Impedance Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N4903B J-BERT is a high-performance serial bit error rate tester designed for R&D and validation teams characterizing devices with serial I/O ports from 150 Mb/s to 12.5 Gb/s, or up to 14.2 Gb/s with extended options. It provides the most complete jitter tolerance testing for embedded and forward-clocked receiver designs, enabling engineers to validate compliance with industry-standard serial bus specifications.
Key Features
- Data rates from 150 Mb/s to 7 Gb/s, 12.5 Gb/s, or 14.2 Gb/s (with options)
- Calibrated jitter injection: RJ, RJ-LF, RJ-HF, PJ1, PJ2, SJ, BUJ, ISI, sinusoidal interference, triangular and SSC
- Built-in clock data recovery with tunable and compliant loop bandwidth
- Half-rate clocking with variable duty cycle for forward-clocked devices
- Comprehensive measurements: BER, BERT Scan, TJ with RJ/DJ separation, eye diagram, eye mask, BER contour, automated jitter tolerance, pattern capture, FER, SER
- Two adjustable data outputs with independent PRBS and pattern with 120-block pattern sequencer
Applications
- PCI Express testing and validation
- Serial-ATA (SATA/SAS) receiver characterization
- DisplayPort and USB SuperSpeed compliance
- Fibre Channel and 10 GbE/XAUI validation
- Memory bus testing (fully buffered DIMM)
- Backplane and CEI standards
Specifications
| Data Rate Range | 150 Mb/s to 7 Gb/s, 12.5 Gb/s, or 14.2 Gb/s |
| Jitter Injection | RJ, RJ-LF, RJ-HF, PJ1, PJ2, SJ, BUJ, ISI, sinusoidal, triangular, SSC |
| Calibrated Jitter | >0.5 UI |
| Data Outputs | Two adjustable outputs with independent PRBS and pattern |
| Pattern Sequencer | 120-block pattern sequencer |
| Measurements | BER, BERT Scan, TJ, eye diagram, eye mask, BER contour, automated jitter tolerance, FER, SER |
