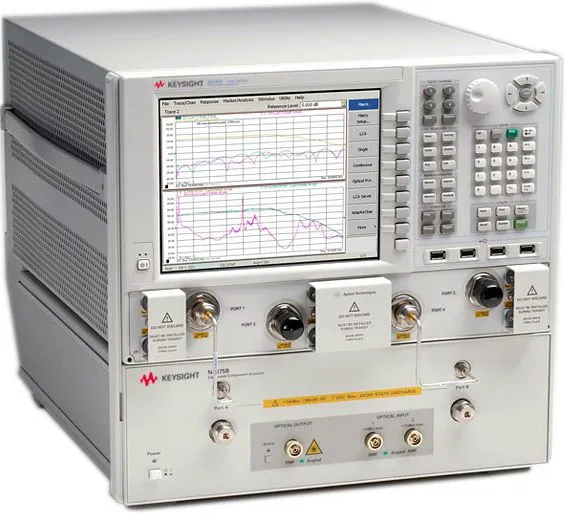

Keysight N4375D Lightwave Component Analyzer
Keysight N4375D Lightwave Component Analyzer — NIST-traceable electro-optical measurements up to 26.5 GHz for aerospace and defense applications.
Product details
| Model | N4375D |
| Manufacturer | Keysight |
| Category | LCR & Impedance Analyzers |
| Availability | Made to order |
Description
Overview
Keysight N4375D is a single-mode lightwave component analyzer designed for electro-optical component characterization up to 26.5 GHz. Based on the proven 5222A series network analyzer platform with 2-port or 4-port configuration, it provides NIST-traceable S-parameter measurements for electro-optical components and is ideal for Radio over Fiber (RoF) and aerospace and defense applications.
The N4375D replaces the industry standard 8703A/B series and supports modulation frequencies up to 26.5 GHz at 1310 nm and 1550 nm wavelengths, or at custom wavelengths via external optical input. Combined with the optional N4691B electronic calibration kit, setup time is minimized, allowing focus on component development.
Key Features
- NIST-traceable relative responsivity specification
- External optical source input for wavelengths between 1300–1600 nm
- Guaranteed responsivity specification to 26.5 GHz with fast electrical calibration
- Built-in optical power meter
- User-selectable transmitter power
- SCPI remote control
- Extended calibration support for advanced test setups
Applications
- Electro-optical component S-parameter and responsivity characterization
- Radio over Fiber (RoF) system development and testing
- Aerospace and defense electro-optical testing
Specifications
| Feature | Parameter |
| Absolute Responsivity Accuracy at 26.5 GHz | ± 1.8 dBe, 1.5 dBe (typical) at 1550 nm ± 2.2 dBe, 1.5 dBe (typical) at 1310 nm |
| Relative Responsivity Accuracy at 26.5 GHz | ± 0.8 dBe, ± 0.5 dBe (typical) |
| Noise Floor at 26.5 GHz | < -86 dB (W/A) for E/O measurements < -76 dB (A/W) for O/E measurements |
| Transmitter Wavelength | (1310 ±20) nm (1550 ±20) nm |
