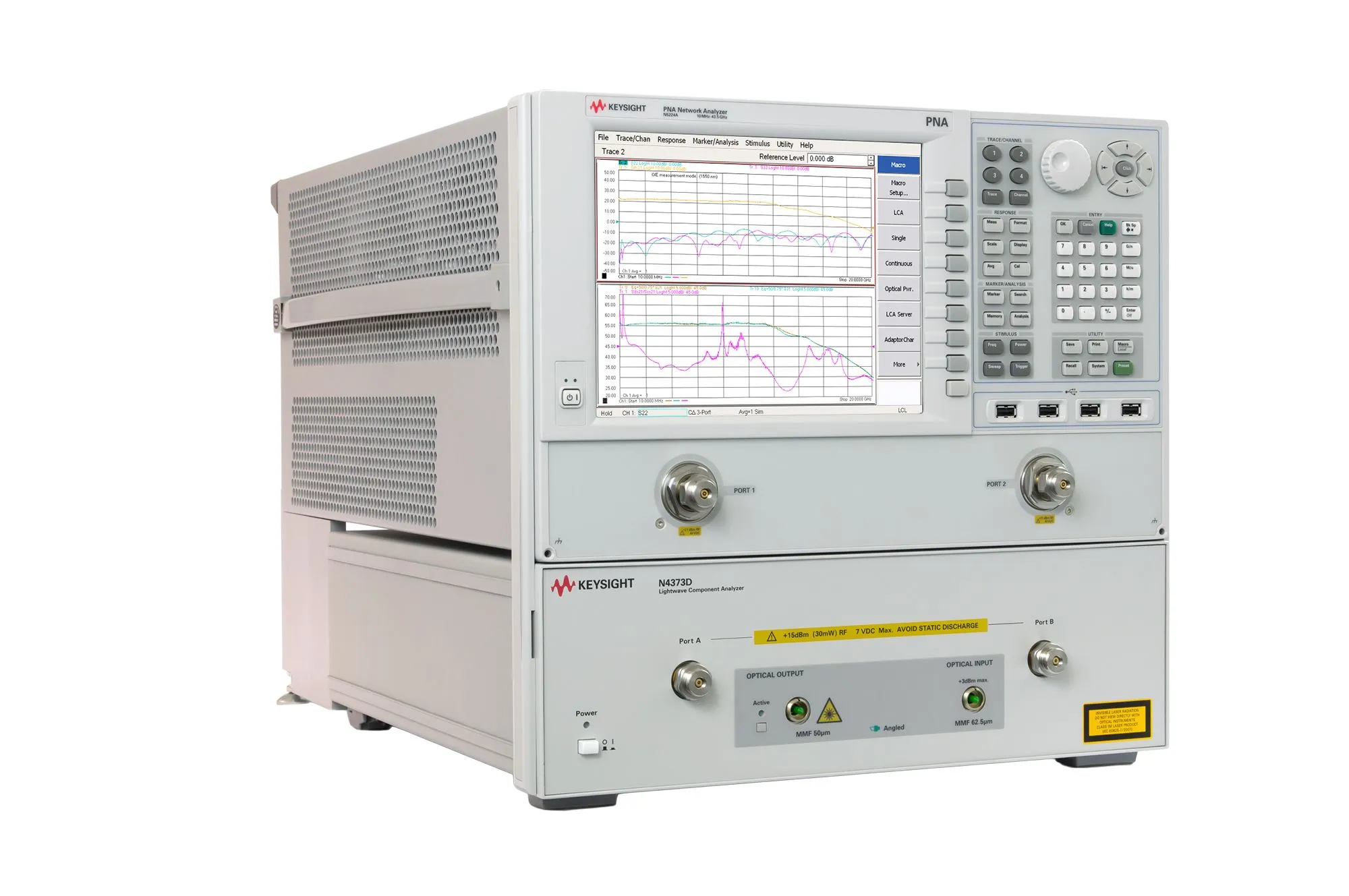

Keysight N4373D Lightwave Component Analyzer
Request a quote
Keysight N4373D is a lightwave component analyzer for electro-optical testing up to 67 GHz with high-accuracy S-parameter measurements and integrated average power meter.
Product details
| Model | N4373D |
| Manufacturer | Keysight |
| Category | LCR & Impedance Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N4373D is a lightwave component analyzer designed for testing electro-optical components up to 67 GHz. This turn-key measurement solution is ideal for 56 Gbaud coherent transmission, Radio over Fiber (RoF), and aerospace and defense (A&D) electro-optical testing applications. The N4373D is traceable to international standards and provides guaranteed specifications for electro-optical responsivity S-parameter measurements.
Key Features
- Frequency response up to 67 GHz with high measurement accuracy
- Built-in average power meter for fast transmitter power testing
- PMF optical output for reliable modulator testing
- User-selectable optical transmitter output power
- SCPI remote control capability
- Automated electrical calibration reduces setup time
Applications
- Electro-optical component characterization and testing
- 56 Gbaud coherent transmission verification
- Radio over Fiber (RoF) applications
- Aerospace and defense (A&D) electro-optical testing
- Modulator and receiver testing
Specifications
| Absolute Frequency Response Accuracy | < 0.9 dBe at 50 GHz (typical) < 1.3 dBe at 67 GHz (typical) |
| Relative Frequency Response Accuracy | < 0.5 dBe at 50 GHz (typical) < 1.3 dBe at 67 GHz (typical) |
| Noise Floor | < - 59 dB (W/A) at 67 GHz for E/O measurements < - 55 dB (A/W) at 67 GHz for O/E measurements |
