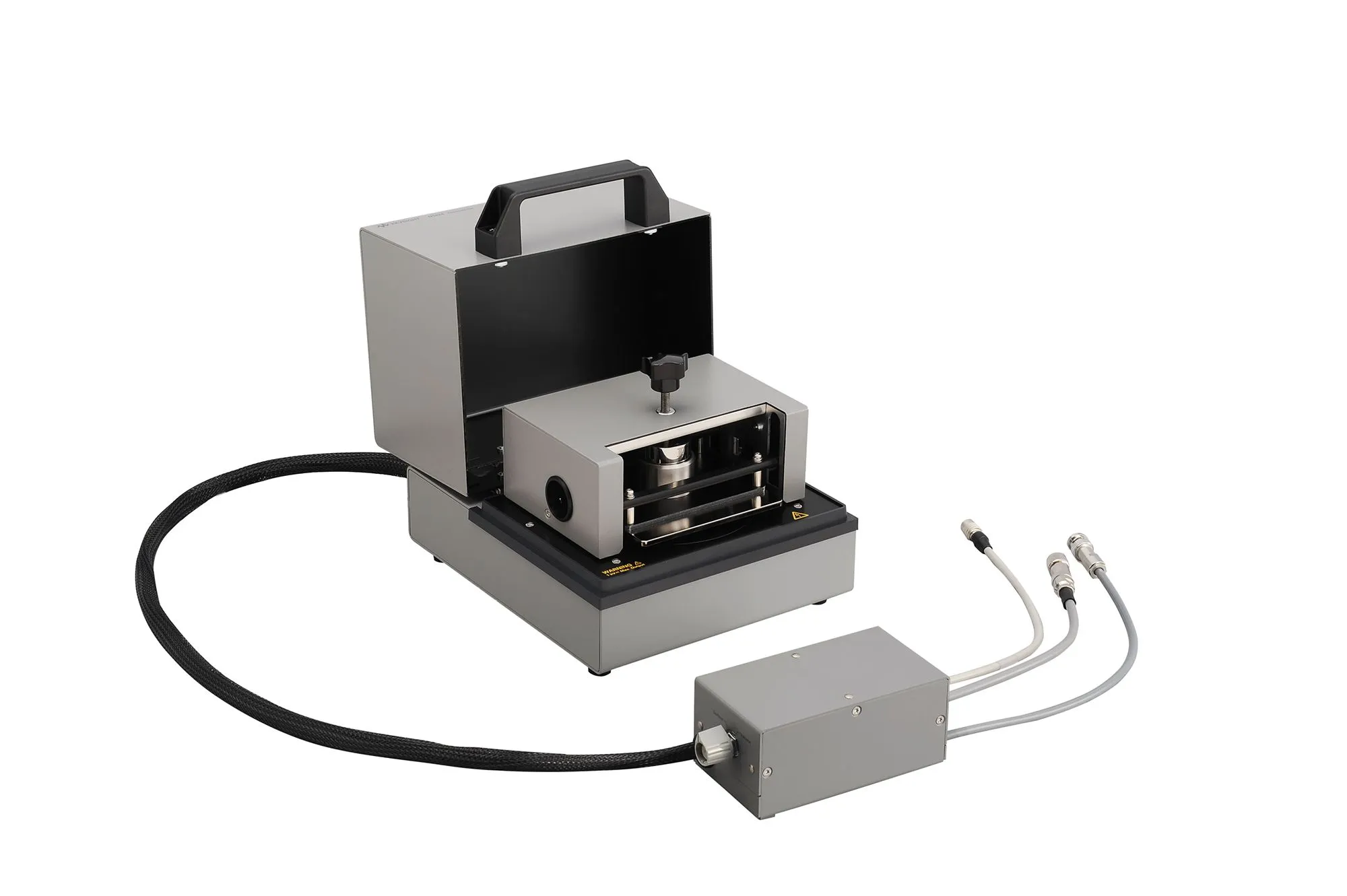

Keysight N1424B Resistivity Cell
Request a quote
Keysight N1424B resistivity cell with 26/50 mm electrodes for measuring insulation resistance up to 10 PΩ per ASTM D-257.
Product details
| Model | N1424B |
| Manufacturer | Keysight |
| Category | LCR & Impedance Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N1424B is a resistivity cell designed to measure surface and volume resistance and resistivity of insulation materials. It operates with the B2985A/B2987A Electrometer/High Resistance Meter and requires the N1413A High Resistance Meter Fixture Adapter for connection.
Key Features
- Multiple electrode sizes (26 and 50 mm diameters) for ASTM D-257 and similar insulation measurement standards
- Triaxial input terminal configuration minimizes external noise for accurate high resistance measurement
- Measures high resistance up to 10 PΩ with precision
- Built-in interlock circuit enables safe high voltage measurements
Applications
- Insulation resistance testing of materials
- Surface and volume resistivity measurement
- Compliance testing to ASTM D-257 standards
Specifications
| N1424B | Resistivity Cell for N1413 with B2980 Series(26/50 mm Diameter Electrodes) |
