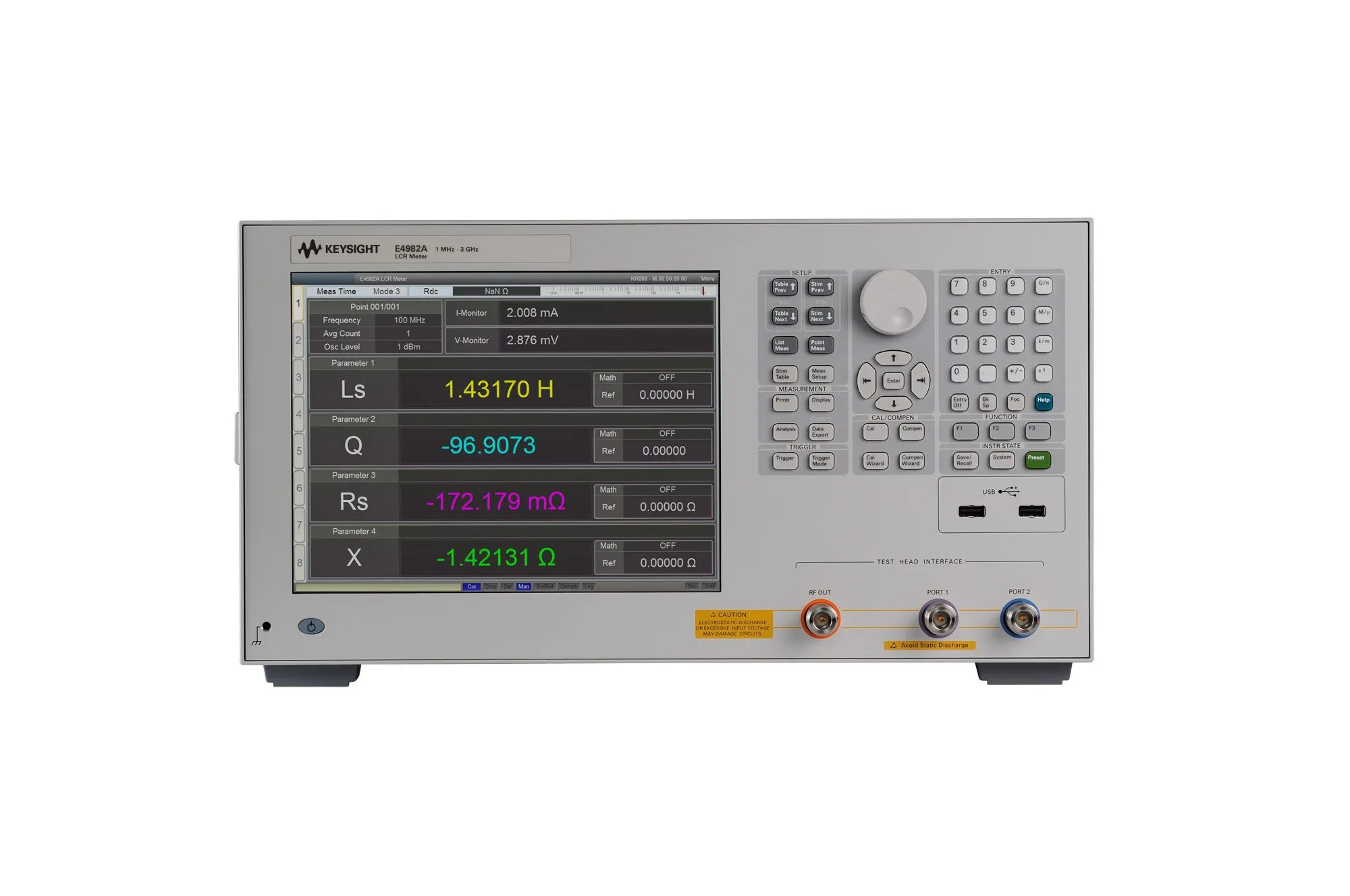

Keysight E4982A LCR Meter
Request a quote
Keysight E4982A LCR Meter with 1 MHz to 3 GHz frequency range, 0.8% basic accuracy, and high-speed measurements for passive component testing.
Product details
| Model | E4982A |
| Manufacturer | Keysight |
| Category | LCR & Impedance Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight E4982A is a precision LCR meter designed for passive component manufacturing, particularly for high-frequency impedance testing of SMD inductors and EMI filters. It offers multiple frequency options from 1 MHz up to 3 GHz with excellent measurement accuracy and speed.
Key Features
- Four frequency options: 1 MHz to 300 MHz / 500 MHz / 1 GHz / 3 GHz (upgradable)
- 0.8% basic accuracy with exceptional measurement repeatability
- Wide impedance measurement range from 140 mΩ to 4.8 kΩ
- High-speed measurement: 0.9 ms (Mode 1), 2.1 ms (Mode 2), 3.7 ms (Mode 3)
- Small test head compatible with 4287A
- List measurement capabilities
- Versatile PC connectivity (GPIB, LAN, USB)
- SCPI command compatibility with 4287A
Applications
- SMD inductor impedance testing
- EMI filter characterization
- Passive component manufacturing quality control
- R&D and component evaluation
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| High Frequency (range) | 100MHz <= 1GHz |
