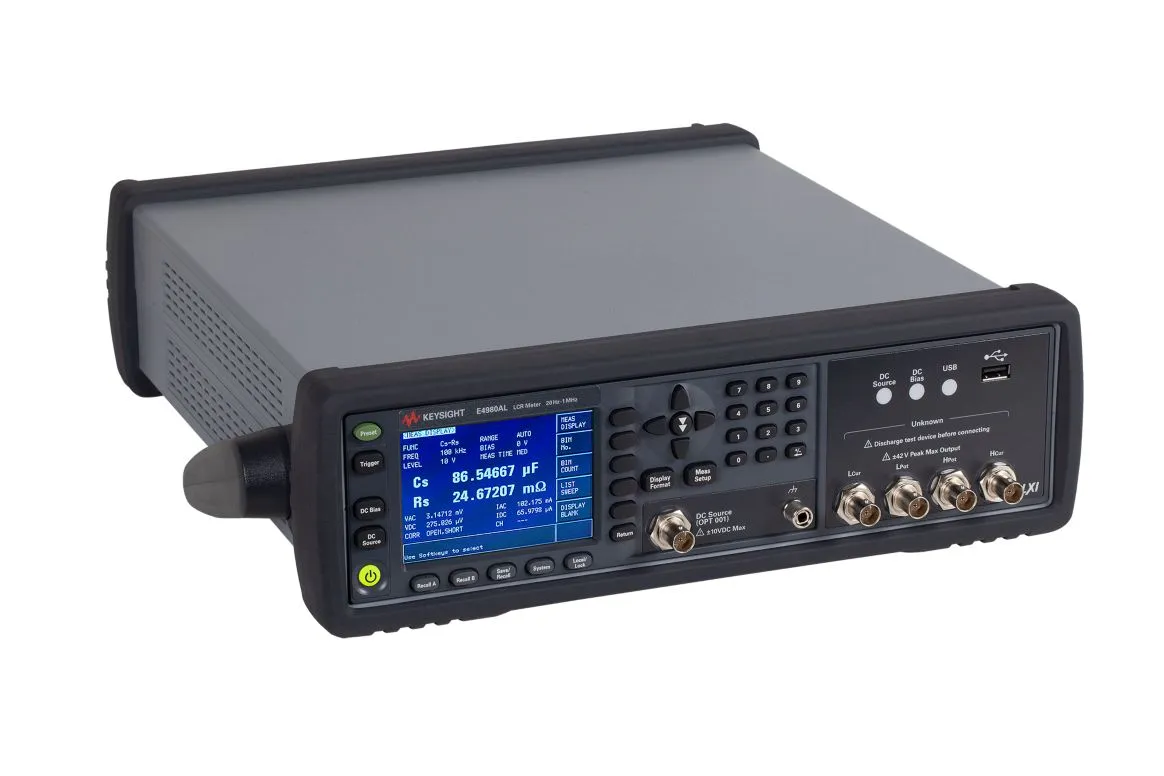

Keysight E4980AL Precision LCR Meter

Overview

The Keysight E4980AL is an industry-standard precision LCR meter providing exceptional combination of accuracy, speed, and versatility for a wide range of component measurements. Available in three frequency configurations (300 kHz, 500 kHz, and 1 MHz), it offers flexible options to match specific application requirements. The E4980AL is the fundamental tool for research and development, manufacturing test, and materials characterization.

With fast measurement speed and outstanding performance across both low and high impedance ranges, the E4980AL supports versatile connectivity through LAN, USB, and GPIB interfaces. The optional N1500A-005/006 materials measurement suite enables ease-of-measurements from fixture setup to report generation.

Key Features

• Frequency: 20 Hz to 300 kHz/500 kHz/1 MHz with 4-digit resolution
• Basic accuracy: 0.05% with superior measurement repeatability
• Test signal: 100 µV to 2 Vrms, 1 µA to 20 mA variable
• DC bias: 1.5/2 V
• Auto-level control and DC resistance measurement
• 201-point list sweep capability
• Frequency upgradability for flexibility
• Versatile PC connectivity: LAN, USB, and GPIB

Applications

• Research and development of electronic components
• Manufacturing test and quality assurance
• Materials characterization and analysis
• High-precision impedance measurements
