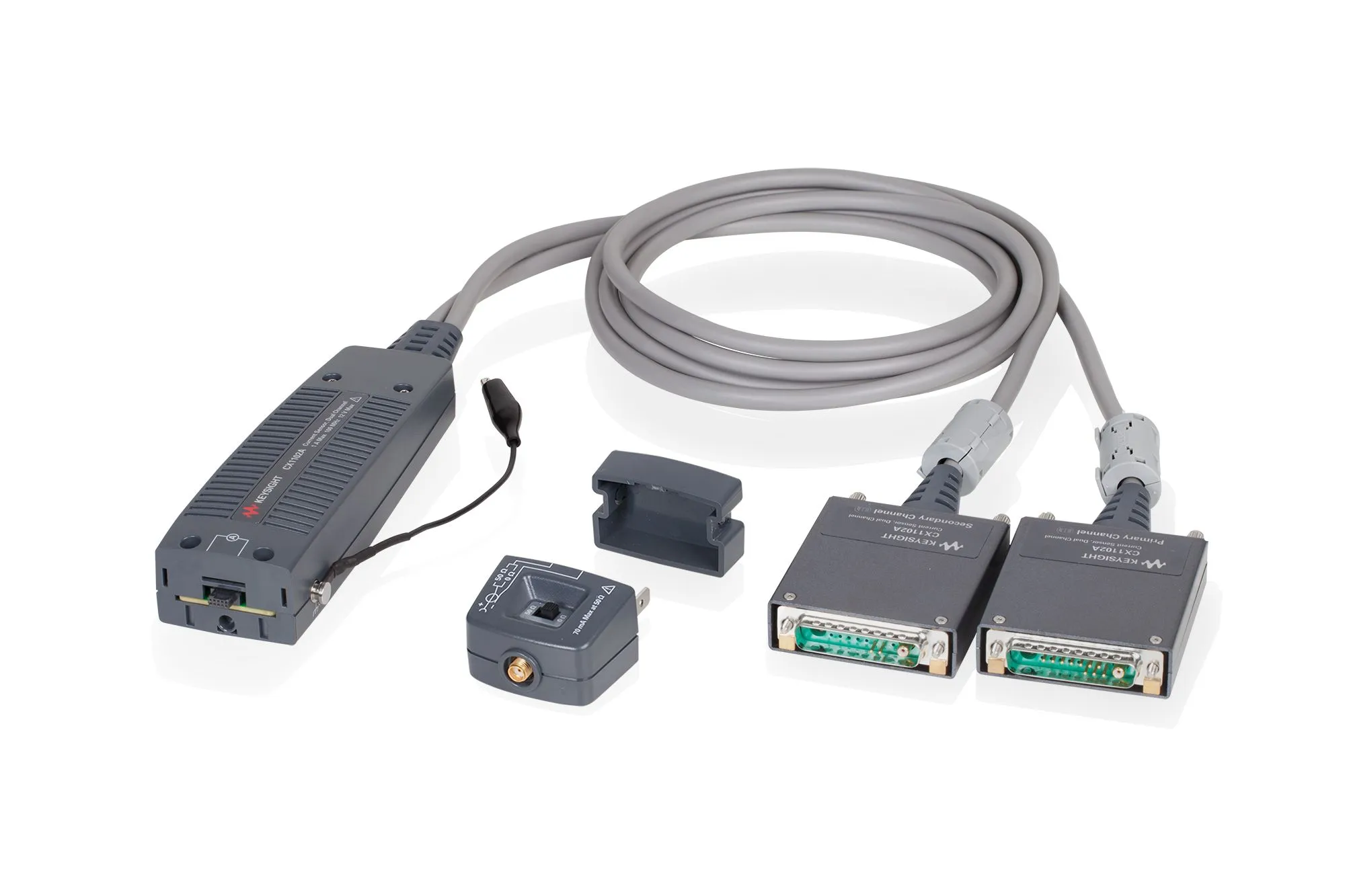

Keysight CX1102A Dual Channel Current Sensor
Request a quote
Keysight CX1102A is a dual-channel current sensor with 40 nA to 1 A range, 100 MHz bandwidth, and ±12 V common mode voltage range.
Product details
| Model | CX1102A |
| Manufacturer | Keysight |
| Category | LCR & Impedance Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight CX1102A is a dual-channel current sensor designed for the CX3300 series device current waveform analyzer. It enables simultaneous measurement on two independent channels with synchronized operation and a 100-fold range difference between primary and secondary channels. The sensor measures currents from 40 nanoamperes to 1 ampere with 100 MHz bandwidth and ±12 V common mode voltage range, supporting measurement of wide dynamic range current waveforms typical in low-power wireless devices and microcontrollers.
Key Features
- Dual-channel synchronized current measurement
- Measures more than 100 dB wide dynamic range
- Current waveform measurements from 40 nA to 1 A
- Maximum bandwidth: 100 MHz
- Common mode voltage range: ±12 V
- Low input resistance: 410 mΩ typical or 50 Ω typical
- Wideband noise suppressed measurement technology
Applications
- Low-power wireless device current profiling during sleep and active states
- Microcontroller power consumption analysis with wide dynamic range
- Battery-powered circuit evaluation
- Power electronics testing with varied current levels
Included Accessories
- CX1203A Coaxial Termination Sensor Head
- Connection cables
Specifications
| High Frequency (range) | 10MHz <= 100MHz |
