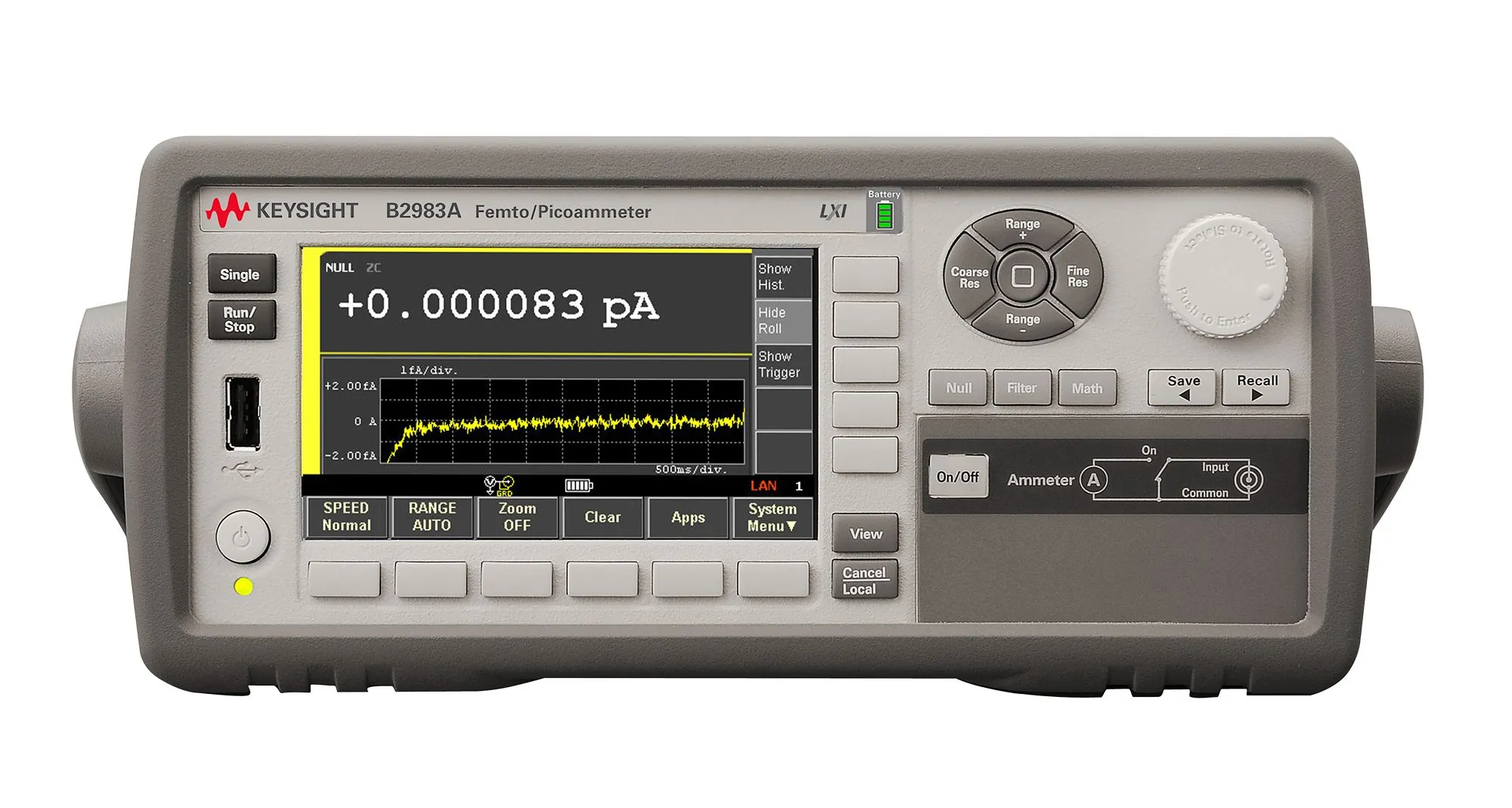

Keysight B2983A Femto/Picoammeter
Request a quote
Keysight B2983A is a battery-powered graphical femto/picoammeter with 0.01 fA resolution, 7 hours battery life, and AC noise-free measurements for low-current characterization.
Product details
| Model | B2983A |
| Manufacturer | Keysight |
| Category | LCR & Impedance Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight B2983A is a battery-powered graphical femto/picoammeter offering exceptional measurement performance with 0.01 fA (10-17 A) minimum resolution. Battery operation eliminates AC power line noise, enabling low-level measurements that were previously impossible. It features a 4.3-inch color LCD with graphical user interface that provides trend charts, histograms, and real-time statistical analysis, allowing users to capture transient behavior and characterize materials and components without external software.
Key Features
- 0.01 fA (10-17 A) minimum measurement resolution with 6.5 digits accuracy
- 2 pA to 20 mA current measurement ranges
- Battery operation for up to 7 hours of noise-free measurements
- Less than 20 μV burden voltage in lowest current range
- High-speed reading rate up to 20,000 readings per second
- 4.3-inch color LCD with graphical user interface
- Graphical viewing modes: Meter, Graph, Histogram, Roll View
- Auto navigation for optimal range and aperture selection
- Real-time noise monitoring for measurement setup verification
- Versatile interface: USB, LAN, GPIB, LXI Core
- Optional Setup Integrity Checker function
- Free PC control software included
Applications
- Material science: biomaterials, ceramics, polymers, semiconductors, nanomaterials
- Device and component characterization: sensors, transistors, capacitors
- Low-current electromechanical measurements
- Electrochemical analysis requiring noise-free operation
Specifications
| High Frequency (range) | DC <= 1kHz |
