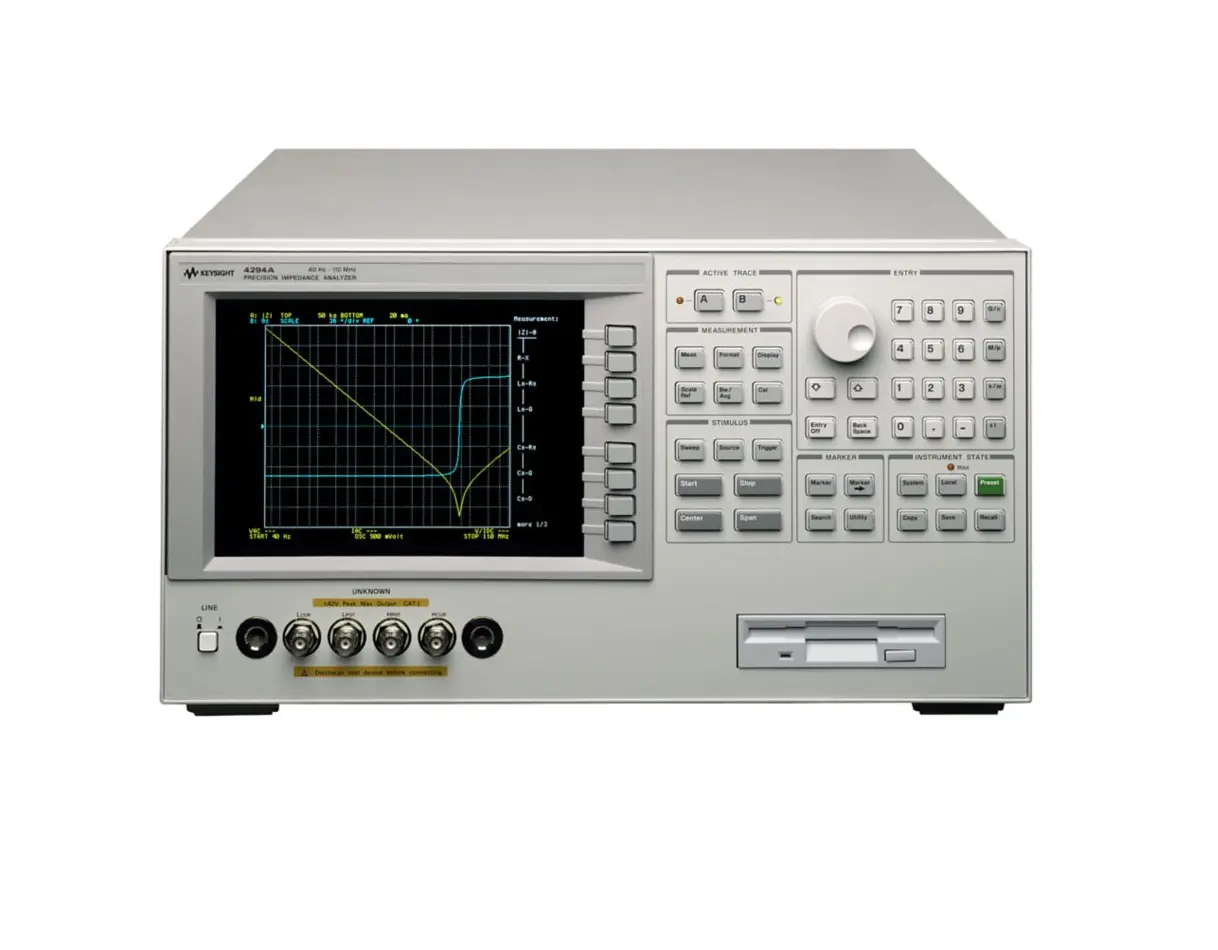

Keysight 4294A Precision Impedance Analyzer
Request a quote
Keysight 4294A Precision Impedance Analyzer covers 40 Hz to 110 MHz with ±0.08% basic accuracy for components and circuits.
Product details
| Model | 4294A |
| Manufacturer | Keysight |
| Category | LCR & Impedance Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight 4294A is a precision impedance analyzer providing an integrated solution for efficient impedance measurement and analysis of components and circuits. It covers a broad test-frequency range from 40 Hz to 110 MHz with exceptional accuracy, making it suitable for design verification, qualification, quality control, and production testing applications.
Key Features
- Frequency range: 40 Hz to 110 MHz
- Basic accuracy: ±0.08%
- Signal level range: 5mV to 1Vrms or 200µA to 20mArms
- DC bias range: 0V to ±40V or 0mA to ±100mA
- Excellent High Q/Low D accuracy for low-loss component analysis
- Advanced calibration and error compensation functions
- Connectivity: LAN, Printer, VGA, GPIB ports
Applications
- Design and circuit development
- Component qualification and characterization
- Quality control and compliance testing
- Production testing of electronic components
- In-fixture device measurement with advanced error compensation
Specifications
| High Frequency (range) | 10MHz <= 100MHz |
