Keysight 16198A SMD Test Fixture
Request a quote

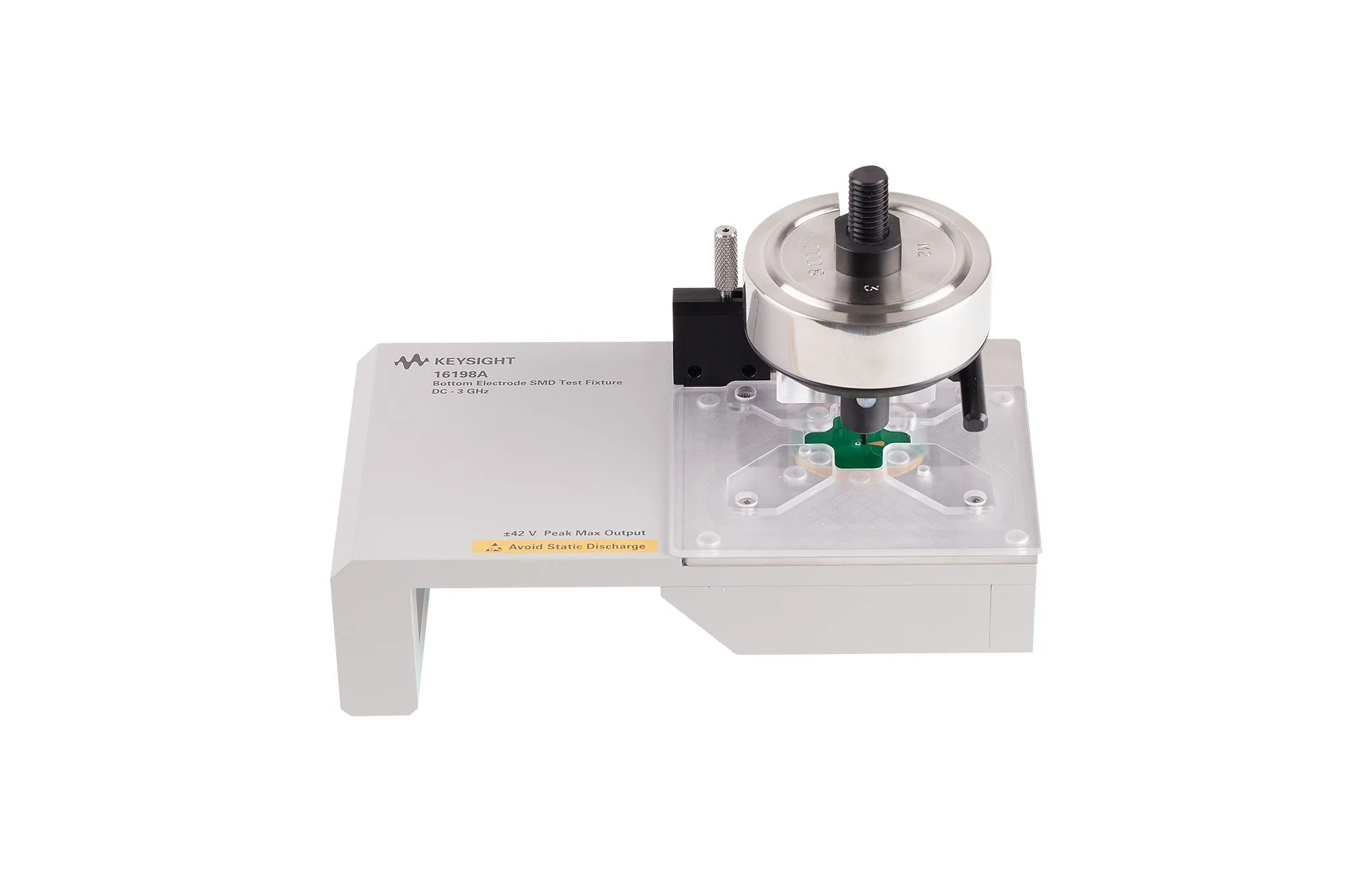

Keysight 16198A is an SMD test fixture designed for impedance evaluation of bottom electrode components in 0201 and 0402 sizes up to 3 GHz.
Product details
| Model | 16198A |
| Manufacturer | Keysight |
| Category | LCR & Impedance Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight 16198A is an SMD test fixture purpose-built for impedance evaluations of bottom electrode components in very small form factors. It achieves stable frequency characteristics up to 3 GHz and provides highly repeatable measurements for 0201 (mm) and 0402 (mm) size devices.
Key Features
- Support for very small SMD sizes: 0201 (mm) and 0402 (mm)
- Stable frequency characteristics up to 3 GHz
- Maximum voltage capability: ±40V peak (AC+DC)
- Operating temperature range: -55°C to 85°C
- Highly repeatable measurement results
Applications
- Bottom electrode SMD impedance evaluation
- Small form factor component characterization
- RF impedance testing and quality assurance
Specifications
| Supported SMD Sizes | 0201 (mm) and 0402 (mm) |
| Frequency Range | DC to 3 GHz |
| Maximum Voltage | ±40V peak max. (AC+DC) |
| Operating Temperature | -55°C to 85°C |
