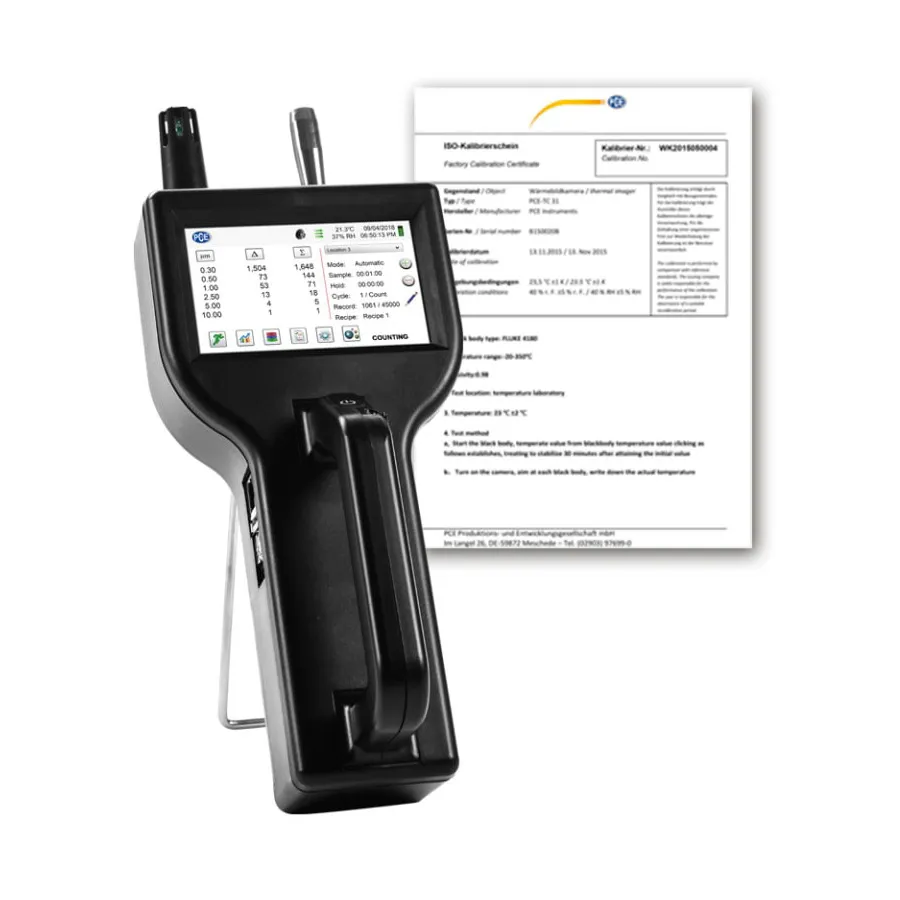

PCE Instruments PCE-PQC 13US is a handheld particle counter measuring 0.5–25 µm with NIST-traceable calibration, 3 channels, touchscreen display, and 45,000-record memory.
Product details
| Model | PCE-PQC 13US |
| Manufacturer | PCE Instruments |
| Category | Indoor Air Quality Meters |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-PQC 13US is a handheld particle counter designed to measure airborne particle concentrations across a 0.5–25 µm range. This portable, lightweight device with built-in kickstand uses optical laser technology to detect and count particles such as dust, soot, pollens, and aerosols, providing real-time data essential for indoor air quality assessment and pollution monitoring.
Key Features
- Measuring range: 0.5–25 µm with factory calibration at 0.5, 1.0, and 5.0 µm
- Three measuring channels with upper two adjustable
- 50% counting efficiency at 0.5 µm, 100% efficiency at >0.75 µm (per JIS standard)
- Handheld, portable design with color touchscreen display and graphing capability
- NIST-traceable calibration certificate (ISO 21501-4 compliant)
- Internal memory capacity of 45,000 records
- Multiple operating modes: real-time, cumulative, differential, and mass concentration
- Data connectivity via Ethernet and USB with included PC software
Applications
- Cleanroom and pharmaceutical manufacturing quality control
- HVAC system performance validation and energy efficiency assessment
- Indoor air quality monitoring in homes, offices, and commercial buildings
- Environmental and industrial pollution research
- Laboratory and research air quality testing
Included Accessories
- Isokinetic probe
- Cleaning filter
- Li-Ion rechargeable battery
- PC software for data download
- USB cable
- Power supply/battery charger
- Calibration certificate (NIST-traceable)
- Instruction manual
Specifications
| Series | PCE-PQC 1xUS Series |
| Battery Type | Li-Ion |
| Display Scale | 480x272 |
| Display Size | 4.3" |
| Flow Rate | 0.1 CFM |
| Height | 10.00" |
| IO Interface | LAN / Ethernet, RS-232, RS-485, USB Host, Wifi, USB |
| Length | 5.08" |
| Memory | Internal Memory |
| Power Supply | 110/240V AC 50/60 Hz, Battery Powered |
| Safety Rating | CE |
| Special Features | Automatic, manual, real-time, cumulative / Differential, mass concentration, Factory Calibration -NIST Calibration |
| Warranty | 2 Years |
| Width | 4.49" |
