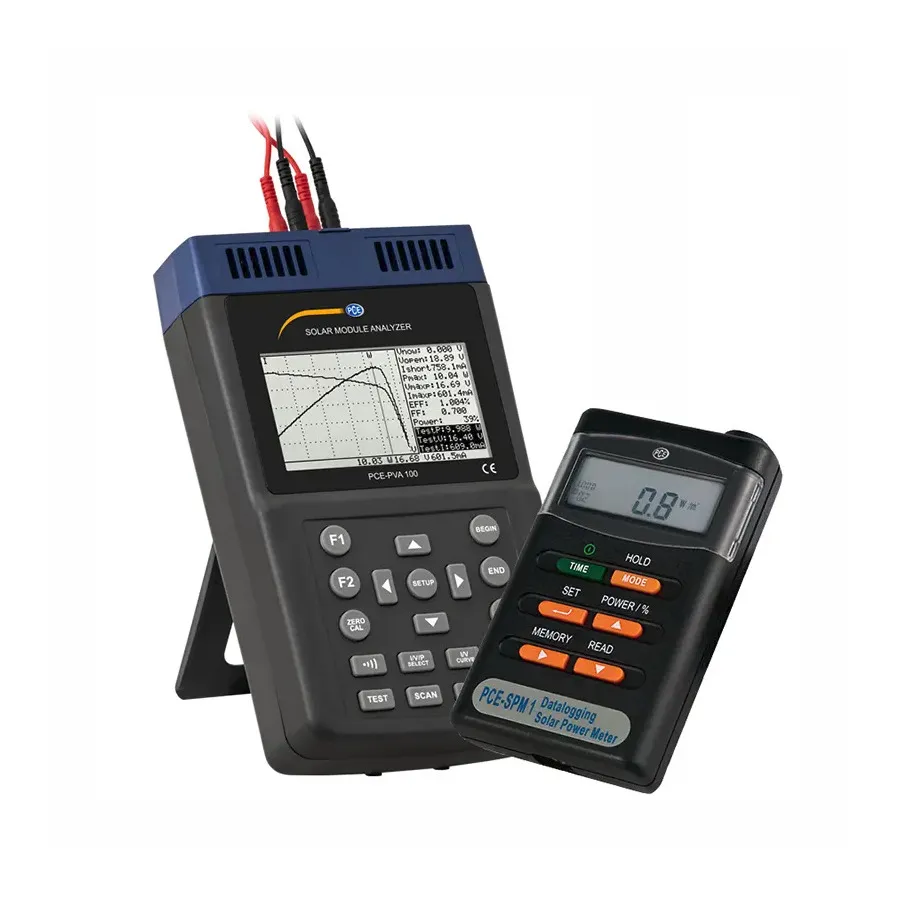

PCE Instruments PCE-PVA 100-SPM 1-KIT Photovoltaic Testing Kit
Request a quote
PCE Instruments PCE-PVA 100-SPM 1-KIT photovoltaic testing kit with solar analyzer (0–60V/0–12A), irradiance meter, 32,000-record memory, and PC software.
Product details
| Model | PCE-PVA 100-SPM 1-KIT |
| Manufacturer | PCE Instruments |
| Category | Handheld Multimeters |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-PVA 100-SPM 1-KIT is a comprehensive photovoltaic testing solution combining two instruments: the PCE-PVA 100 photovoltaic analyzer and the PCE-SPM 1 solar irradiance meter. This kit enables complete solar system evaluation from module characterization to on-site irradiance measurement. It is designed for photovoltaic engineers, architects, technicians, and research facilities developing and optimizing solar installations.
Key Features
- PVA 100 Analyzer: 0–60V / 0–12A DC measurement with 100-record memory and three testing modes
- SPM 1 Solar Meter: 0–2000 W/m² solar irradiance measurement with 32,000-record internal data logger
- Combined internal memory: Up to 132,000 total measurement records
- Automatic characteristic curve generation for solar modules
- Efficiency and fill factor calculation capabilities
- Large 4.8-inch LCD display on analyzer with switchable views
- Weatherproof plastic housing on solar meter for outdoor use
- Monocrystalline silicon solar cell sensor with automatic temperature correction
- Data connectivity: USB and RS-232 interfaces with included PC software
- Measurement data compatibility: Long-term monitoring across both devices
SPM 1 Solar Meter Applications
- Direct solar measurement: Measure irradiance at specific locations to verify PV module efficiency or solar thermal system performance
- System simulation: Simulate temperature, power, voltage, and current of PV modules in combination with the analyzer
- Long-term monitoring: Continuous measurement campaigns with 32,000-record data logger for trend analysis
PVA 100 Measurement Modes
- Automatic Mode: Generates characteristic curves automatically for rapid system assessment
- Manual Mode: User-defined current parameters for detailed testing and troubleshooting
- One-Point Measurement: Verify specific current values at set voltages
Included Accessories
- PCE-PVA 100 photovoltaic analyzer
- PCE-SPM 1 solar measuring device with integrated sensor
- Optical USB cable and RS-232 PC cable
- 2× Kelvin clamps and 2× safety measuring leads (100 mm)
- 2× Li-ion battery sets (one for analyzer, four for solar meter)
- Mains power adapter
- Device carrying bag
- PC software for both instruments
- Instruction manual
Specifications
| Series | PVA Series |
| Display Type | LCD |
| IO Interface | RS232 |
