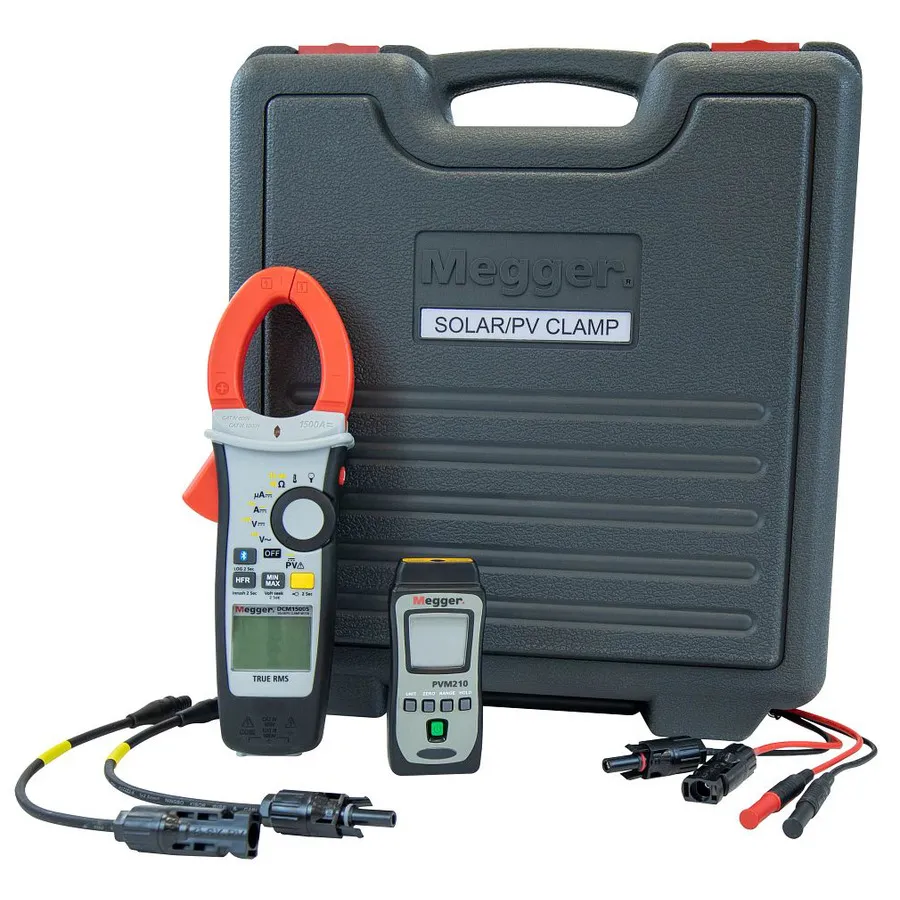

Megger PVK350 Photovoltaic Test Kit

Overview

The Megger PVK350 is a complete photovoltaic installation and commissioning test kit that combines three professional test instruments and specialized leads into a single protective hard carry case. Designed for electricians and engineers installing, commissioning, and testing photovoltaic systems, the kit provides all additional instrumentation required beyond standard electrician tools.

Key Features

• DCM1500S solar clamp meter: 2000V DC, 1500V AC TRMS, 1500A AC/DC with auto-ranging
• PVM210 irradiance meter: 3.75 digit LCD display, 1999 W/m² range, pocket-sized with camera mount
• AVO410 True RMS multimeter: 6000-count backlit display, CAT IV 600V rating, resistance/frequency/capacitance modes
• Specialized PV test leads: PVHV1 and PVHV2 high-voltage sets plus PV connector adapters
• Hard protective carry case for transport and storage

Applications

• Photovoltaic system installation and commissioning
• On-site testing and verification of solar installations
• Solar panel short-circuit current calculation
• Optimal panel positioning and incident angle assessment

Included Accessories

• DCM1500S clamp meter
• PVM210 irradiance meter
• AVO410 True RMS multimeter
• DCM 4mm lead set with probes and clips
• PVHV1 leads (4mm plugs)
• PVHV2 leads (PV plugs)
• PV test leads (2 sets)
• TP100 thermocouple probe
• Batteries
• Hard carry case
