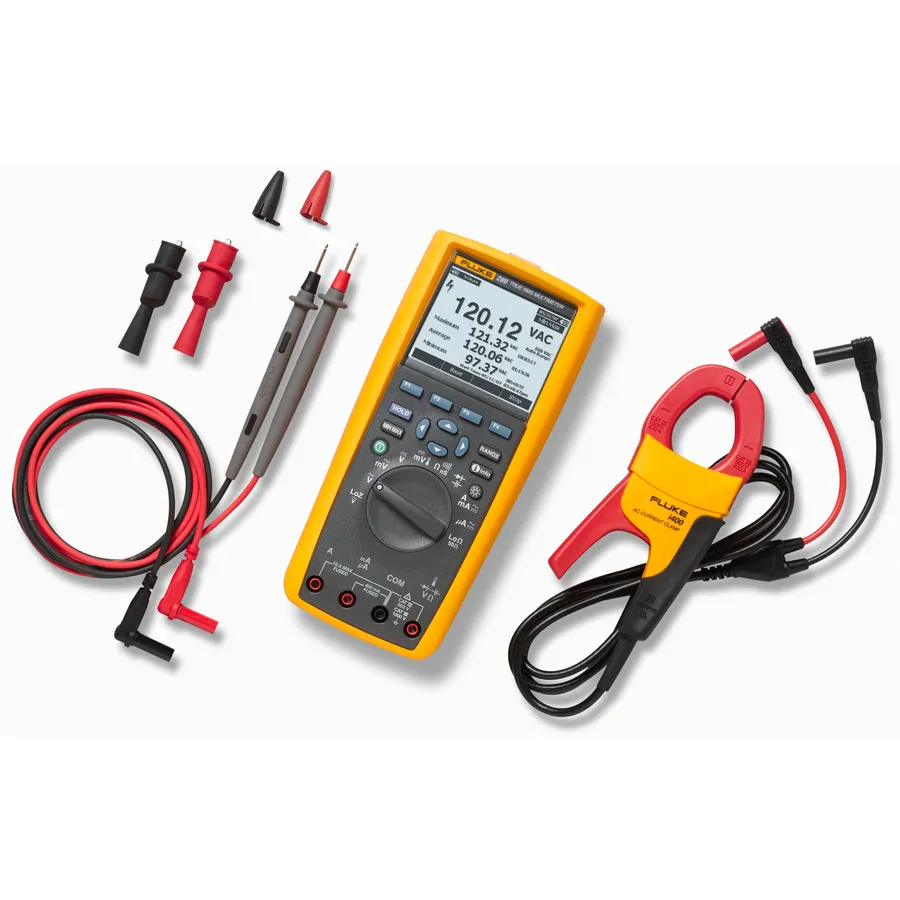

Fluke FLUKE-289/IMSK Data Logging Multimeter with i400 AC Current Clamp
Request a quote
Fluke FLUKE-289/IMSK service kit pairs the true-RMS data logging multimeter with the i400 AC current clamp for non-invasive measurements up to 400 A.
Product details
| Model | FLUKE-289/IMSK |
| Manufacturer | Fluke |
| Category | Handheld Multimeters |
| Availability | Made to order |
Description
Overview
The Fluke 289/IMSK industrial service combo kit combines the next-generation data logging multimeter with the i400 AC current clamp, providing a complete solution for industrial troubleshooting and maintenance. This integrated system enables technicians to measure high currents non-invasively while simultaneously capturing voltage, resistance, and other parameters for comprehensive electrical system analysis and diagnostics.
Key Features
- True-RMS AC voltage and current measurements for accurate readings on complex signals and non-linear loads
- 0.025% basic DC accuracy with manual and automatic ranging
- 100 kHz AC bandwidth to capture high-frequency signals
- Data logging with graphical TrendCapture for analyzing logged sessions on-device
- 50,000 count, 320x240 dot matrix display with white backlight
- LoZ (low impedance) voltage function to eliminate false ghost voltage readings
- Low Pass filter for accurate measurements on adjustable-speed motor drives
- 50 ohm range with 1 mΩ resolution for motor winding resistance testing
- i400 AC current clamp measures AC current up to 400 A non-invasively
- Flexible, heat-resistant i400 test leads with alligator clips
- Soft, non-slippery i400 over-mold handle prevents accidental contact with live wiring
- i400 maximum conductor diameter: 32 mm
- i400 voltage measurement range: up to 1000 V AC/DC
- i400 frequency measurement: up to 1000 kHz maximum
- i400 resistance measurement: up to 500 MΩ
- i400 direct current measurement: up to 10 A AC/DC
- Safety rated CAT III 1000 V and CAT IV 600 V for added protection
- CE and CSA approved
Applications
- Industrial electrical maintenance and troubleshooting
- Power distribution system analysis and load measurements
- Three-phase motor and VFD diagnostics
- Plant automation control circuit testing
- Service calls requiring both current and voltage measurements without circuit disconnection
- Unattended system monitoring with comprehensive data logging
Included Accessories
- Fluke 289 multimeter with TL71 test leads and AC175 alligator clips
- Fluke i400 AC current clamp with flexible leads and alligator clips
- Amp jack plugs
- Six AA batteries (installed in multimeter)
Specifications
