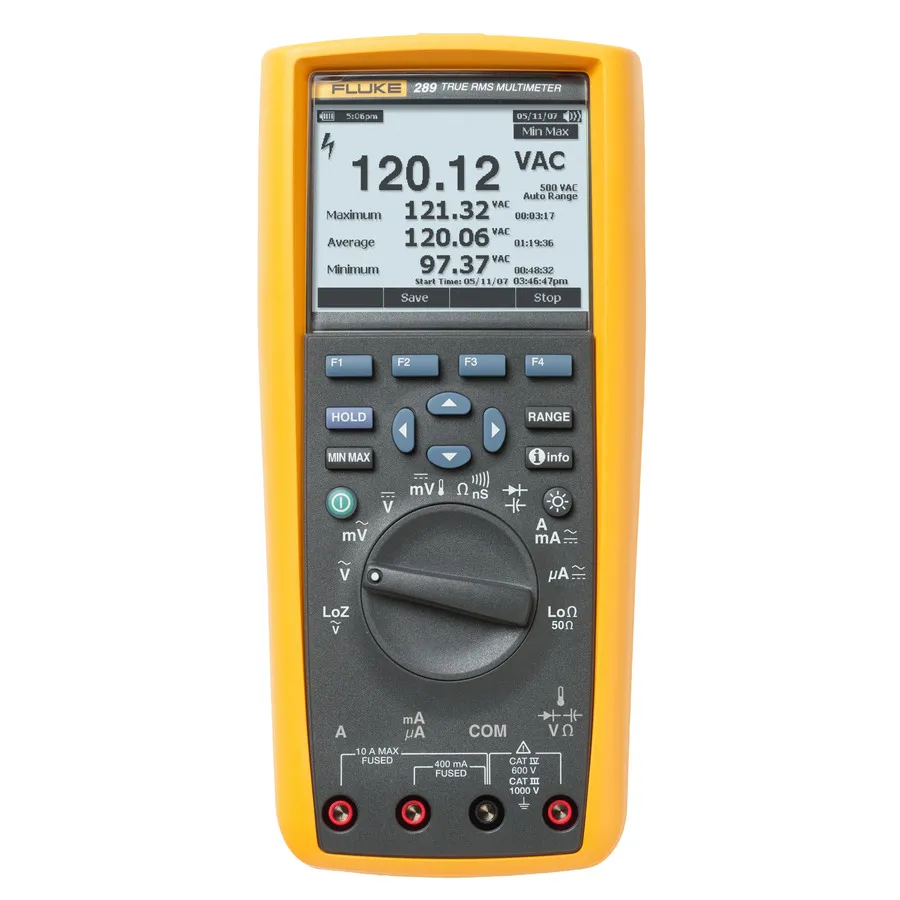

Fluke FLUKE-289 True-RMS Data Logging Multimeter

Overview

The Fluke 289 is a next-generation industrial logging multimeter designed for technicians and engineers solving complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. With true-RMS measurement capability and integrated data logging, the 289 delivers the precision and flexibility needed to minimize downtime and troubleshoot difficult electrical issues.

Key Features

• True-RMS AC voltage and current measurements for accurate readings on complex signals and non-linear loads
• 0.025% basic DC accuracy with manual and automatic ranging
• 100 kHz AC bandwidth to capture high-frequency signals
• Measures up to 10 A continuously (20 A for 30 seconds)
• 50,000 count, 320x240 dot matrix display with white backlight
• Data logging with graphical TrendCapture for analyzing logged sessions on-device
• LoZ (low impedance) voltage function to eliminate false ghost voltage readings
• Low Pass filter for accurate measurements on adjustable-speed motor drives
• 50 ohm range with 1 mΩ resolution for motor winding resistance testing
• Fluke Connect enabled for wireless communication via optional ir3000 FC wireless connector
• ShareLive video call capability for remote team collaboration

Applications

• Industrial maintenance and equipment troubleshooting
• Power distribution system analysis
• Motor and variable frequency drive diagnostics
• Electronics and control system testing
• Unattended system monitoring and trend analysis

Included Accessories

• TL71 test leads
• AC175 alligator clips
• Six AA batteries (installed)
