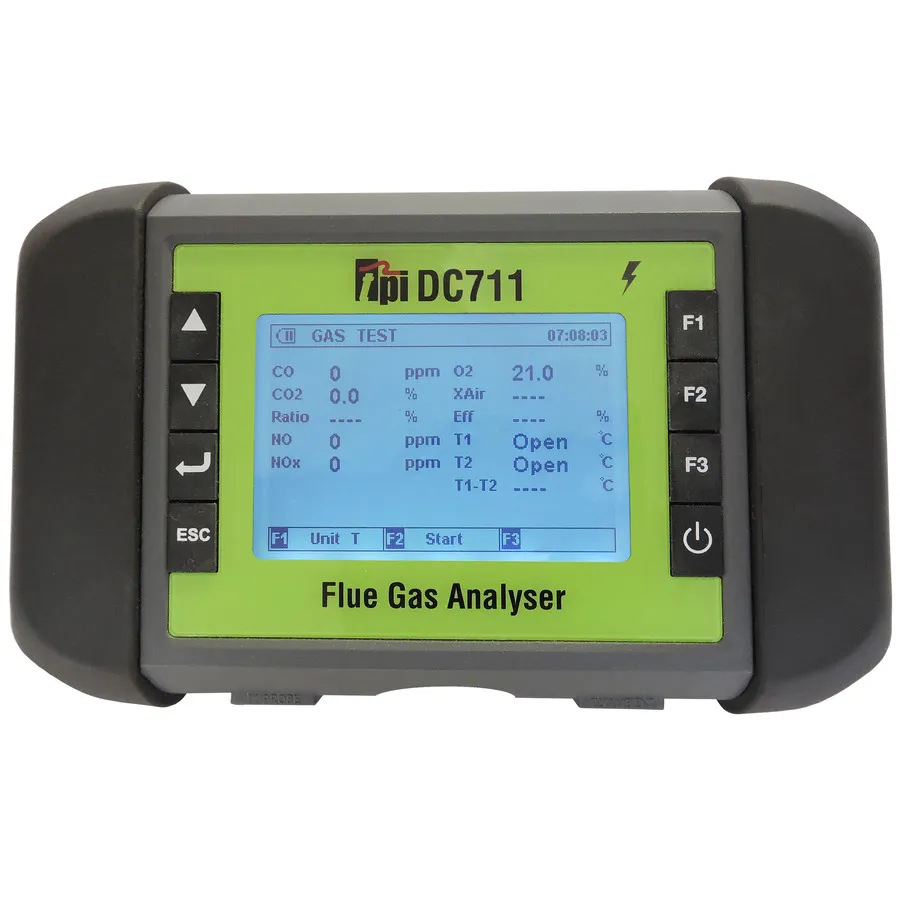

TPI DC711HC Combustion Analyzer
Request a quote
TPI DC711HC combustion analyzer with high CO sensor (up to 9.999%) for enhanced carbon monoxide detection, includes temperature, O2, draft measurement via Bluetooth.
Product details
| Model | DC711HC |
| Manufacturer | TPI |
| Category | Gas Analyzers & Detectors |
| Availability | Made to order |
Description
Overview
The TPI DC711HC is an advanced combustion analyzer with a high CO sensor (0–9.999% CO range) for detecting elevated carbon monoxide levels in heating systems. Designed for HVAC technicians, it measures oxygen (O2), high-concentration carbon monoxide, temperature, and draft pressure, then calculates efficiency and excess air. Remote operation via Bluetooth and the TPI View app enables safe, real-time monitoring away from the heat source.
Key Features
- High CO sensor range (0–9.999% CO) for sensitive carbon monoxide detection
- Measures O2, temperature, pressure/draft with efficiency and excess air calculations
- Bluetooth connectivity with free TPI View app for remote operation and on-site reporting
- Pressure and tightness test feature for system diagnostics
- Differential temperature measurement for flow/return or radiator balancing
- 24-hour real-time clock for accurate documentation
- Clear, easy-to-read display with intuitive menu navigation
- Durable sealed housing with magnetic and hook mounting options
- Upgradeable to include NOx sensor
Applications
- Boiler efficiency testing with emphasis on CO detection and safety verification
- HVAC system diagnostics for residential and commercial heating applications
- Carbon monoxide level assessment in appliances
- Heating system commissioning and maintenance
Included Accessories
- A770 flue probe
- GK11M temperature probe
- A817 charger
- A774 tubing
- A787 carrying case
Specifications
| Series | DC711 Series |
