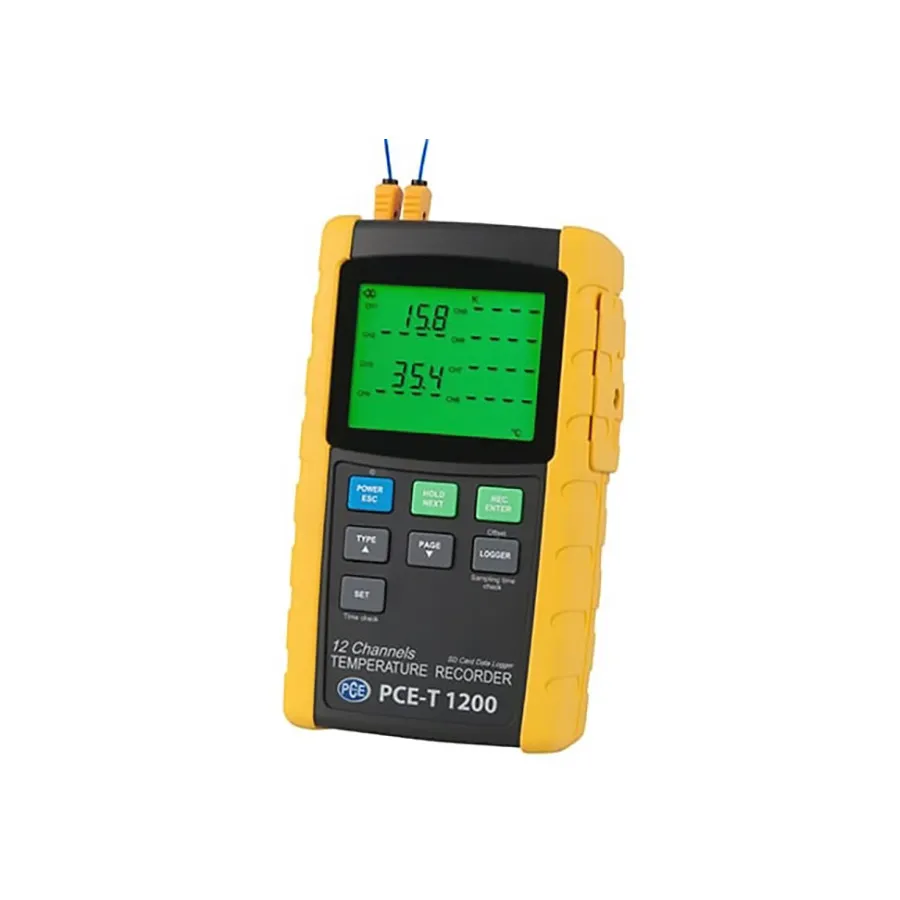

PCE Instruments PCE-T 1200 Digital Thermometer

Overview

The PCE Instruments PCE-T 1200 is a 12-channel datalogging digital thermometer designed for simultaneous temperature monitoring across multiple measurement points. It supports six different thermocouple types (K, J, T, E, R, S), with a measuring range of -50.1 to 1,300°C, making it suitable for applications ranging from cryogenic studies to process monitoring. The device features a large 4.5-inch LCD display with green backlight and can accommodate SD memory cards up to 16 GB.

Key Features

• 12 measurement channels
• Compatible with six thermocouple types: K, J, T, E, R, S
• Measuring range: -50.1 to 1,300°C (-58.1 to 2,372°F)
• 4.5-inch graphic LCD display (82 × 61 mm)
• Adjustable data recording interval (1 second to 3,600 seconds per channel)
• Internal data memory for measurement sessions
• SD card support: up to 16 GB for data storage
• View up to 8 channels simultaneously on display
• High and low alarm limits for each input
• Maximum and minimum value indication
• Automatic temperature compensation (ATC)
• Includes evaluation software and PC connectivity via USB

Applications

• Industrial process monitoring and control
• Research and development temperature profiling
• Food and pharmaceutical temperature tracking during storage and transport
• Oven and furnace temperature monitoring
• Environmental and climate research
• Material testing and thermal analysis

Included Accessories

• Multi-Channel Datalogging Digital Thermometer PCE-T 1200
• 2 × Type K thermocouples (1 meter length)
• 8 × 1.5V AA batteries
• SD memory card
• Carrying case
• Instruction manual
