MadgeTech 900437-00 ThermoVaultX8 Oven Temperature Recorder
Request a quote
MadgeTech ThermoVaultX8 is a thermally insulated, battery-powered oven data logger with 8 thermocouple channels, withstanding up to 662°F for 25 minutes.
Product details
| Model | 900437-00 |
| Manufacturer | MadgeTech |
| Category | Digital Thermometers |
| Availability | Made to order |
Description
Overview

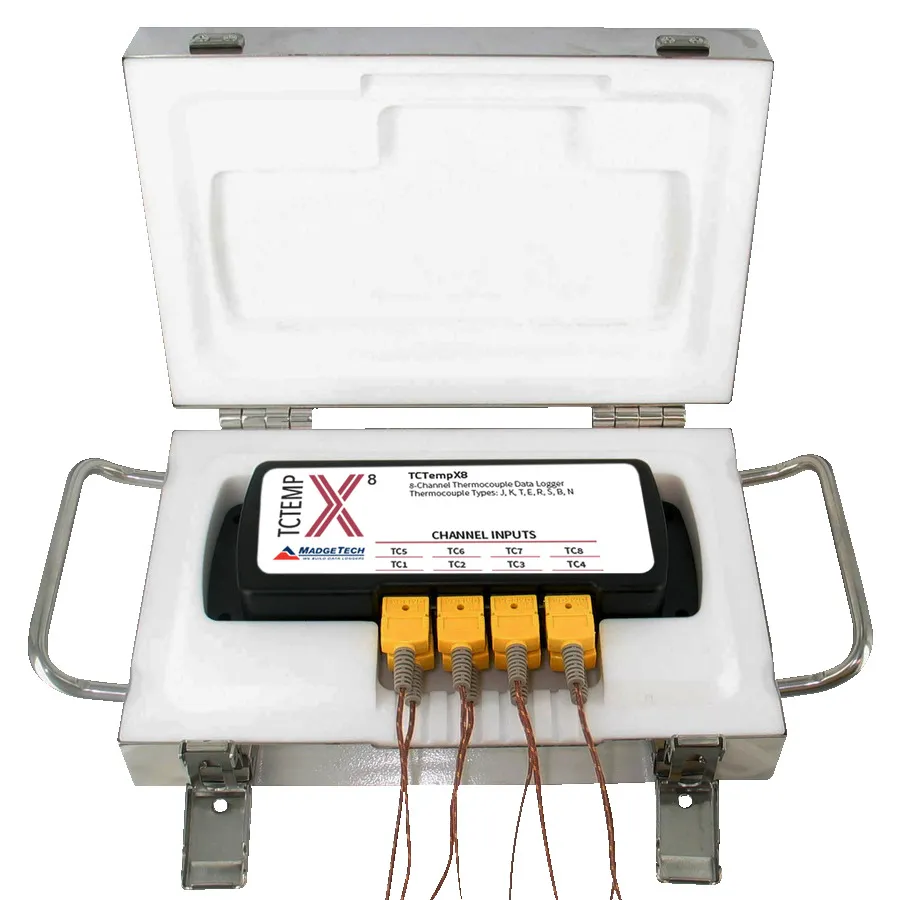

The MadgeTech ThermoVaultX8 is a thermally insulated, battery-powered oven temperature data logger designed for extreme temperature monitoring in industrial ovens. With an 8-channel capacity for thermocouples, it can withstand sustained oven temperatures up to 662°F for up to 25 minutes when properly sealed. The stainless steel enclosure and thermal insulation properties make it ideal for profiling and monitoring production processes.
Key Features
- 8-channel temperature monitoring with Type K thermocouple support
- Withstands oven temperatures up to 662°F for up to 25 minutes
- Stainless steel enclosure with thermal insulation
- Programmable start time and user-friendly software interface
- Automatic thermocouple linearization
- Data export to Excel for advanced analysis
- Displays measurements in Celsius, Fahrenheit, Kelvin, or Rankine
- Calculates Mean Kinetic Temperature (MKT) for validation
Applications
- Oven temperature profiling and process optimization
- Powder coating cure ovens
- Wet coating cure ovens
- Batch ovens and conveyor ovens
- HACCP program implementation
- Process control validation and documentation
Included Accessories
- Type K thermocouples
- Power supply
Specifications
| Type | Thermocouple Data Loggers |
| Battery Life | 18 mo. |
| Battery Type | 9 V lithium |
| Includes | (1) TCTempX: Thermocouple-Based Temperature Data Logger, (1) Thermally Insulated Enclosure, (1) Type K Thermocouple |
