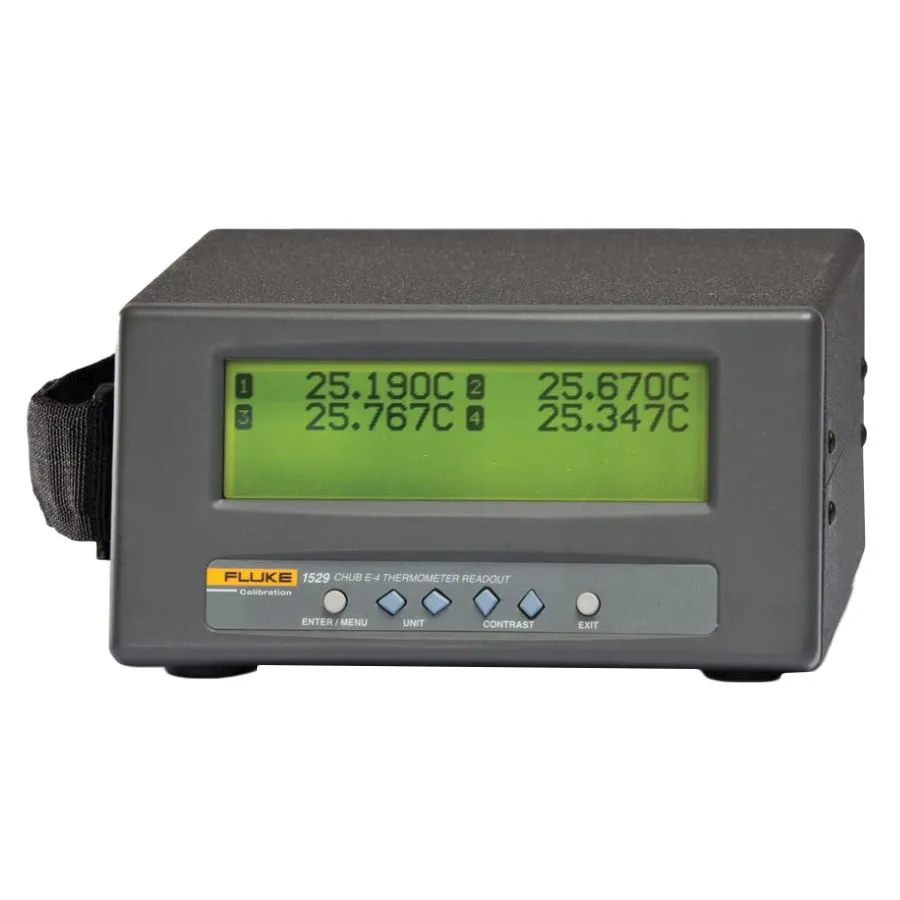

Fluke 1529-R-156 Reference Thermometer
Request a quote
Fluke 1529-R-156 is a four-channel reference thermometer with dedicated RTD and thermistor inputs, offering ±0.004°C accuracy and data logging up to 8,000 readings.
Product details
| Model | 1529-R-156 |
| Manufacturer | Fluke |
| Category | Digital Thermometers |
| Availability | Made to order |
Description
Overview
The Fluke 1529-R-156 Chub-E4 is a four-channel reference thermometer specifically configured for PRT and thermistor measurement. With four dedicated RTD and resistance inputs, the 1529-R-156 is ideal for applications requiring multiple precision temperature sensors without thermocouple capability.
Key Features
- Four independent channels for RTD (PRT) and thermistor measurement
- High accuracy: ±0.004°C at -100°C and ±0.009°C at 100°C for PRTs
- Support for 100Ω, 25Ω, and 10Ω RTDs with ITS-90, IEC-751, or Callendar-Van Dusen conversion
- Flexible data logging: up to 8,000 readings with date and time stamps
- Advanced display with user-selectable data fields and adjustable resolution
- Battery-powered or AC/DC operation with 8-hour battery life
- Optional PC integration for real-time data logging via LogWare II software
- Display in °C, °F, K, or ohms
- Compact benchtop or rack-mountable design
Applications
- Multi-point RTD calibration and verification
- Laboratory temperature measurement and monitoring
- Process temperature control validation
- Environmental chamber and oven calibration
- Automated calibration system integration
Specifications
| Channels | 4 (RTD/Thermistor only) |
| Measurement Types | 4-wire RTD, Thermistor, Resistance |
| RTD Accuracy (at -100°C) | ±0.004°C |
| RTD Accuracy (at 100°C) | ±0.009°C |
| Data Logging Capacity | 8,000 readings with date and time stamps |
| Display Modes | °C, °F, K, Ω |
| Power Supply | AC 100-240V, DC 12-16V, or NiMH battery |
| Battery Life | 8 hours continuous operation |
| Communications | RS-232 standard, IEEE-488 optional |
