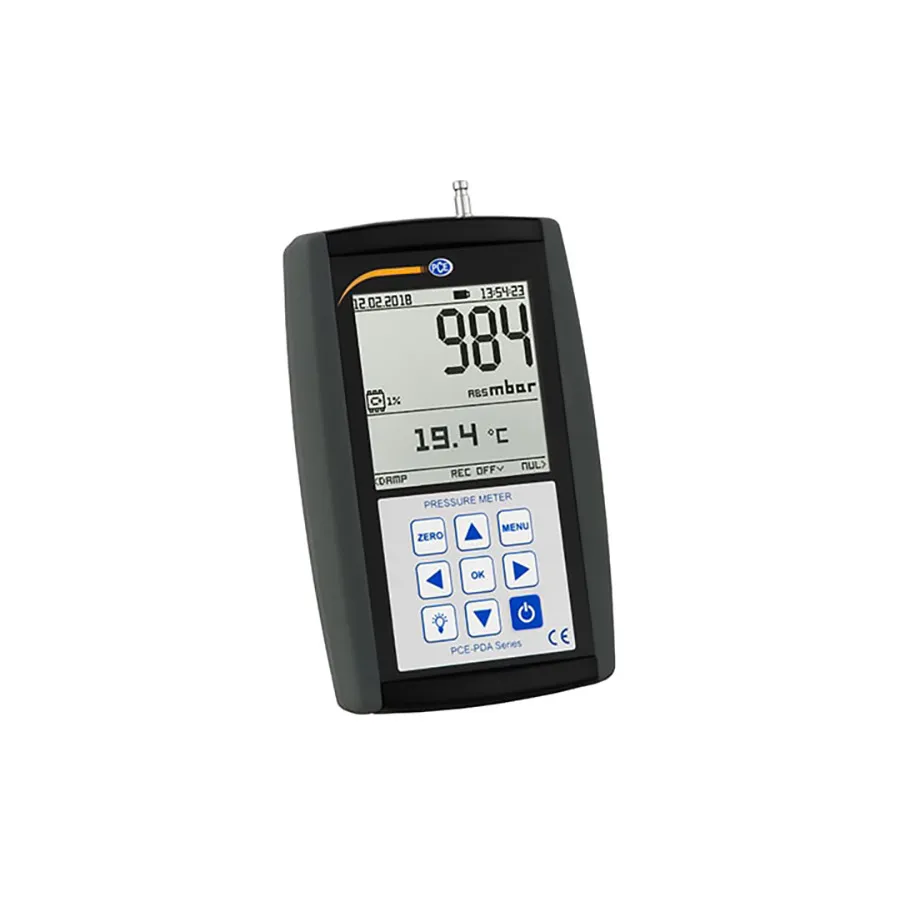

PCE Instruments PCE-PDA A100L Manometer
Request a quote
PCE Instruments PCE-PDA A100L absolute pressure manometer with 0–200 kPa range, data logging, and 16+ measurement units.
Product details
| Model | PCE-PDA A100L |
| Manufacturer | PCE Instruments |
| Category | Digital Pressure Gauges |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-PDA A100L is an absolute pressure manometer designed for atmospheric pressure measurement from 0 to 200 kPa. This professional-grade instrument is suitable for mobile applications in industry and craft sectors, offering precise pressure monitoring with integrated data logging and temperature measurement. The robust design and user-friendly display make it ideal for field testing and documentation.
Key Features
- Absolute pressure range: 0–200 kPa
- Temperature measurement: 0–50°C (32–122°F)
- Data logger with 1024 memory slots and adjustable recording intervals (1 second to 24 hours)
- 16+ measurement units: Pa, hPa, kPa, MPa, mbar, bar, ATM, kg/cm², mmH₂O, cmH₂O, inH₂O, mmHg, inHg, Torr, PSI, PSF
- High-precision measuring mode
- Min Max Hold function for peak value tracking
- Measured value smoothing for stable readings
- Graphic LCD display with backlight
- Internal sensor with plug-in nipple for air and liquid pressure
- Quick coupling connection
- Battery and USB powered operation
Applications
- Atmospheric pressure and altitude monitoring
- Industrial pressure systems and equipment testing
- Mobile field applications in HVAC and pneumatics
- Environmental and weather-related monitoring
- Data acquisition for compliance and quality documentation
Included Accessories
- PCE-PDA A100L Manometer
- 2× 1.2V AA NiMh rechargeable batteries
- USB power adapter
- Micro USB cable
- Instruction manual
Specifications
| Series | PCE-PDA Series |
| Battery Type | 1.5V AA / 1.2V NimH |
| Height | 5.70" |
| IO Interface | Micro USB, USB |
| IP Rating | IP41 |
| Length | 3.30" |
| Memory | Internal Memory |
| Power Supply | Battery Powered |
| Safety Rating | CE, FCC, RoHS |
| Style | Digital |
| Units of Measurement | Pa, hPa, kPa, MPa, mbar, bar, ATM, kg / cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF |
| Warranty | 2 Years |
| Width | 1.40" |
