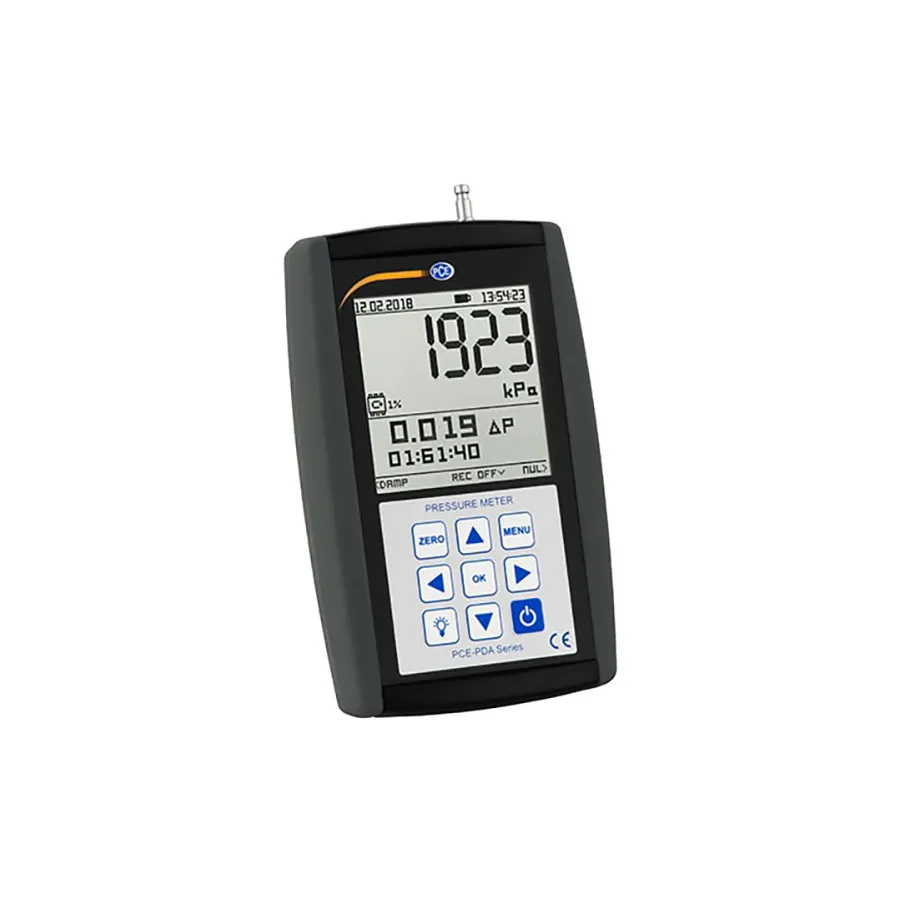

PCE Instruments PCE-PDA 1000L Manometer
Request a quote
PCE-PDA 1000L relative pressure manometer measures -100 to 2000 kPa with data logging, 16+ pressure units and integrated temperature sensor for industrial applications.
Product details
| Model | PCE-PDA 1000L |
| Manufacturer | PCE Instruments |
| Category | Digital Pressure Gauges |
| Availability | Made to order |
Description
Overview
The PCE-PDA 1000L is a relative pressure manometer designed for measuring pressure on machines and systems within the range of -100 to 2000 kPa. This instrument provides multiple measurement functions and pressure units for versatile industrial applications. It features an integrated temperature sensor, data logger capability, and battery-powered operation with USB charging.
Key Features
- Relative pressure measurement range: -100 to 2000 kPa
- Temperature measurement range: 0–50°C (32–122°F)
- Data logger with 1024 memory slots and selectable recording intervals (1 s to 24 h)
- Over 16 pressure measurement units: Pa, hPa, kPa, MPa, mbar, bar, ATM, kg/cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF
- Min/Max hold function to display maximum or minimum measured values
- High-resolution measuring mode with adjustable resolution
- Leakage test capability
- Speed/flow measurement with root function
- Graphic LCD display with backlight
- 2x AA battery operation with USB charging via micro-USB port
Applications
- Machine and system pressure monitoring
- Pressure line leak testing
- Flow velocity and volume flow measurement with optional Pitot tubes
- Industrial pressure system diagnostics
Included Accessories
- 2x 1.2V NiMh batteries
- USB power adapter
- Micro USB cable
- Instruction manual
Specifications
| Series | PCE-PDA Series |
| Battery Type | 1.2V NimH |
| Height | 5.70" |
| IO Interface | Micro USB |
| IP Rating | IP41 |
| Length | 3.30" |
| Memory | Internal Memory |
| Power Supply | Battery Powered |
| Safety Rating | CE, FCC, RoHS |
| Style | Digital |
| Units of Measurement | Pa, hPa, kPa, MPa, mbar, bar, ATM, kg / cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF |
| Warranty | 2 Years |
| Width | 1.40" |
