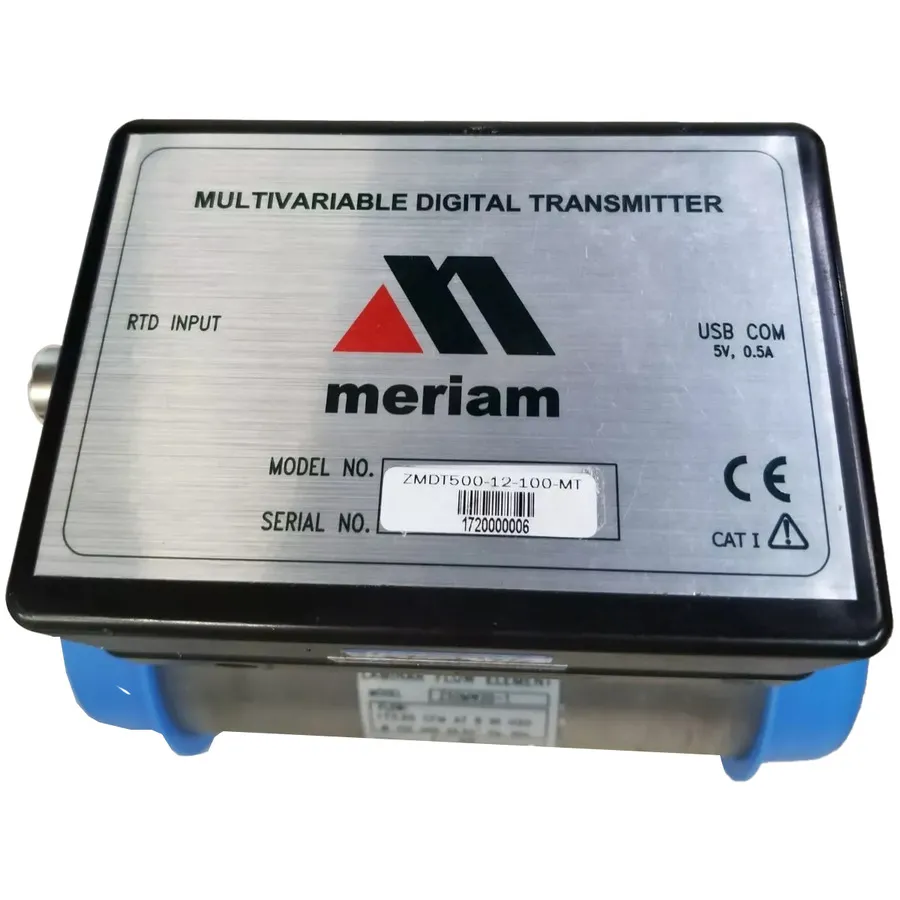

Meriam ZMDT500-12-100-MT Multivariable Digital Transmitter
Request a quote
Meriam ZMDT500-12-100-MT is a multivariable digital transmitter for flow measurement with Laminar Flow Elements, offering ±0.8% accuracy and real-time data logging.
Product details
| Model | ZMDT500-12-100-MT |
| Manufacturer | Meriam |
| Category | Digital Pressure Gauges |
| Availability | Made to order |
Description
Overview
The Meriam MDT500 Multivariable Digital Transmitter is a complete flow solution designed for use with Meriam Laminar Flow Elements (LFE) to measure air and gas flow with high accuracy. It measures differential pressure while automatically compensating for variations in static pressure and temperature, providing reliable flow rate calculations with minimal drift over time and temperature.
Key Features
- Multivariable measurement: differential pressure, static pressure, and temperature compensation
- System accuracy of ±0.8% of calculated flow rate
- Fast response time of less than 0.1 second
- Wide flow range capability while maintaining accuracy
- No drift over time and temperature
- LabVIEW drivers and Software Development Kit included
- Type B female connector (USB) with circular locking connector for RTD probe
- Data logging capability
Applications
- Air and gas flow measurement in HVAC systems
- Process flow monitoring and control
- Laboratory and research applications
Specifications
| Series | MDT500 Series |
| Accuracy | Class A Tolerance Class (per IEC 60751) |
| Applications | Combustion air flow to engines, Critical gas flow measurements, Leak detection and Calibration reference standards |
| Certificate of Calibration | Yes |
| Compatibility | Compatible with All Meriam Laminar Flow Element Models Including |
| Connection | 5 meter M12, molded cordset |
| Data Logging | Yes |
| Dimensions | 2.6 x 3.6 x 5.6 in. |
| Drop Protection | IP40 |
| Interface | Analog Input And USB |
| Material | 316L stainless steel sheath and housing |
| Media Type | Clean, dry, non-corrosive gases only (brass, 316 SS, Viton®, Silicon gel) and Media compatible with 316 SS |
| Mounting Type | Laminar Flow Element mounting hardware provided. |
| Operating Temperature | -20 to 50°C |
| Power Requirements | high power (500 mA) USB port or USB hub (Computer USB) Note: Computer USB ports and USB hubs with power adapters that are typically high power. |
| Pressure Rating | 7 psi |
| Probe Length | 6" |
| Product Type | Digital Transmitters |
| Storage Temperature | –40 to 85°C |
