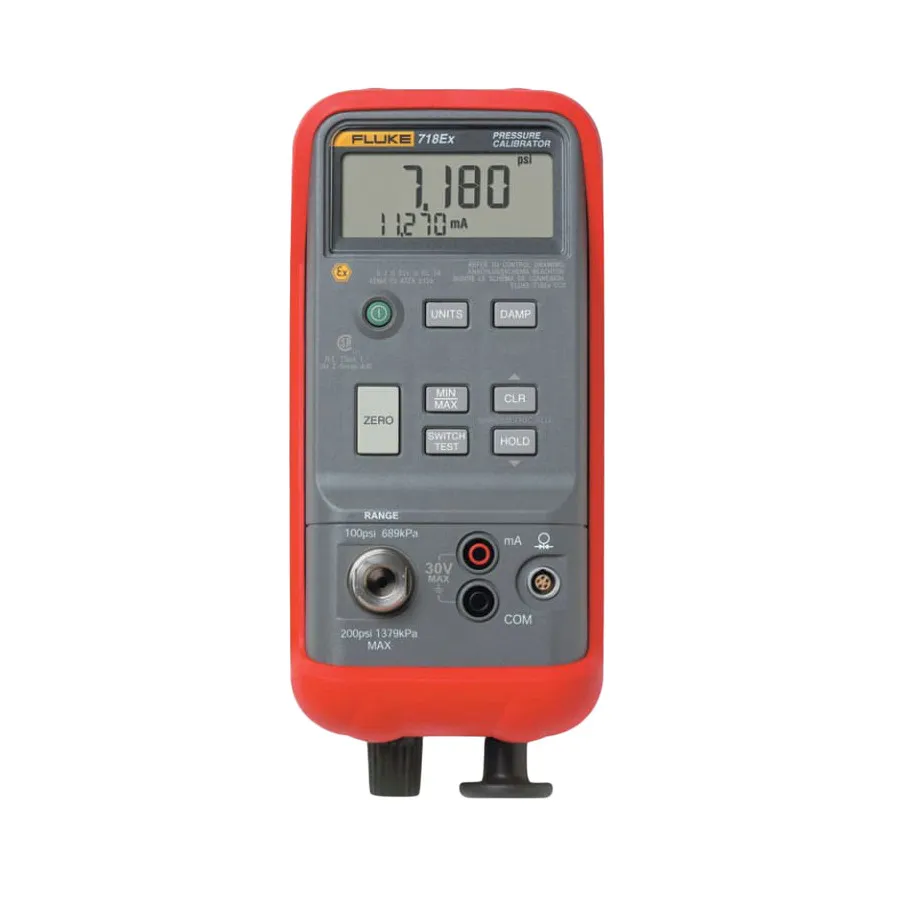

Fluke FLUKE-718EX 100 Intrinsically Safe Pressure Calibrator
Request a quote
Fluke FLUKE-718EX 100 is an intrinsically safe pressure calibrator with 0.05% accuracy, designed for hazardous locations, featuring simultaneous pressure and current measurement.
Product details
| Model | FLUKE-718EX 100 |
| Manufacturer | Fluke |
| Category | Digital Pressure Gauges |
| Availability | Made to order |
Description
Overview
The Fluke FLUKE-718EX 100 Intrinsically Safe Pressure Calibrator is designed to calibrate pressure-to-current (P/I) transmitters with precision. The device measures pressure through a 1/8-inch NPT pressure fitting with an internal pressure sensor, and can also utilize Fluke 750PEx Series Pressure Modules. It measures current up to 24 mA and simultaneously displays both pressure and current measurements for comprehensive monitoring.
Key Features
- ATEX II 1G Ex ia IIC T4 compliance for hazardous locations
- I.S. Class I, Division 1 compliance
- Built-in pressure/vacuum hand pump with vernier and bleed valve
- Pressure measurement to 0.05% of full span with internal sensor
- Current measurement accuracy of 0.02% with 0.001 mA resolution
- 5-digit pressure readings in multiple units (psi, bar, kPa, mbar, inHg, mmHg, and more)
- Pressure switch test function
- Min/Max/Hold functions
- Simple push-button user interface
Applications
- Calibration of pressure transmitters in hazardous environments
- Maintenance of intrinsically safe pressure instruments
- Pressure switch testing in classified areas
- Current measurement and verification
Included Accessories
- FLUKE-718EX 100 Intrinsically Safe Pressure Calibrator
- Protective holster
- TL75 test leads
- AC72 test clips
- CD with user manuals in 14 languages
- Fluke 718Ex CCD control drawing
Specifications
| Series | 718EX Series |
