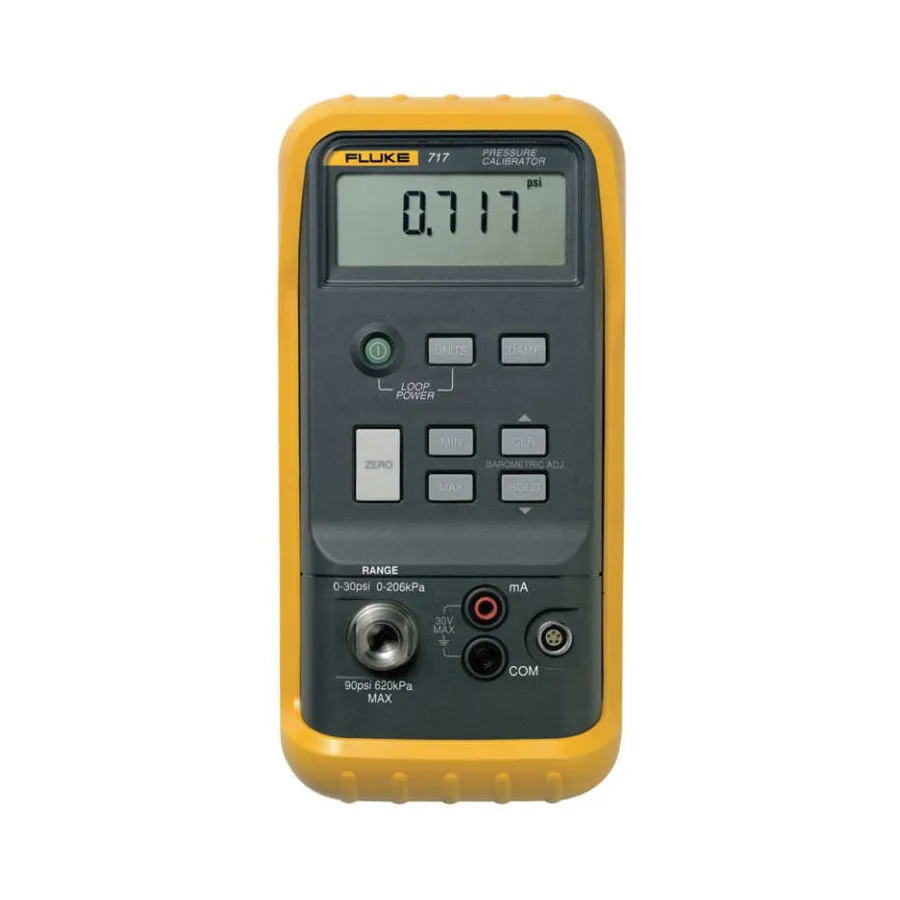

Fluke FLUKE-717 1500G Pressure Calibrator
Request a quote
Fluke FLUKE-717 1500G is a portable pressure calibrator measuring 0 to 1500 psi (0 to 103.4 bar) with 0.05% accuracy. Ideal for high-pressure applications.
Product details
| Model | FLUKE-717 1500G |
| Manufacturer | Fluke |
| Category | Digital Pressure Gauges |
| Availability | Made to order |
Description
Overview
The Fluke FLUKE-717 1500G is a portable pressure calibrator designed for high-pressure applications. It measures gauge and absolute pressure ranging from 0 to 1500 psi (0 to 103.4 bar, 0 to 10342 kPa) with 0.05% accuracy. The compact, lightweight design enables easy field service and calibration work at job sites.
Key Features
- Pressure measurement with 0.05% accuracy using internal sensor
- Simultaneous pressure and milliamp measurement for P/I calibration
- Pressure switch test function to capture set, reset, and deadband values
- Source 24V loop power while measuring current with 0.015% accuracy
- 1/8 NPT female pressure fitting for standard connections
- Selectable engineering units for flexible display options
- Zero, min, max, and hold functions for convenient readings
- Error% calculation for quick pass-fail decisions
- Long-lasting battery life with quick-change battery access
Applications
- Calibrating high-pressure transmitters and transducers
- Testing pressure switches in high-pressure systems
- Industrial pressure system verification and maintenance
- Process control system validation
Specifications
| Pressure Range | 0 to 1500 psi (0 to 103.4 bar, 0 to 10342 kPa) |
| Accuracy | 0.05% of full scale |
| Current Measurement | 0.001 mA resolution, 0.015% accuracy |
| Current Source | 24V loop power |
| Pressure Connection | 1/8 NPT female |
| Compatible Media | Non-corrosive gases and liquids |
| Display Units | Eleven different engineering units |
| Functions | Zero, min, max, hold, switch test, error% calculation |
| Battery | 9V alkaline, long-lasting |
| Environmental | EMI tolerant, dust and splash resistant |
