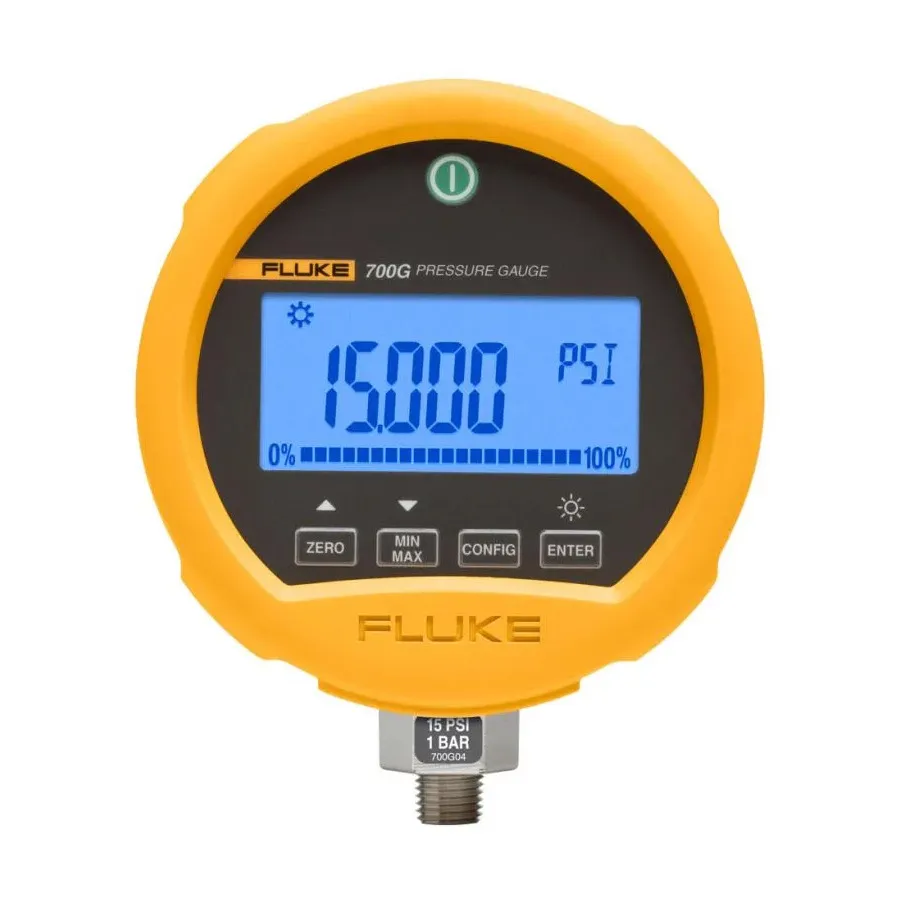

Fluke FLUKE-700G30 Pressure Gauge Calibrator
Request a quote
Fluke FLUKE-700G30 is a high-accuracy digital pressure gauge calibrator for hydraulic and pneumatic testing, featuring 0.04% positive pressure accuracy and IP-67 sealed enclosure rated to 5000 psi.
Product details
| Model | FLUKE-700G30 |
| Manufacturer | Fluke |
| Category | Digital Pressure Gauges |
| Availability | Made to order |
Description
Overview
The Fluke FLUKE-700G30 is a digital pressure gauge calibrator combining high measurement accuracy with rugged construction for hydraulic and pneumatic testing. Designed for use as a portable calibration reference or standalone pressure measurement instrument, it is equally suitable for clean laboratory environments and harsh industrial settings with pressure demands up to 5000 psi.
Key Features
- High-accuracy digital pressure measurement with 5-1/2 digit display and bar graph
- Measurement range from -14 to 5000 psi with 0.04% positive pressure accuracy
- CSA Class 1, Division 2 and ATEX II 3 G hazardous location approval
- IP-67 sealed enclosure rated for harsh environmental conditions
- Data logging up to 8,493 measurements (requires optional software)
- Configurable measurement functions: sample rate, damping, auto-shutoff, units selection
- Three-year warranty
Applications
- Pressure transducer and gauge calibration verification
- High-pressure hydraulic system testing and commissioning
- Field pressure measurement in industrial environments
- Hazardous location pressure monitoring and control
Included Accessories
- CD-ROM manual in 14 languages
- Traceable calibration certificate
- 1/4-inch NPT to 1/4-inch ISO adapter
Specifications
| Series | 700G Series |
